ATL 5G R16

ATL 5G R16 (ATLGM&RG520F-EU)

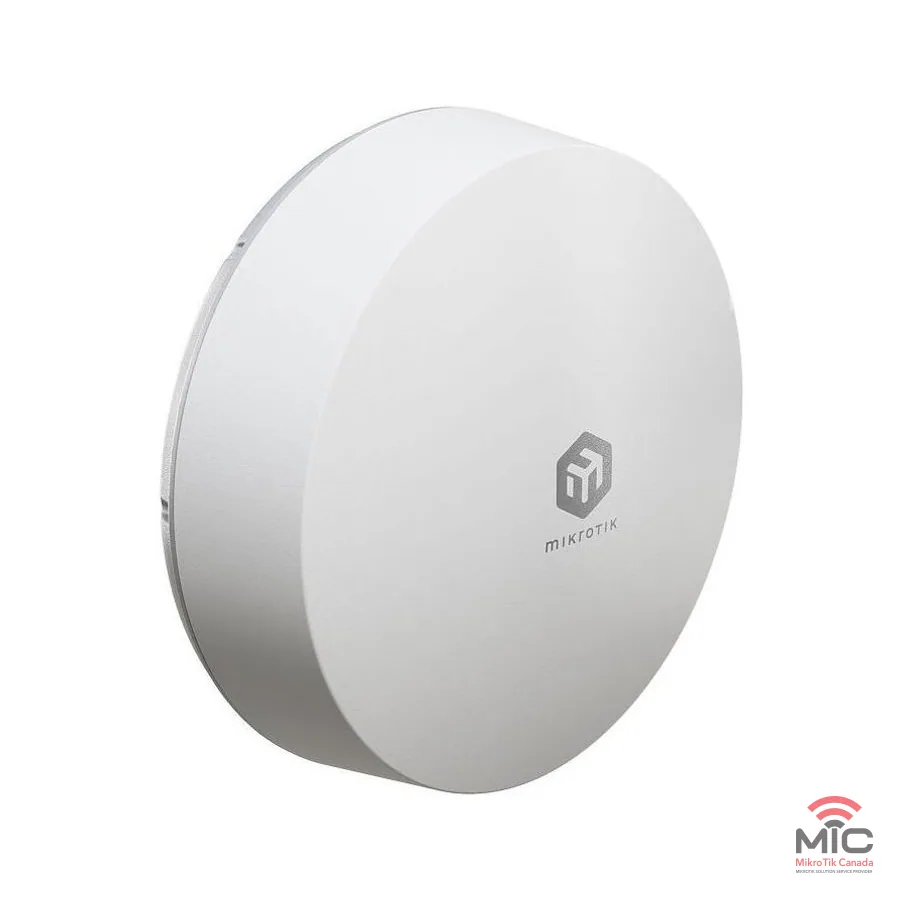

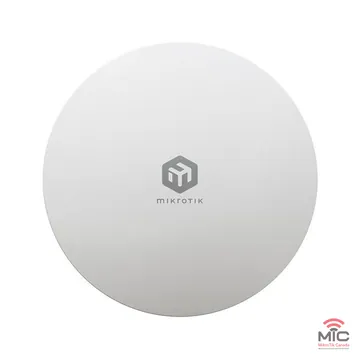

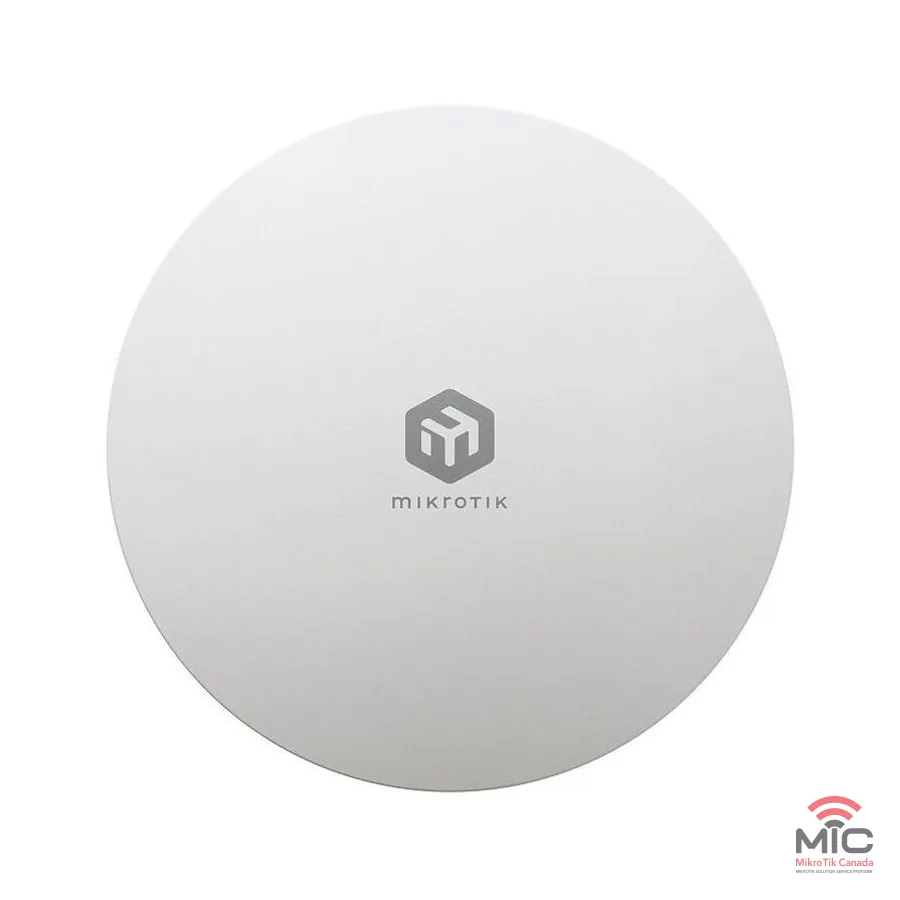

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: ATLGM&RG520F-EU

USD 349.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

LTE/5G products: Gigabit Ethernet ports, PoE input, LTE.

Search the MikroTik Canada store

Availability: see the store. This product was not found in the MikroTik Canada store by its exact product code.

Manufacturer page

Specifications

ItemValue
ArchitectureARM 64bit
CPU88F3720
CPU core count2
CPU nominal frequency800 MHz
CPU Threads count2
RouterOS license3
Operating SystemRouterOS v7
Size of RAM512 MB
Storage size32 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Mode buttonYes
eSIMYes
CertificationCE, EAC, ROHS
IP66

Powering

ItemValue
Number of DC inputs1 (PoE-IN)
Max power consumption10 W
Max power consumption without attachments10 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage12-56 V

Ethernet

ItemValue
10/100/1000 Ethernet ports1
Number of 1G Ethernet ports with Reverse PoE (PoE-in)1

Peripherals

ItemValue
Number of SIM slots1 Modem (Micro SIM)
Number of M.2 slots1

Mobile

ItemValue
3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands1 (2100MHz) 5 (850MHz) 8 (900MHz)
LTE Category20 (2.0 Gbps Downlink, 200 Mbps Uplink)
MIMO DL4x4
LTE FDD bands1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz) 32 (1500 MHz)
LTE TDD bands38 (2600MHz) 40 (2300MHz) 41 (2500MHz) 42 (3500MHz) 43 (3700 MHz)
5G NSA FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
5G NSA TDD bands38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz)
5G SA FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
5G SA TDD bands38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz)
TAC86945405

Benchmarks

Ethernet test results: 88F3720 1G one port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)81.3987.3235962.6789.9404.4
Bridging25 bridge filter rules81.3987.3221.3906.4678.3347.3
Routingnone (fast path)81.3987.3235962.6790.4404.7
Routing25 simple queues81.3987.3235962.6450230.4
Routing25 ip filter rules81.3987.3219.8900.3219.5112.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 24V 0.8A power adapter
  • Gigabit PoE injector
  • Hose clamp 2

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Other documents

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
