hAP ax²

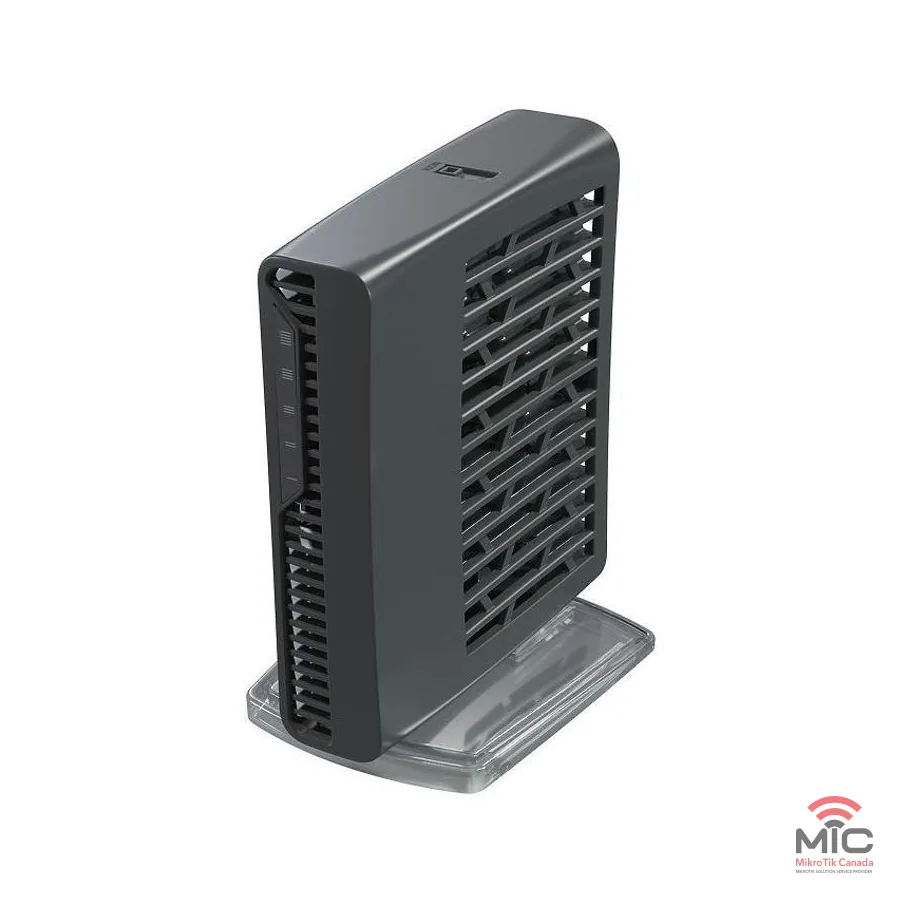

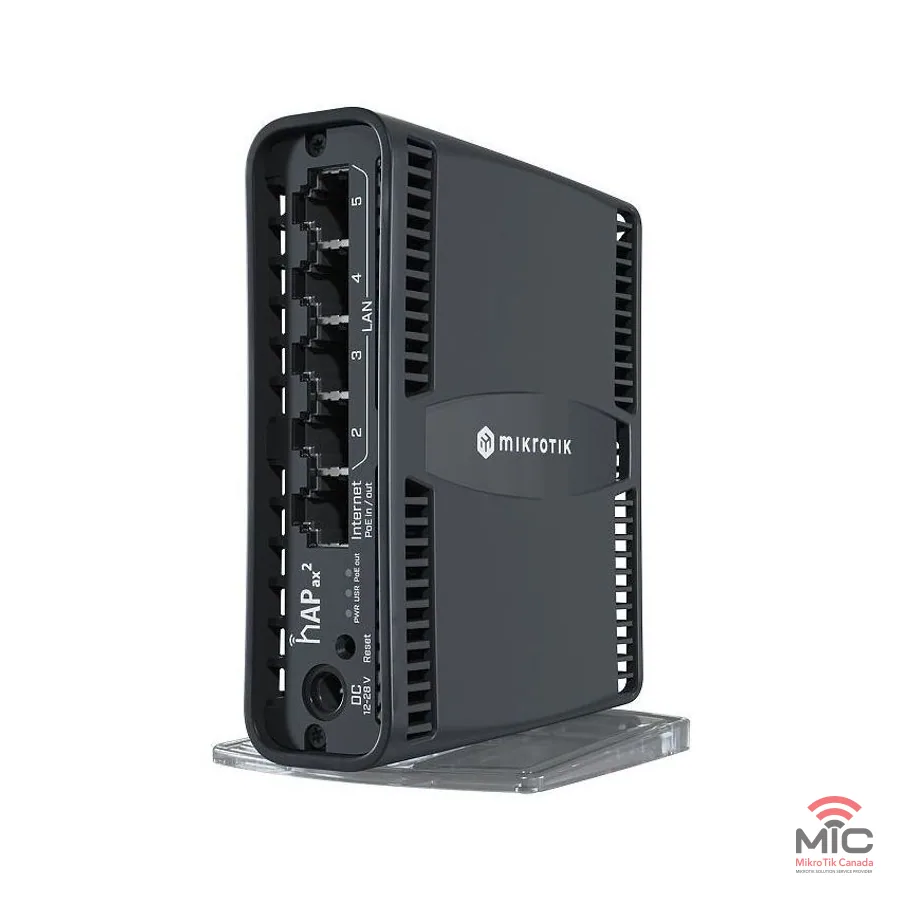

hAP ax² (C52iG-5HaxD2HaxD-TC)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: C52iG-5HaxD2HaxD-TC

USD 99.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 5 x 1 Gbit/s; 4-core IPQ-6010; 1 GB RAM; PoE output listed.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Featured in Router and firewall.

Specifications

ItemValue
ArchitectureARM 64bit
CPUIPQ-6010
CPU core count4
CPU nominal frequency864 MHz
CPU Threads count4
Switch chip modelIPQ-6010
RouterOS license4
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 50°C
CertificationCE, FCC, IC, EAC, ROHS
IP20
CPU temperature monitorYes
Mode buttonYes

Powering

ItemValue
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption27 W
Max power consumption without attachments12 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage18-28 V
PoE-out portsEther 1
PoE outPassive PoE
Low voltage PoE-Out current limit600 mA
Max total out (A)0.6 A
Total output current0.6
Total output power16.8W

Ethernet

ItemValue
10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1

Wireless

ItemValue
Wireless 2.4 GHz Max data rate574 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz4
Wireless 2.4 GHz chip modelQCN-5022
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz4.5
Wireless 5 GHz chip modelQCN-5052
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX1800

Benchmarks

Ethernet test results: IPQ-6010 all port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)216.62630.4591.52422.81366.2743.2
Bridging25 bridge filter rules2162622.7342.51402.7347188.8
Routingnone (fast path)216.62630.4590.92420.31212.6659.7
Routing25 simple queues215.72620327.61341.8350.3190.6
Routing25 ip filter rules216.22625.1222.9912.9225.1122.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: IPQ-6010 IPsec throughput

ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA178.4878.191.9376.493.647.9
256 tunnelsAES-128-CBC + SHA150.1561.155.5227.358.630
256 tunnelsAES-128-CBC + SHA2565056055.4226.958.630
256 tunnelsAES-256-CBC + SHA149.4553.354.8224.558.630
256 tunnelsAES-256-CBC + SHA25649.4553.355225.358.630

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • hAP case base
  • K-47 wall mount set
  • 24V 1.2A power supply (straight plug)

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
