hAP ax³

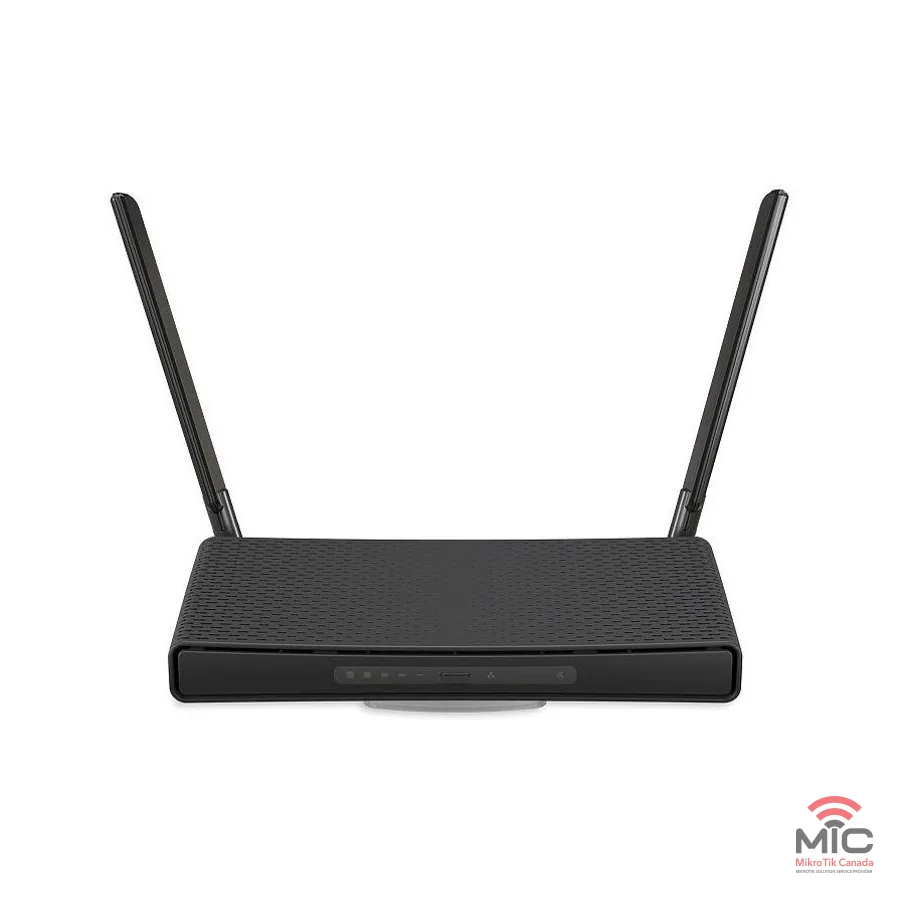

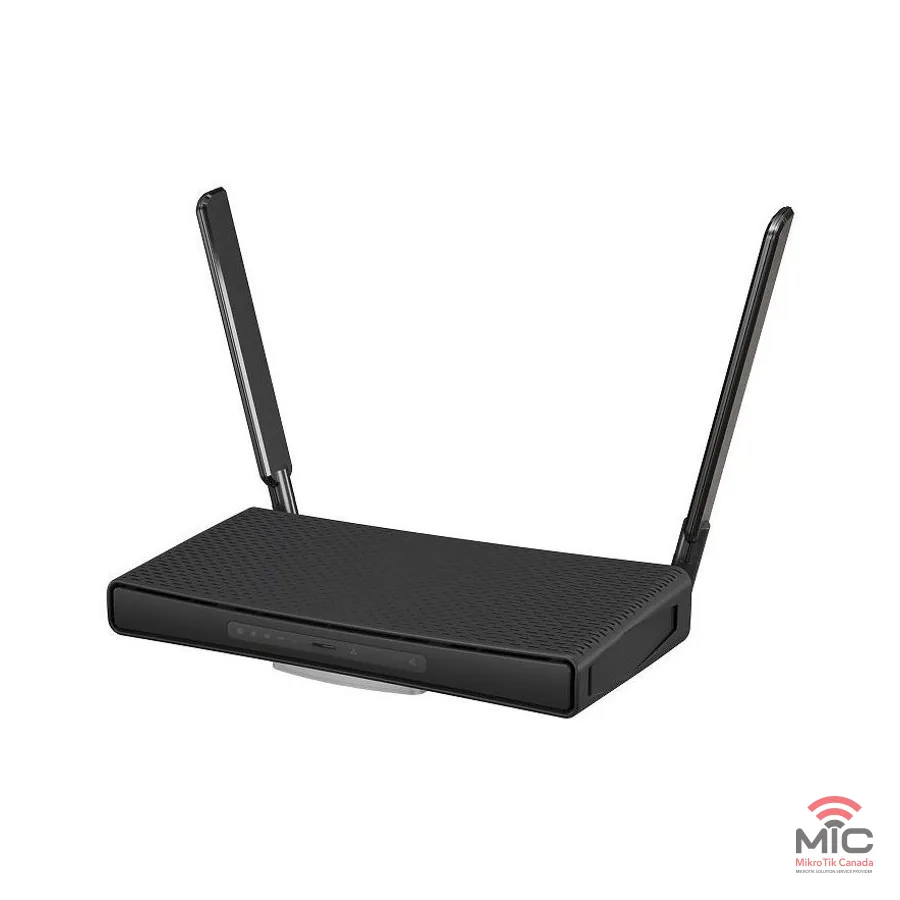

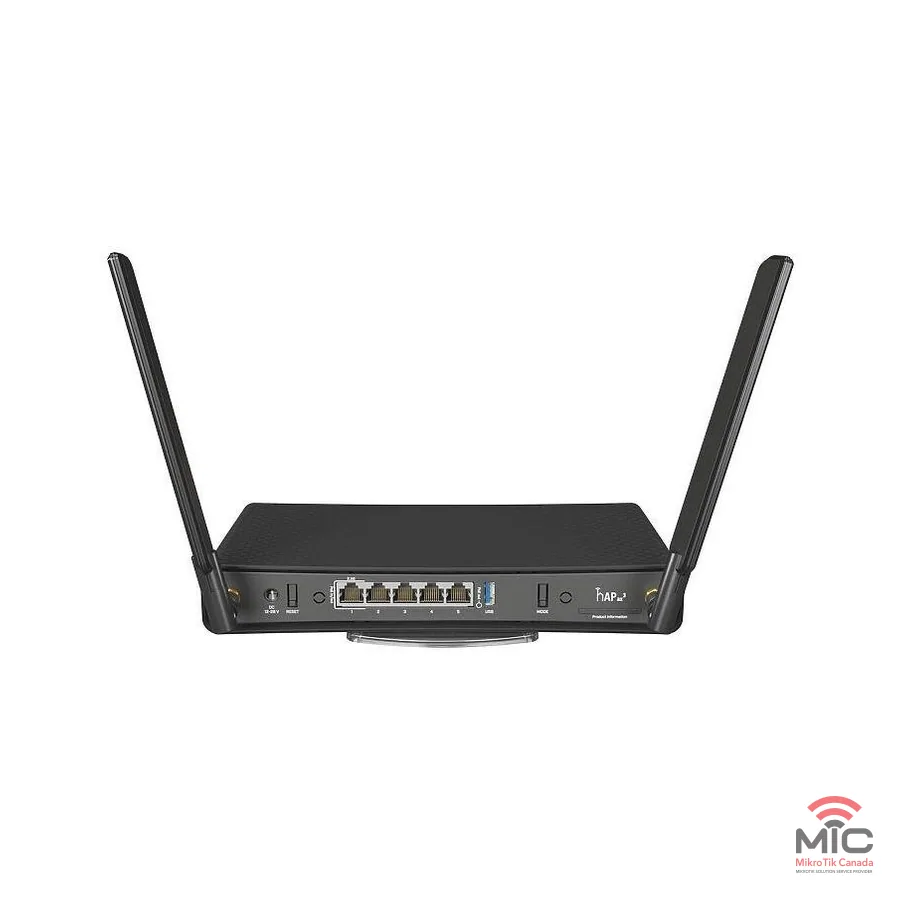

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: C53UiG+5HPaxD2HPaxD
Wireless for home and office: Gigabit Ethernet ports, 2.5 Gbit/s Ethernet ports, PoE output.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 - 1800) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-6010 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| CPU temperature monitor | Yes |
| Mode button | Yes |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 15 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
| PoE-out ports | Ether 1 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 0.625 A |
| Max total out (A) | 0.625 A |
| Total output current | 0.625 |
| Total output power | 15 |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 4 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of 2.5G Ethernet ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 3.3 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
Benchmarks
Ethernet test results: IPQ-6010 All port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 219.2 | 2662 | 593.5 | 2430.9 | 1509.2 | 821 |
| Bridging | 25 bridge filter rules | 218.1 | 2649.1 | 460.3 | 1885.3 | 468.5 | 254.9 |
| Routing | none (fast path) | 218.9 | 2657.8 | 596.6 | 2443.6 | 1228.3 | 668.2 |
| Routing | 25 simple queues | 218.5 | 2653.5 | 463.4 | 1898 | 468.5 | 254.9 |
| Routing | 25 ip filter rules | 215.3 | 2614.4 | 279.6 | 1145.2 | 281.8 | 153.3 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: IPQ-6010 IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 78.4 | 878.1 | 91.9 | 376.4 | 93.6 | 47.9 |
| 256 tunnels | AES-128-CBC + SHA1 | 50.1 | 561.1 | 55.5 | 227.3 | 58.6 | 30 |
| 256 tunnels | AES-128-CBC + SHA256 | 50 | 560 | 55.4 | 226.9 | 58.6 | 30 |
| 256 tunnels | AES-256-CBC + SHA1 | 49.4 | 553.3 | 54.8 | 224.5 | 58.6 | 30 |
| 256 tunnels | AES-256-CBC + SHA256 | 49.4 | 553.3 | 55 | 225.3 | 58.6 | 30 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 1.5A power adapter
- HGO indoor antenna kit
- K-47 wall mount set
- hAP case base
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Dimensions (MikroTik)
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- FCC Grant of Certification (2.4GHz) (MikroTik)
- FCC Grant of Certification (5GHz) (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
