CCR2004-16G-2S+PC (CCR2004-16G-2S+PC)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: CCR2004-16G-2S+PC

USD 465.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.

CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 16 x 1 Gbit/s, 2 x SFP+ (10 Gbit/s); 4-core AL32400; 4 GB RAM.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Featured in Router and firewall.

Specifications

Specifications for CCR2004-16G-2S+PC
Item	Value
Architecture	ARM 64bit
CPU	AL32400
CPU core count	4
CPU nominal frequency	1200 MHz
CPU Threads count	4
Switch chip model	88E6191
Dimensions	272 x 195 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification	CE, EAC, ROHS
IP	IP 20

Powering

Powering for CCR2004-16G-2S+PC
Item	Value
Number of DC inputs	2 (DC jack, 2-pin terminal)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Max power consumption	36 W
Max power consumption without attachments	30 W
Cooling type	Passive

Ethernet

Ethernet for CCR2004-16G-2S+PC
Item	Value
10/100/1000 Ethernet ports	16

Fibre

Fibre for CCR2004-16G-2S+PC
Item	Value
SFP+ ports	2

Peripherals

Peripherals for CCR2004-16G-2S+PC
Item	Value
Serial console port	RJ45
Number of USB ports	1

Benchmarks

Ethernet test results: AL32400 all port test (1200 MHz)

Ethernet test results for CCR2004-16G-2S+PC
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	2650.7	32190.3	5715.4	23410.1	8079.9	4395.5
Bridging	25 bridge filter rules	1110.3	13483.8	1113.5	4560.9	1119	608.7
Routing	none (fast path)	2573.6	31253.4	5061.1	20730.4	7226	3930.9
Routing	25 simple queues	1084.6	13171.6	1106.1	4530.4	1079.4	587.2
Routing	25 ip filter rules	668	8112.5	675.8	2767.9	683.9	372.1

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: AL32400 IPsec throughput

IPsec test results for CCR2004-16G-2S+PC
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	203	2273.6	204.1	836	202.2	103.5
256 tunnels	AES-128-CBC + SHA1	232.4	2602.9	230.5	944.1	222.2	113.8
256 tunnels	AES-128-CBC + SHA256	232.4	2602.9	230.5	944.1	222.2	113.8
256 tunnels	AES-256-CBC + SHA1	232.3	2601.8	227.3	931	238.1	121.9
256 tunnels	AES-256-CBC + SHA256	232.3	2601.8	227.3	931	238.1	121.9

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

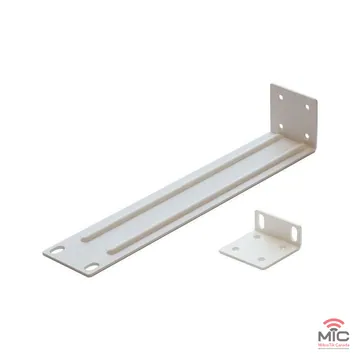

Ears
48 V 0.95 A power adapter
K-83

Optional purchases (sold separately)

G1040A-60WF · G1040A-60WF

Documents

Datasheets and brochures

Brochure (MikroTik)

Guides and manuals

Quick Guide (MikroTik)
User Manual (MikroTik)

Diagrams and dimensions

Dimensions (MikroTik)
Block Diagram (MikroTik)

Certificates and compliance

Declaration of conformity (MikroTik)

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
