MikroTik Canada

CCR2004-1G-12S+2XS

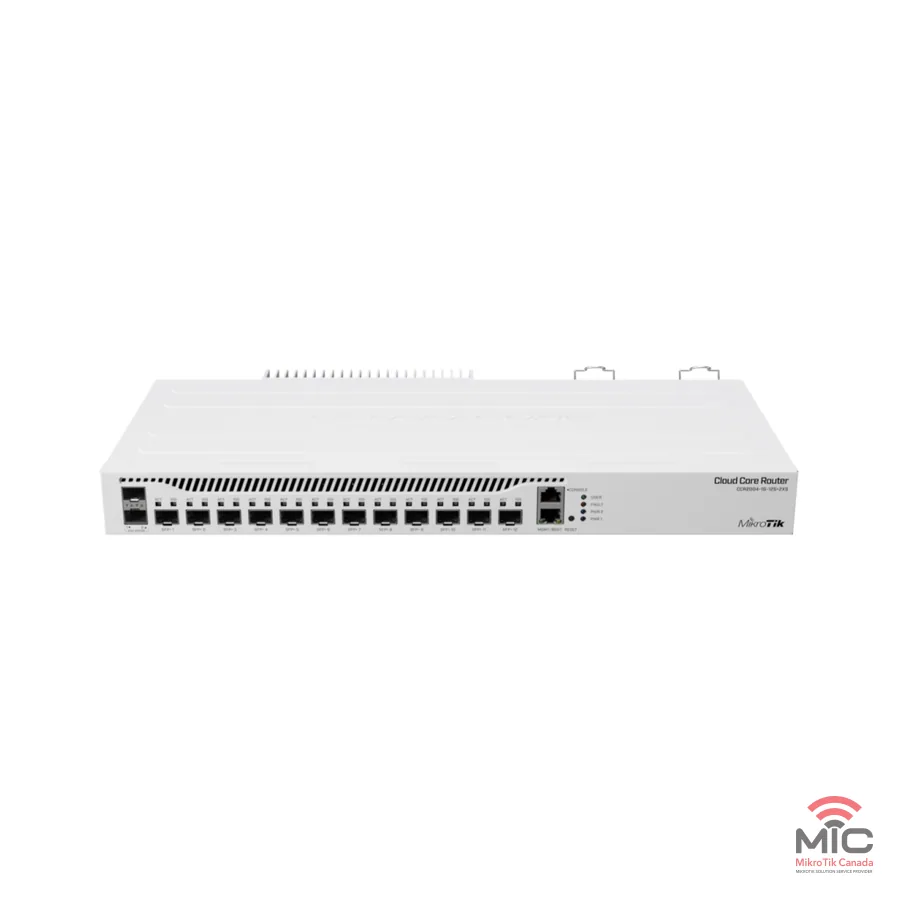

Front panel of the 1U case with the SFP+ and SFP28 cages

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: CCR2004-1G-12S+2XS

USD 595.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 1 x 1 Gbit/s, 12 x SFP+ (10 Gbit/s) + 2 x SFP28 (25 Gbit/s); 4-core AL32400; 4 GB RAM.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Featured in Router and firewall.

Specifications

ItemValue
ArchitectureARM 64bit
CPUAL32400
CPU core count4
CPU nominal frequency1700 MHz
CPU Threads count4
Dimensions443 x 224 x 44 mm
RouterOS license6
Operating SystemRouterOS v7
Size of RAM4 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IP20

Powering

ItemValue
Number of AC inputs2
AC input range100-240
Max power consumption60 W
Max power consumption without attachments31 W
Cooling type2 fans

Ethernet

ItemValue
10/100/1000 Ethernet ports1

Fibre

ItemValue
SFP+ ports12
Number of 25G SFP28 ports2

Peripherals

ItemValue
Serial console portRJ45

Benchmarks

Ethernet test results: AL32400 All port test (CCR2004-1G-12S+2XS)

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)3174.438549.76626.727142.910972.55969
Bridging25 bridge filter rules1763.6214171794.37349.61773.9965
Routingnone (fast path)3138.7381165790.323717.111159.76070.9
Routing25 simple queues1849.3224581876.976881883.81024.8
Routing25 ip filter rules1177.814303.71185.14854.31169.7636.3

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: AL32400 IPsec throughput

ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA12032273.6204.1836202.2103.5
256 tunnelsAES-128-CBC + SHA1232.42602.9230.5944.1222.2113.8
256 tunnelsAES-128-CBC + SHA256232.42602.9230.5944.1222.2113.8
256 tunnelsAES-256-CBC + SHA1232.32601.8227.3931238.1121.9
256 tunnelsAES-256-CBC + SHA256232.32601.8227.3931238.1121.9

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 2x IEC cords
  • Screw and feet kit (K10)
  • Rackmount bracket white

Optional purchases (sold separately)

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
