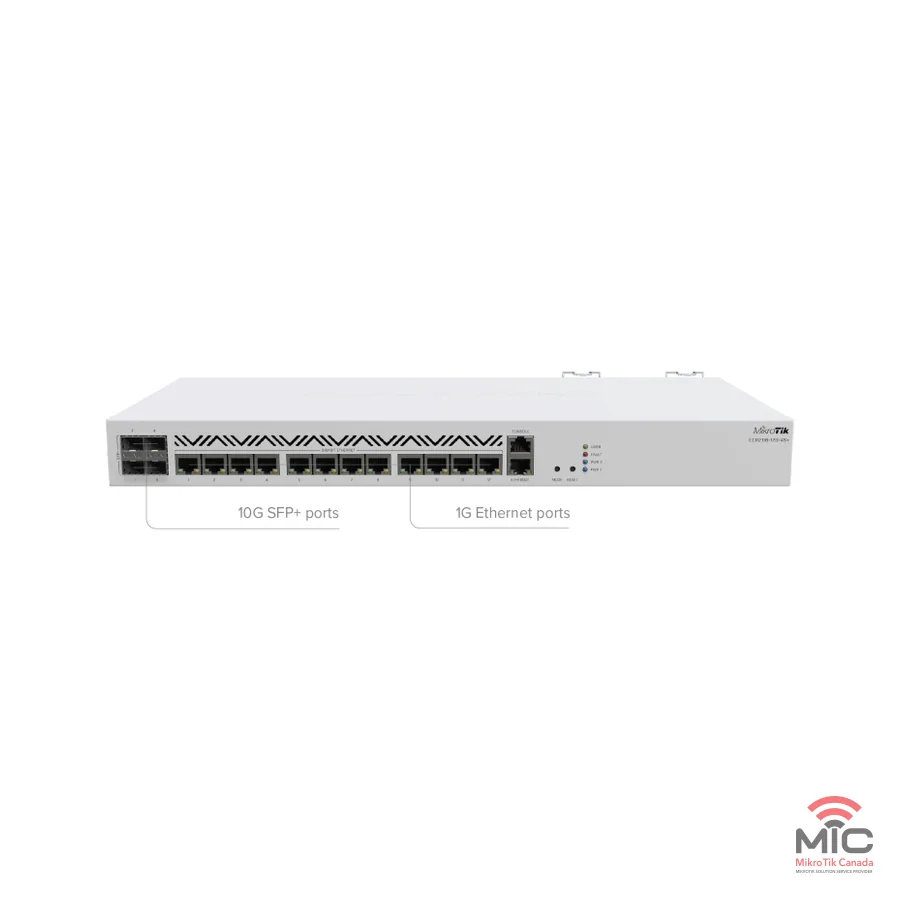

CCR2116-12G-4S+

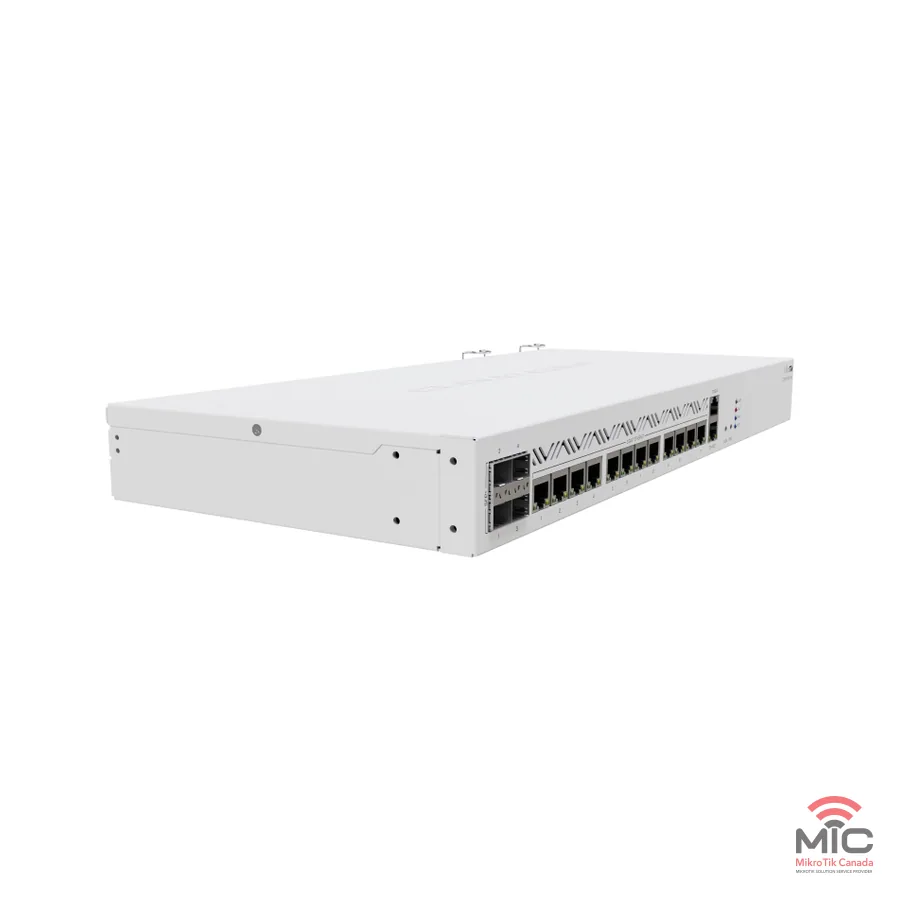

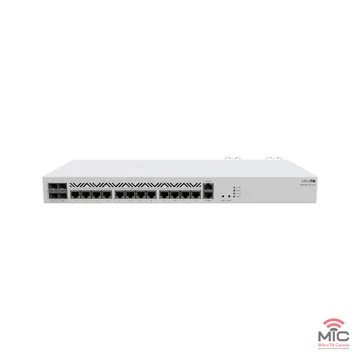

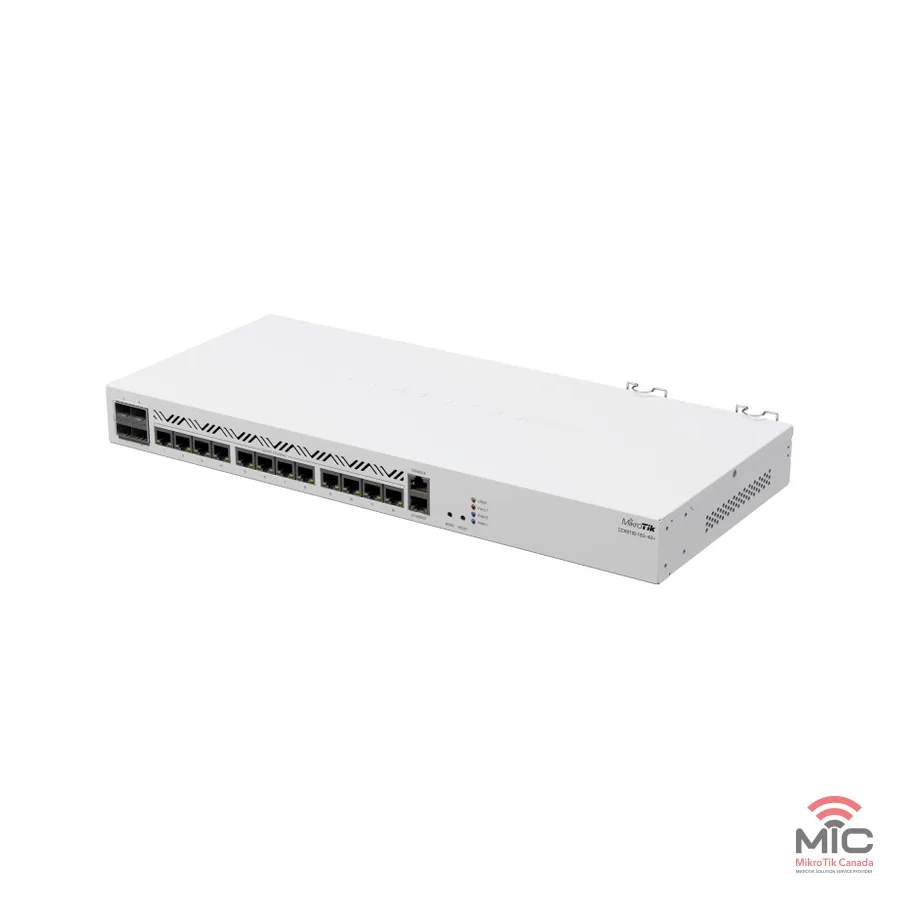

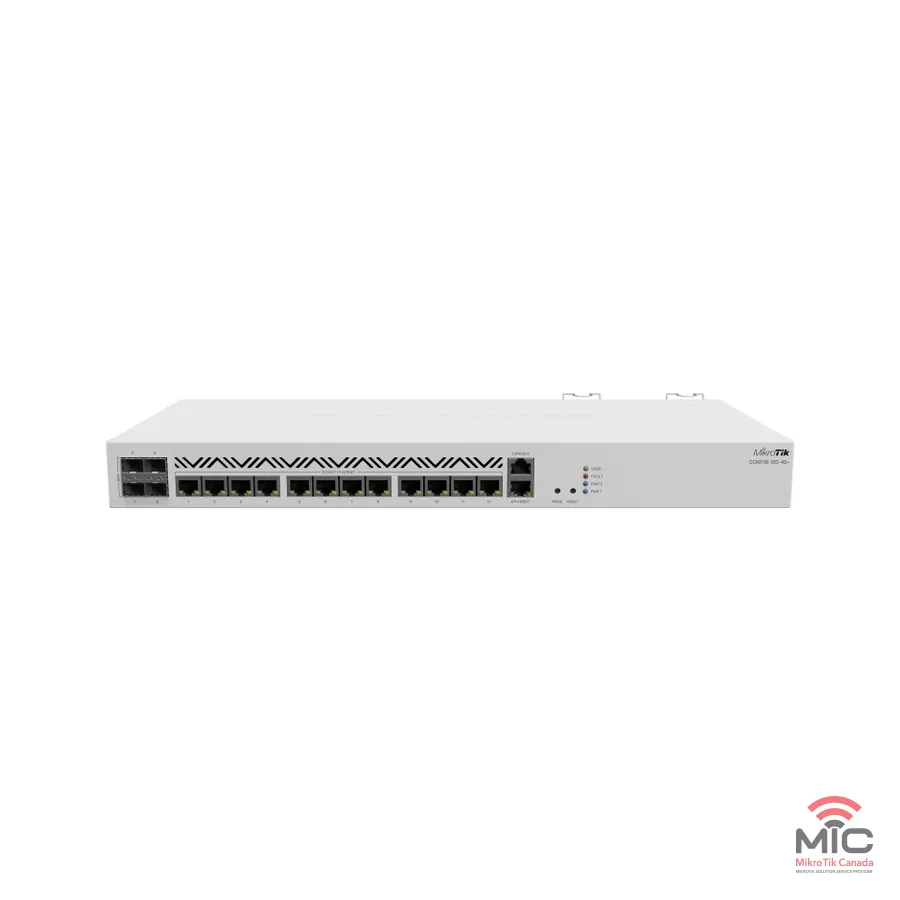

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: CCR2116-12G-4S+
Router with 13 x 1 Gbit/s, 4 x SFP+ (10 Gbit/s); 16-core AL73400; 16 GB RAM.
Availability: see the store.
Featured in Router and firewall.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| CPU Threads count | 16 |
| Switch chip model | 98DX3255 |
| Dimensions | 443 x 199 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
Powering
| Item | Value |
|---|---|

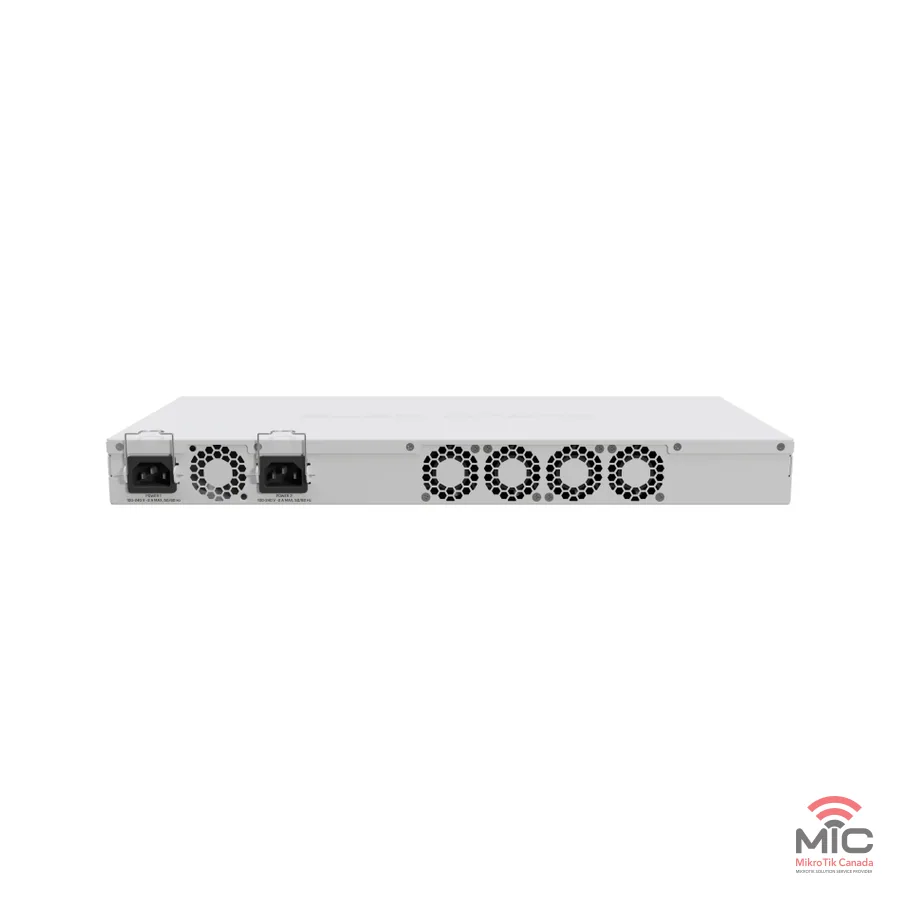

| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 47-63 |
| Max power consumption | 83 W |
| Max power consumption without attachments | 60 W |
| Cooling type | 4 fans |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 4 |
Peripherals
| Item | Value |
|---|---|
| Serial console port | RJ45 |
| Number of M.2 slots | 1 |
Benchmarks
Ethernet test results: AL73400 all port test (CCR2116)
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 3204.8 | 38919.1 | 9114.6 | 37333.4 | 29458.9 | 16025.6 |
| Bridging | 25 bridge filter rules | 2662.5 | 32333.4 | 2682.2 | 10986.3 | 2758.9 | 1500.8 |
| Routing | none (fast path) | 3212.2 | 39009 | 9125.3 | 37377.2 | 28095.6 | 15284 |
| Routing | 25 simple queues | 3212.2 | 39009 | 6322.6 | 25897.4 | 6300.9 | 3427.7 |
| Routing | 25 ip filter rules | 3212.2 | 39009 | 3927.9 | 16088.7 | 3901.5 | 2122.4 |
| Routing | none (L3HW) | 4226.3 | 51323.7 | 12218 | 50045.1 | 73863.6 | 40181.8 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: AL73400 IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 179.7 | 2012.6 | 186.4 | 763.5 | 182.8 | 93.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 366.8 | 4108.2 | 667.3 | 2733.3 | 668.8 | 342.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 366.8 | 4108.2 | 666.2 | 2728.8 | 670.4 | 343.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 366.2 | 4101.4 | 667.6 | 2734.5 | 668.8 | 342.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 366.2 | 4101.4 | 670 | 2744.3 | 670.4 | 343.2 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- IEC cord

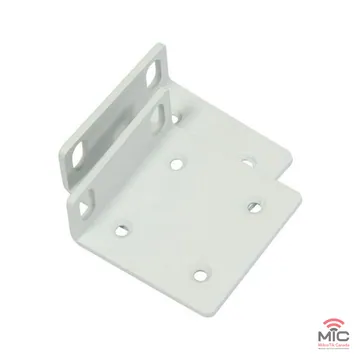

Rackmount bracket white

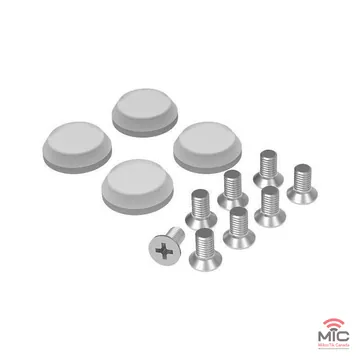

K-57 kit
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- Declaration of conformity (2) (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
