CCR2216-1G-12XS-2XQ (CCR2216-1G-12XS-2XQ)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: CCR2216-1G-12XS-2XQ

USD 2,795.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.

CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 1 x 1 Gbit/s, 12 x SFP28 (25 Gbit/s) + 2 x QSFP28 (100 Gbit/s); 16-core AL73400; 16 GB RAM.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Featured in Router and firewall.

Specifications

Specifications for CCR2216-1G-12XS-2XQ
Item	Value
Architecture	ARM 64bit
CPU	AL73400
CPU core count	16
CPU nominal frequency	2000 MHz
CPU Threads count	16
Switch chip model	98DX8525
Dimensions	443 x 367 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	16 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification	CE, EAC, ROHS
IP	20

Powering

Powering for CCR2216-1G-12XS-2XQ
Item	Value
Number of AC inputs	2
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	50-60
Max power consumption	128 W
Max power consumption without attachments	80 W
Cooling type	4 fans

Ethernet

Ethernet for CCR2216-1G-12XS-2XQ
Item	Value
10/100/1000 Ethernet ports	1

Fibre

Fibre for CCR2216-1G-12XS-2XQ
Item	Value
Number of 25G SFP28 ports	12
Number of 100G QSFP28 ports	2

Peripherals

Peripherals for CCR2216-1G-12XS-2XQ
Item	Value
Serial console port	RJ45
Number of M.2 slots	2

Benchmarks

Ethernet test results: AL73400 All port test

Ethernet test results for CCR2216-1G-12XS-2XQ
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	6240	75778.6	10977.1	44962.2	28907.9	15725.9
Bridging	25 bridge filter rules	4025.6	48886.9	4008.7	16419.6	3799.7	2067
Routing	none (fast path)	6168.5	74910.3	9944.6	40733.1	33153	18035.2
Routing	25 simple queues	4554.2	55306.2	4553.9	18652.8	4458.9	2425.6
Routing	25 ip filter rules	2854.1	34660.2	2845.6	11655.6	2701.1	1469.4
Routing	none (L3HW)	16254.9	197399.5	46992.4	192480.9	284090.5	154545.2
Routing	25 ip filter rules (Fasttrack L3HW)	16026.2	194622.2	46287.5	189593.6	251870.1	137017.3

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: AL73400 IPsec throughput

IPsec test results for CCR2216-1G-12XS-2XQ
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	179.7	2012.6	186.4	763.5	182.8	93.6
256 tunnels	AES-128-CBC + SHA1	366.8	4108.2	667.3	2733.3	668.8	342.4
256 tunnels	AES-128-CBC + SHA256	366.8	4108.2	666.2	2728.8	670.4	343.2
256 tunnels	AES-256-CBC + SHA1	366.2	4101.4	667.6	2734.5	668.8	342.4
256 tunnels	AES-256-CBC + SHA256	366.2	4101.4	670	2744.3	670.4	343.2

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

IEC cord

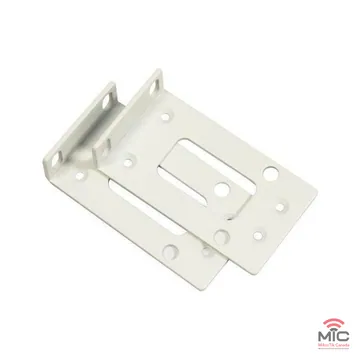

Rackmount ears
Cable managment brackets
K-82 fastening set
Rackmount rear support ears (2/2)

Optional purchases (sold separately)

MT-HotSwapFan · MT-HotSwapFan

Documents

Datasheets and brochures

Brochure (MikroTik)

Guides and manuals

Quick Guide (MikroTik)
User Manual (MikroTik)

Diagrams and dimensions

Dimensions (MikroTik)
Block Diagram (MikroTik)

Certificates and compliance

Declaration of conformity (MikroTik)

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
