CRS310-8G+2S+IN (CRS310-8G+2S+IN)

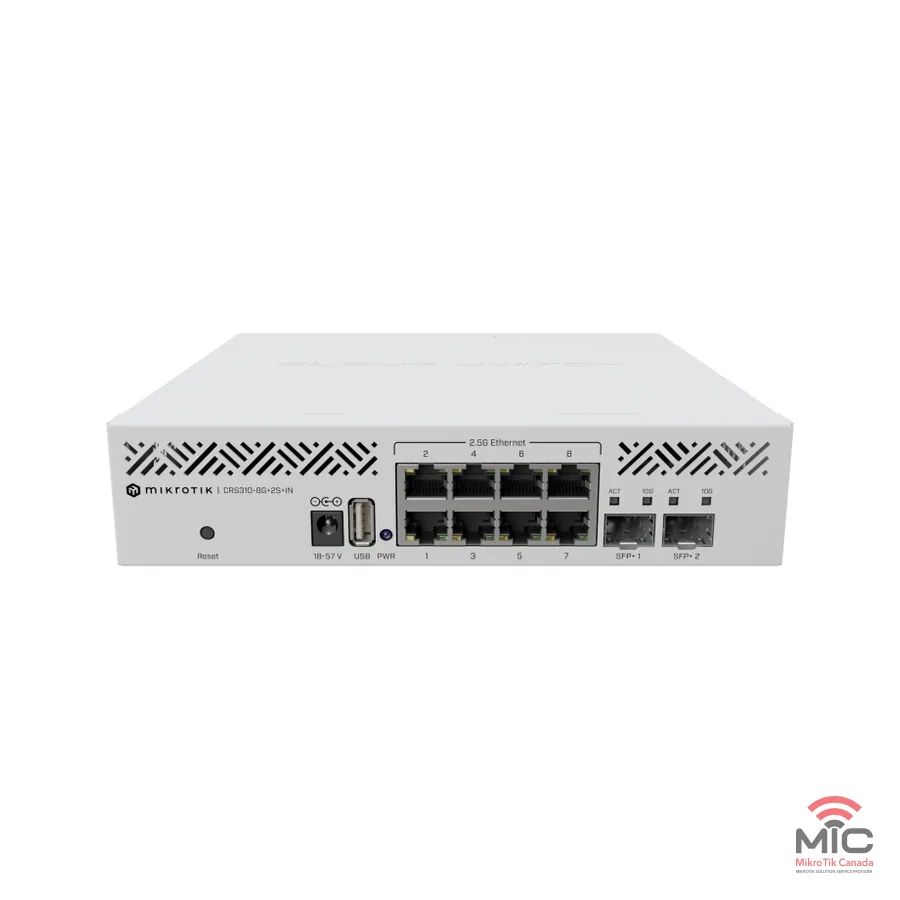

CRS310-8G+2S+IN product image — CRS310-8G+2S+IN

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: CRS310-8G+2S+IN

USD 219.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.

CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Switches: 2.5 Gbit/s Ethernet ports, SFP+ cages.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

Specifications for CRS310-8G+2S+IN
Item	Value
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
Dimensions	200 x 206,1 x 44
RouterOS license	5
Operating System	RouterOS v7 / SwitchOS
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Certification	CE, EAC, ROHS
IP	20

Powering

Powering for CRS310-8G+2S+IN
Item	Value
Number of DC inputs	1 (DC jack)
DC jack input Voltage	18-57 V
Max power consumption	34 W
Max power consumption without attachments	21 W
Cooling type	1 fan

Ethernet

Ethernet for CRS310-8G+2S+IN
Item	Value
Number of 2.5G Ethernet ports	8

Fibre

Fibre for CRS310-8G+2S+IN
Item	Value
SFP+ ports	2

Peripherals

Peripherals for CRS310-8G+2S+IN
Item	Value
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Benchmarks

Switching results

Switching results for CRS310-8G+2S+IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3251	39479.8	9398.5	38496.2	59523.8	30476.2
Switching	Non blocking Layer 2 capacity	3251	78959.7	9398.5	76992.5	59523.8	60952.4
Switching	Non blocking Layer 1 throughput	3251	40000	9398.5	40000	59523.8	40000
Switching	Non blocking Layer 1 capacity	3251	80000	9398.5	80000	59523.8	80000
Routing	none (L3HW)	3151	38265.3	9241.5	37853.4	59471.5	30449.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Ethernet test results: 98DX226S - all port test

Ethernet test results for CRS310-8G+2S+IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	104.3	1266.4	273.7	1121.2	321.2	174.7
Bridging	25 bridge filter rules	96.5	1171.7	107.2	439.1	106.6	58
Routing	none (fast path)	104.2	1265.2	274.3	1123.5	387.6	210.9
Routing	25 simple queues	95.8	1163.2	101.4	415.4	102	55.5
Routing	25 ip filter rules	63.4	769.7	64.4	263.8	63.5	34.6

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

24V 1.5A power adapter
K-48 fastening set
Ears

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Brochure (MikroTik)

Guides and manuals

Quick Guide (MikroTik)
User Manual (MikroTik)

Diagrams and dimensions

Block Diagram (MikroTik)
Dimensions (MikroTik)

Certificates and compliance

Declaration of conformity (MikroTik)

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
