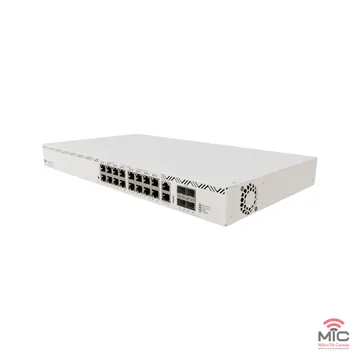

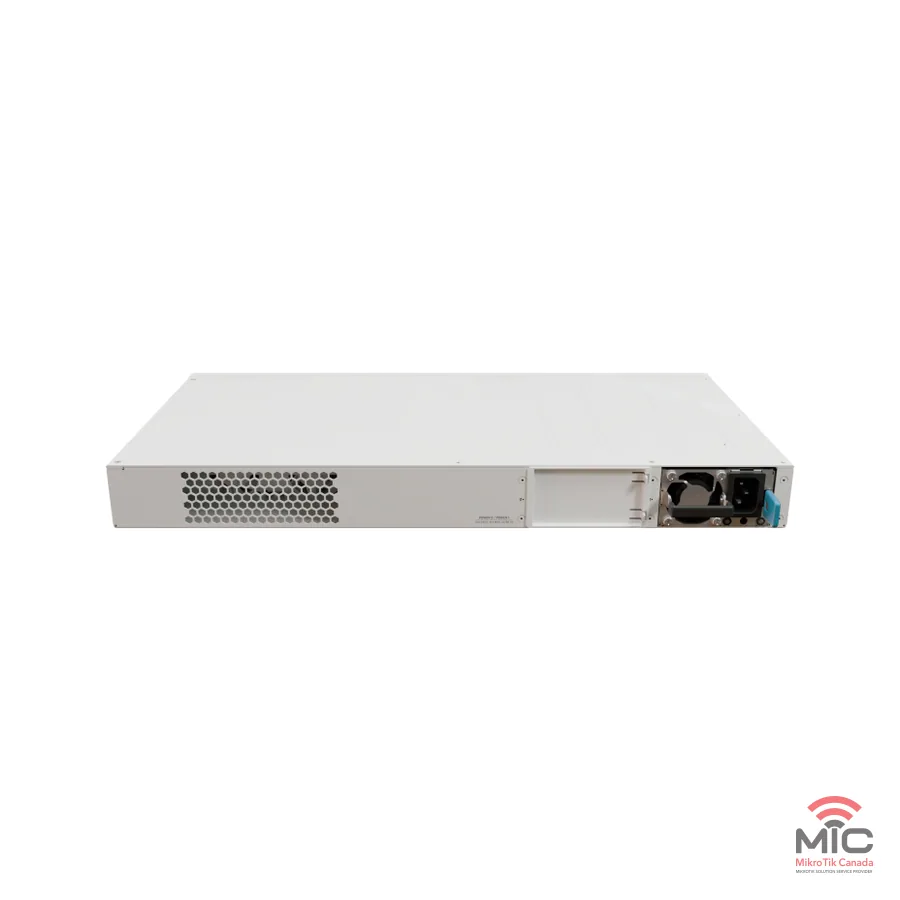

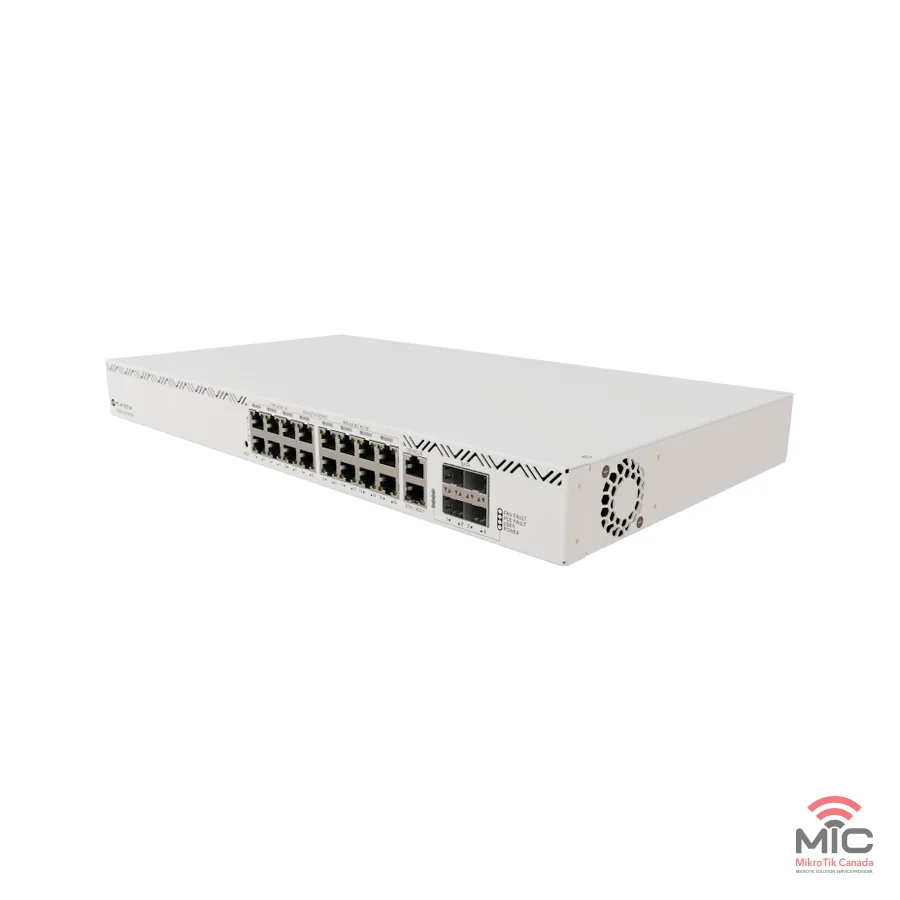

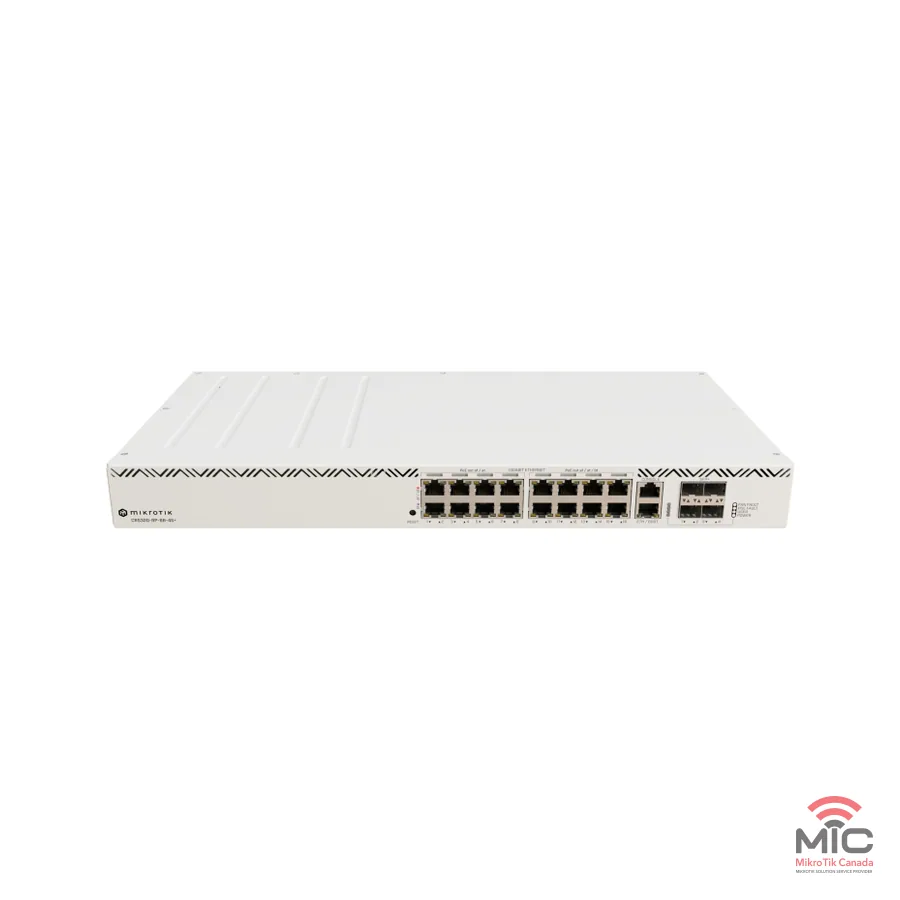

CRS320-8P-8B-4S+RM
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: CRS320-8P-8B-4S+RM
Switches: Gigabit Ethernet ports, SFP+ cages, PoE output.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System | RouterOS v7 / SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Powering
| Item | Value |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 600W (1150W with additional PSU) |
| Max power consumption without attachments | 36 W |
| Cooling type | 3 fans |
| PoE-out ports | Ether1-Ether8 (af/at), Ether9-Ether16 (bt) |
| PoE out | 802.3af/at/bt |
| High voltage PoE-Out current limit | 560 (af/at) / 1667 (bt) mA |
| Max total out (A) | 17.82 A |
| Total output current | 17.82 |
| Total output power | 963 |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 17 |
| Number of 1G Ethernet ports with PoE-out | 16 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 4 |
Peripherals
| Item | Value |
|---|---|
| Serial console port | RJ45 |
Benchmarks
Switching results
| Mode | Configuration |
|---|---|
| Switching | Non blocking Layer 2 throughput |
| Switching | Non blocking Layer 2 capacity |
| Switching | Non blocking Layer 1 throughput |
| Switching | Non blocking Layer 1 capacity |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Ethernet test results: 98DX226S - all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104.3 | 1266.4 | 273.7 | 1121.2 | 321.2 | 174.7 |
| Bridging | 25 bridge filter rules | 96.5 | 1171.7 | 107.2 | 439.1 | 106.6 | 58 |
| Routing | none (fast path) | 104.2 | 1265.2 | 274.3 | 1123.5 | 387.6 | 210.9 |
| Routing | 25 simple queues | 95.8 | 1163.2 | 101.4 | 415.4 | 102 | 55.5 |
| Routing | 25 ip filter rules | 63.4 | 769.7 | 64.4 | 263.8 | 63.5 | 34.6 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- IEC cord
- Rackmount ears (CRS)
- Cable managment brackets
- K-57 kit
Optional purchases (sold separately)
G1483-0600WNB · G1483-0600WNB
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
- Dimensions (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
