MikroTik Canada

CRS354-48P-4S+2Q+RM

CRS354-48P-4S+2Q+RM

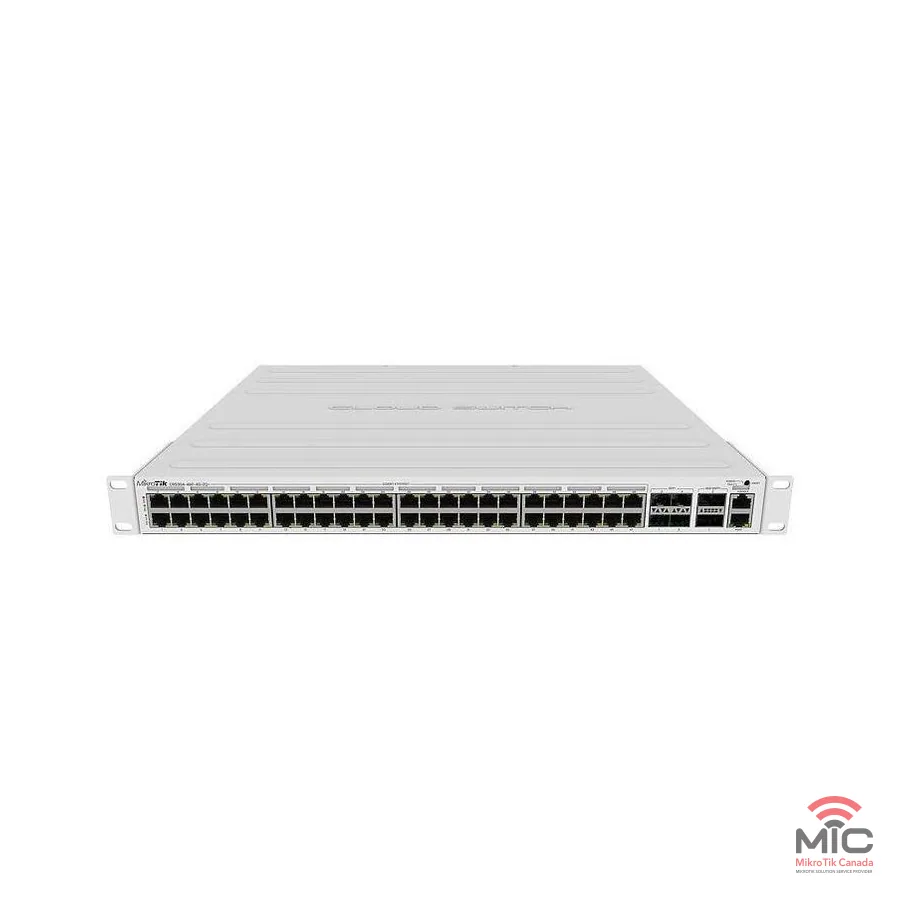

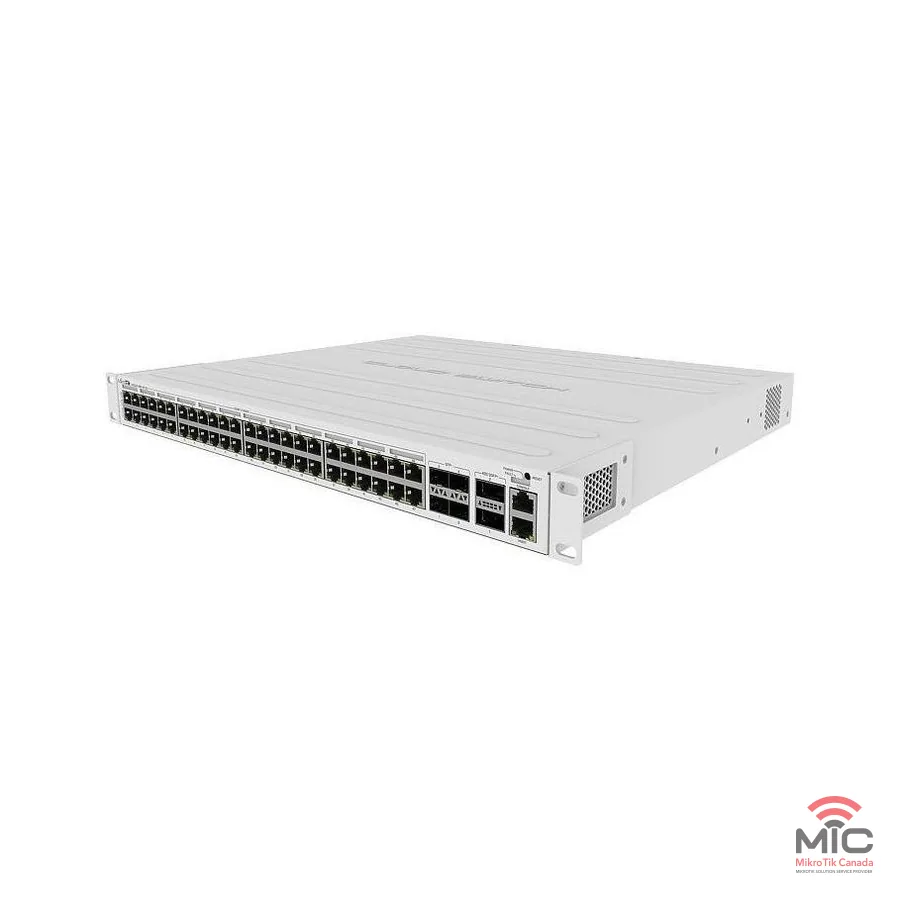

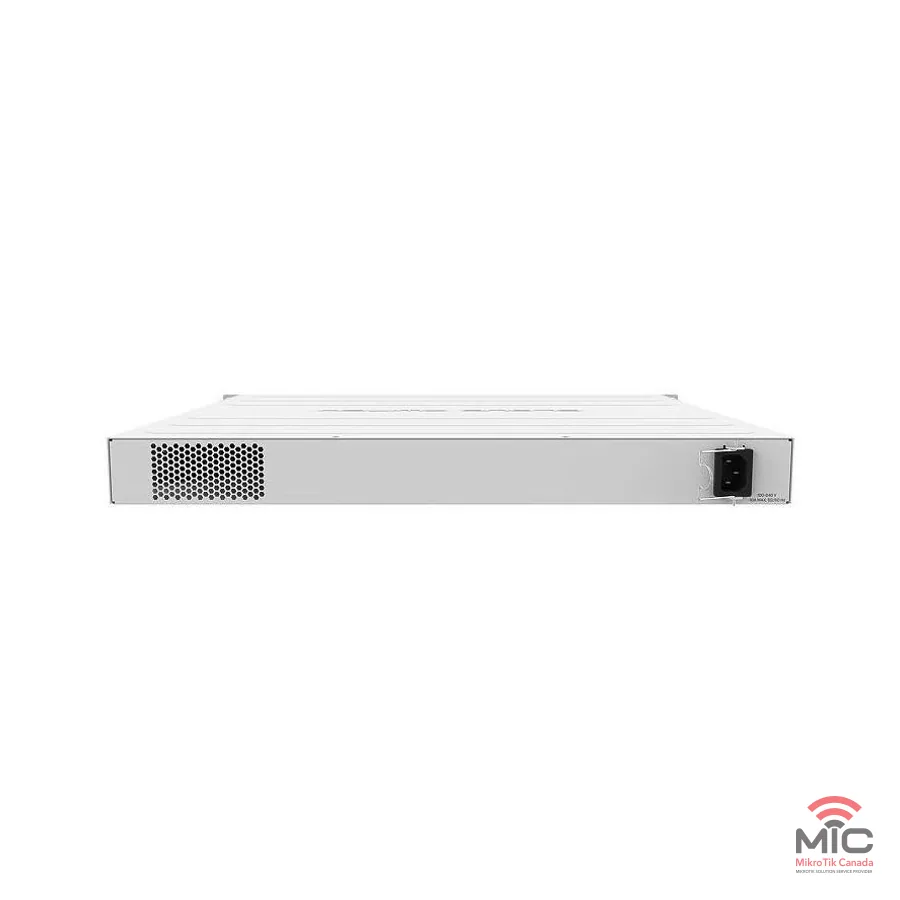

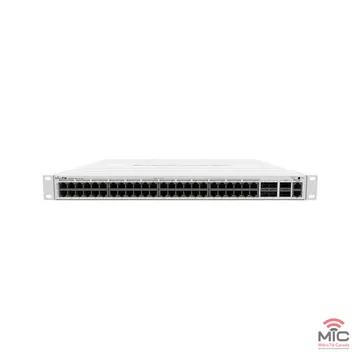

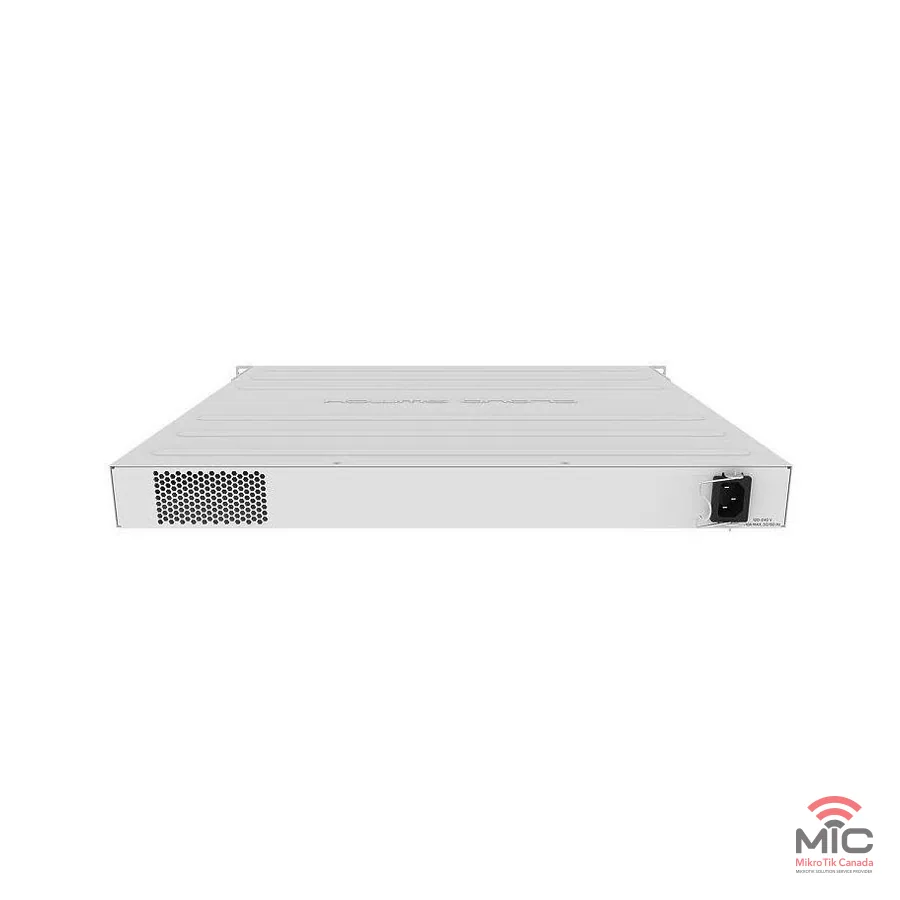

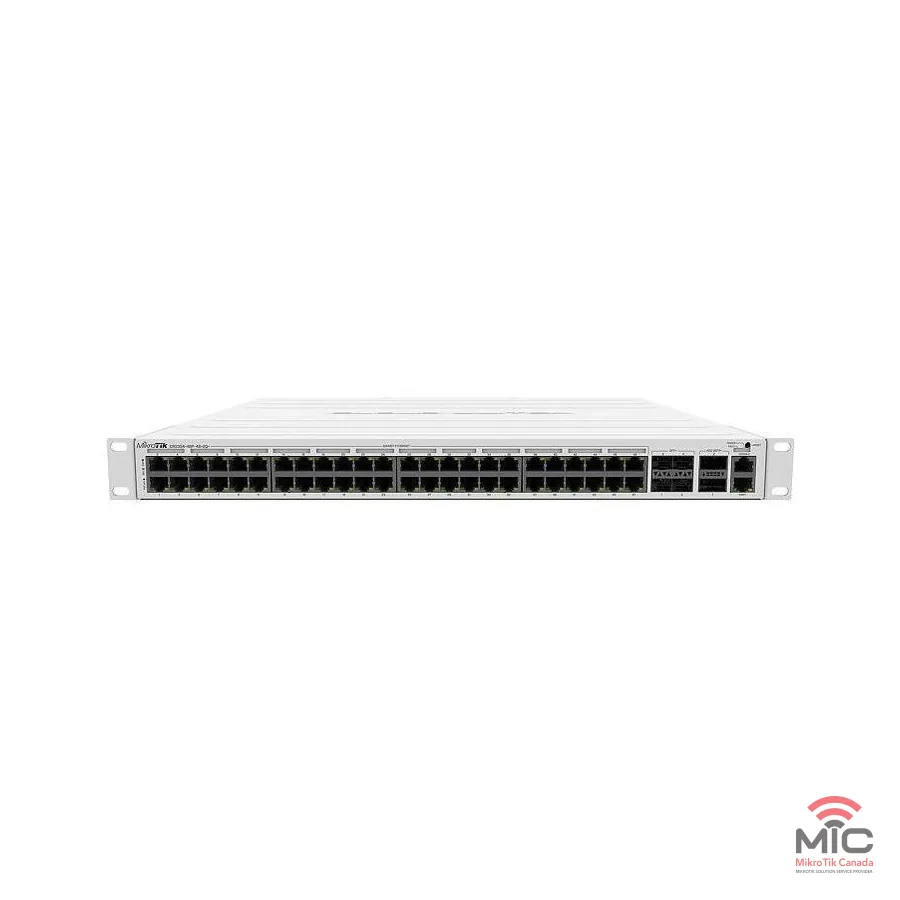

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: CRS354-48P-4S+2Q+RM

USD 999.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Switches: Fast Ethernet ports, Gigabit Ethernet ports, SFP+ cages.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

ItemValue
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip model98DX3257
Dimensions443 x 382 x 44 mm
RouterOS license5
Operating SystemRouterOS v7 / SwitchOS
Size of RAM128 MB
Storage size32 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IPIP20

Powering

ItemValue
Number of AC inputs1
AC input range100-240
Number of PSU slots1
Frequency (Hz)50-60
Max power consumption800 W
Max power consumption without attachments85 W
Cooling type4 fans
PoE-out portsEther1-Ether48
PoE out802.3af/at
Low voltage PoE-Out current limit1000 mA
High voltage PoE-Out current limit570 mA
Total output current27A at 26V OR 13.2A at 53V
Total output power700W

Ethernet

ItemValue
10/100 Ethernet ports1
10/100/1000 Ethernet ports48

Fibre

ItemValue
SFP+ ports4
Number of 40G QSFP+ ports2

Peripherals

ItemValue
Serial console portRJ45

Benchmarks

Switching results

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
SwitchingNon blocking Layer 2 throughput13662.216591439497.2161780.5250148.8128076.2
SwitchingNon blocking Layer 2 capacity13662.2331828.139497.2323560.9250148.8256152.4
SwitchingNon blocking Layer 1 throughput13662.216810039497.2168100250148.8168100
SwitchingNon blocking Layer 1 capacity13662.233620039497.2336200250148.8336200
Routingnone (L3HW)9752.9118439.528195.5115488.7160513.782183
Routing25 ip filter rules (Fasttrack L3HW)5581.767784.714776.360523.880145.8541034.6

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Ethernet test results: QCA9531 all port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)374454.2828339.1162583.2
Bridging25 bridge filter rules338410.5478195.875638.7
Routingnone (fast path)372451.8733300.2144974.2
Routing25 simple queues364442524214.654427.9
Routing25 ip filter rules338410.5414169.641721.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • IEC cord
  • Cable managment brackets
  • Rackmount ears (CRS)
  • Rackmount rear support ears (1/2)
  • Rackmount rear support ears (2/2)
  • K-48 fastening set

Optional purchases (sold separately)

  • G1270 · G1270

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
