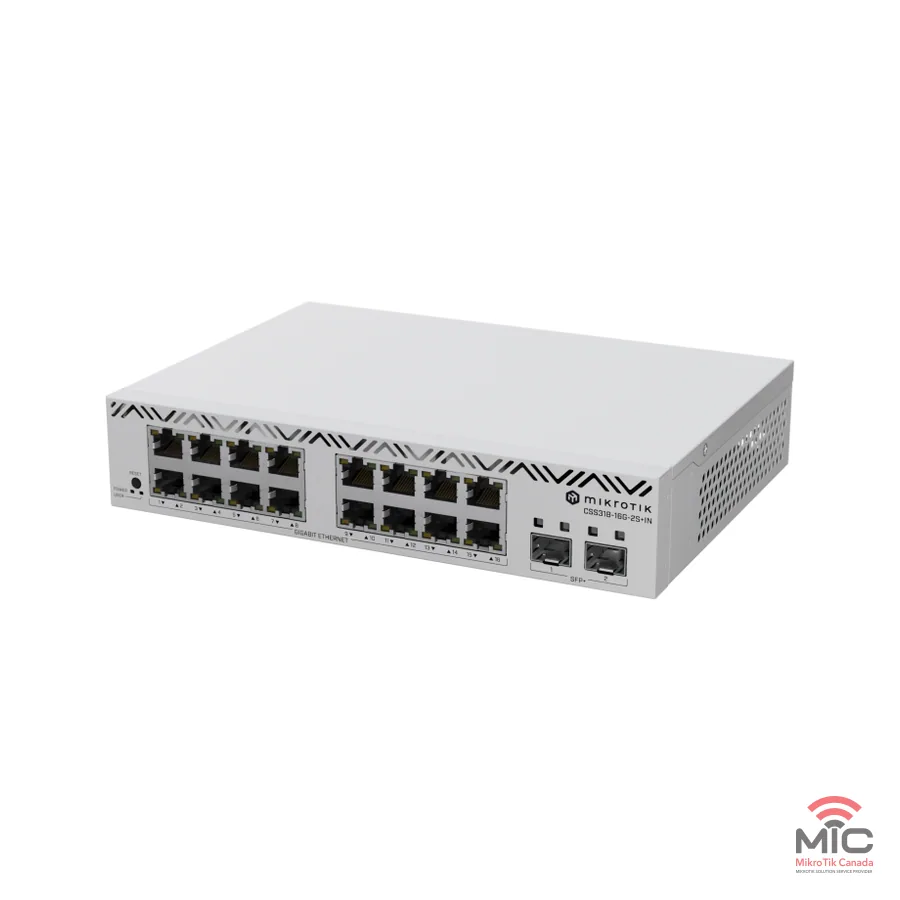

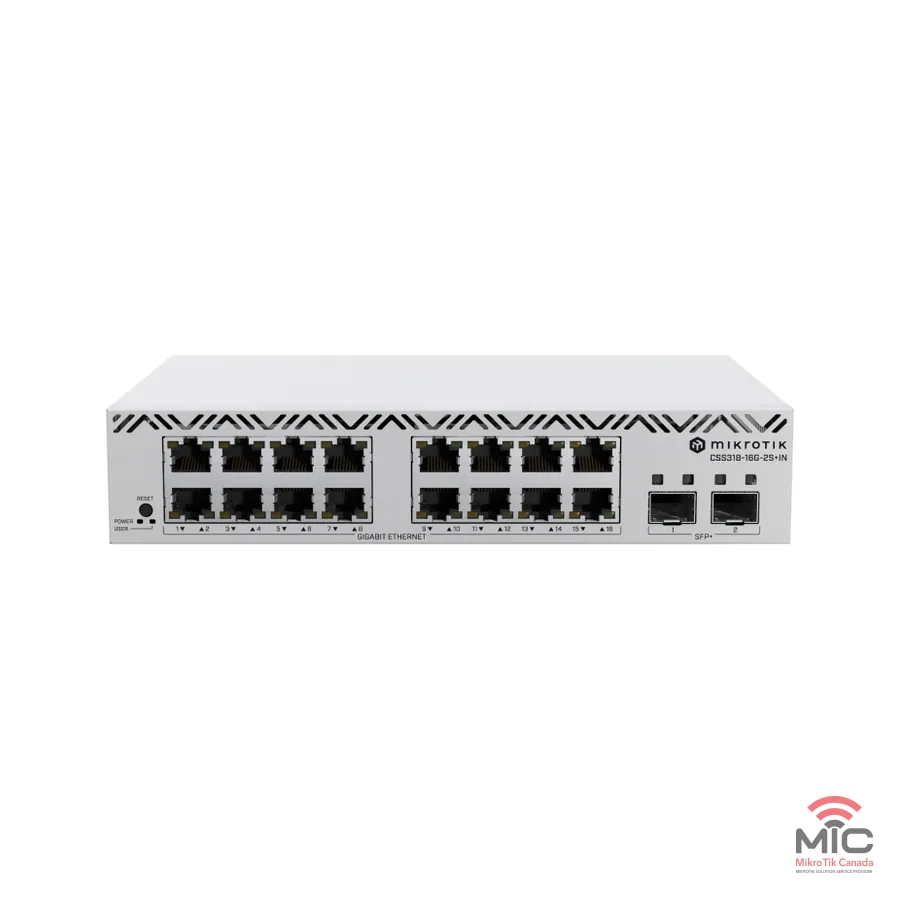

CSS318-16G-2S+IN
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: CSS318-16G-2S+IN
Switches: Gigabit Ethernet ports, SFP+ cages.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | 98DX2518 |
| Operating System | SwOS |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| CPU temperature monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |

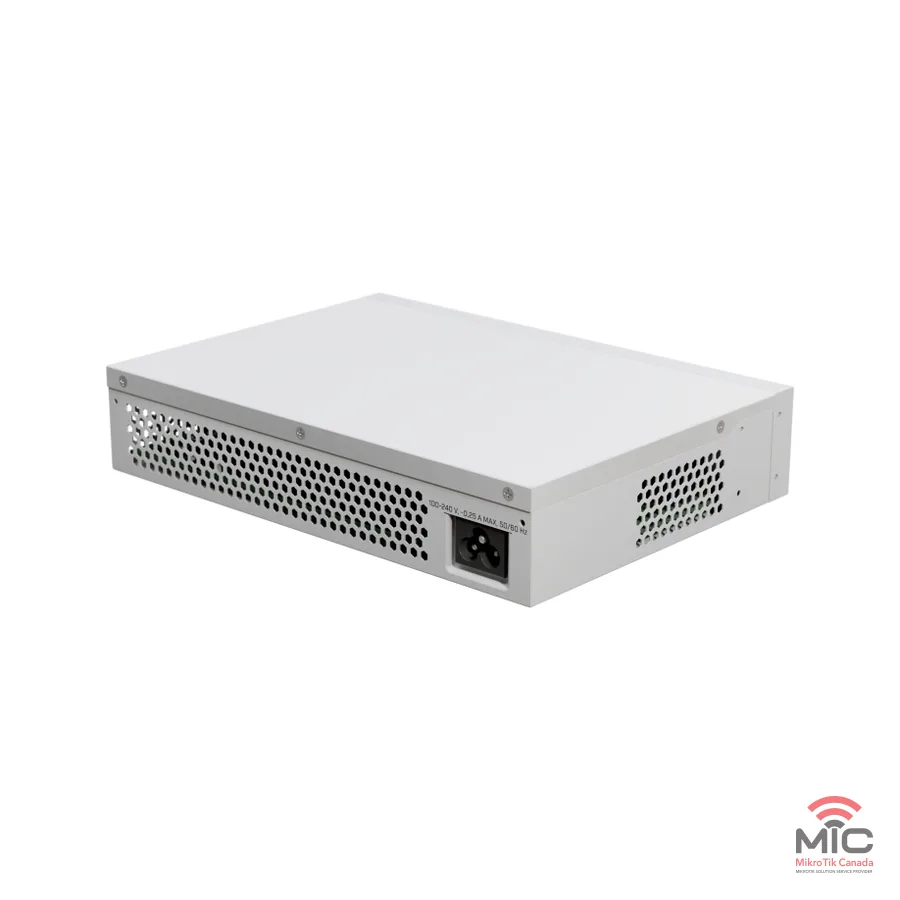

Powering
| Item | Value |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 13 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 16 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 2 |
Benchmarks
Switching results
| Mode | Configuration |
|---|---|
| Switching | Non blocking Layer 2 throughput |
| Switching | Non blocking Layer 2 capacity |
| Switching | Non blocking Layer 1 throughput |
| Switching | Non blocking Layer 1 capacity |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- IEC cord
- Screw set (4)
- CSS rack ears
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
Diagrams and dimensions
- Dimensions (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- Safety and Regulatory Information (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
