netPower Lite 7R
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: CSS610-1Gi-7R-2S+OUT
Switches: Gigabit Ethernet ports, SFP+ cages, PoE output.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | 88E6193X |
| Dimensions | 303.5 x 211.9 x 71.3/72.3 (left/right) mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, EAC, ROHS |
| IP | IP54 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 12-57 V |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 7 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 450 mA |
| Max total out (A) | 600 mA |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 2 |
Benchmarks
Switching results
| Mode | Configuration |
|---|---|
| Switching | Non blocking Layer 2 throughput |
| Switching | Non blocking Layer 2 capacity |
| Switching | Non blocking Layer 1 throughput |
| Switching | Non blocking Layer 1 capacity |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.

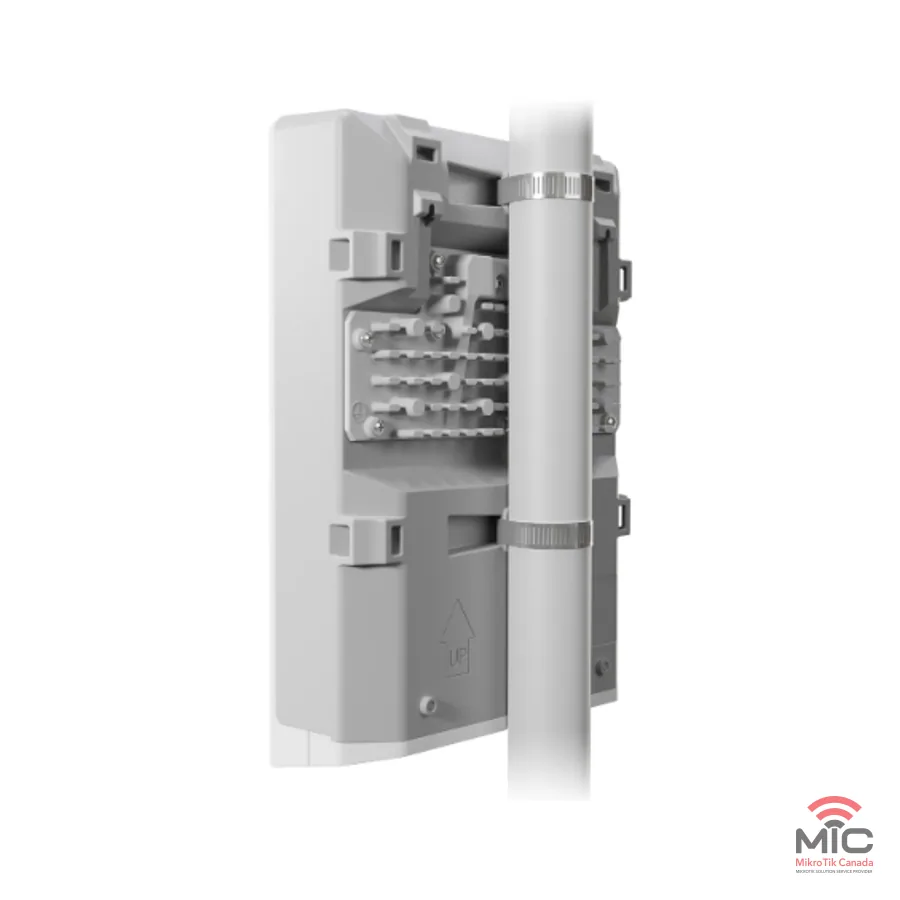

- K-66 fastening set
- Hose clamp 2
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- Quick Guide (2) (MikroTik)
- User Manual (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- General File (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
