CSS610-8P-2S+IN

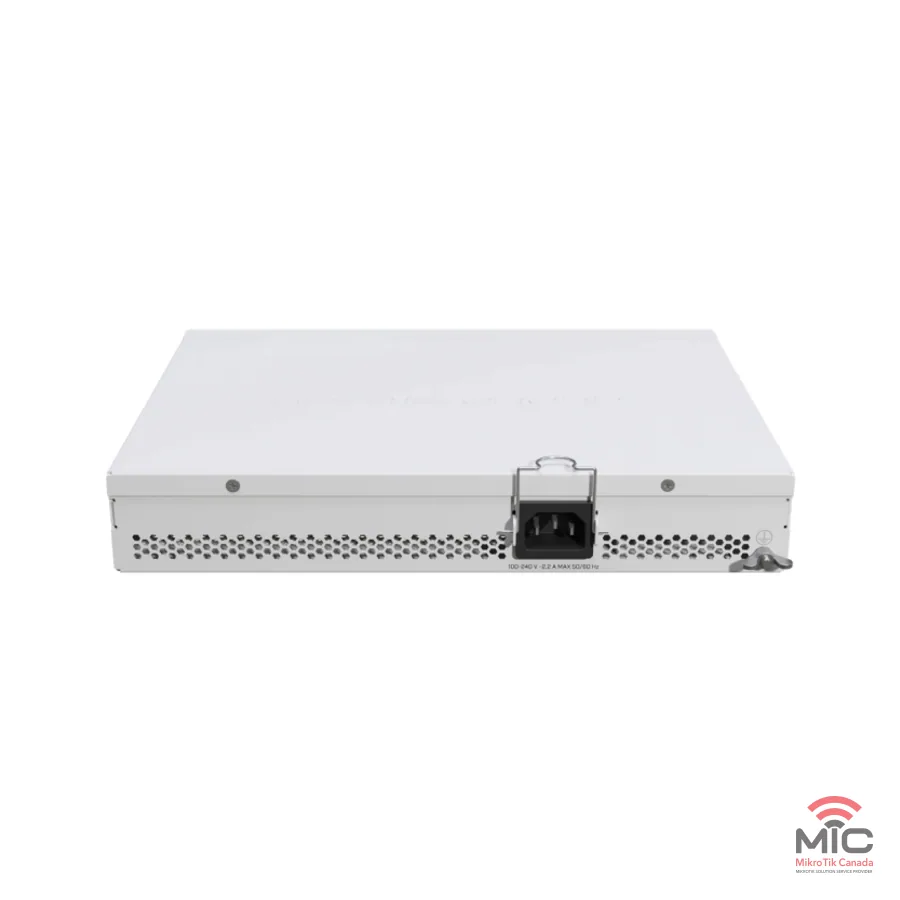

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: CSS610-8P-2S+IN
Switches: Gigabit Ethernet ports, SFP+ cages, PoE output.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | 88E6193X |
| Dimensions | 272x208x44mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Powering
| Item | Value |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 48-57 V |
| Number of PSU slots | 1 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 162 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1000 mA |
| High voltage PoE-Out current limit | 625 mA |
| Total output power | 140 |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 2 |
Benchmarks
Switching results
| Mode | Configuration |
|---|---|
| Switching | Non blocking Layer 2 throughput |
| Switching | Non blocking Layer 2 capacity |
| Switching | Non blocking Layer 1 throughput |
| Switching | Non blocking Layer 1 capacity |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- Rack ears for CSS610-8G-2S+IN
- K-48 fastening set
- IEC cord
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Dimensions (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
