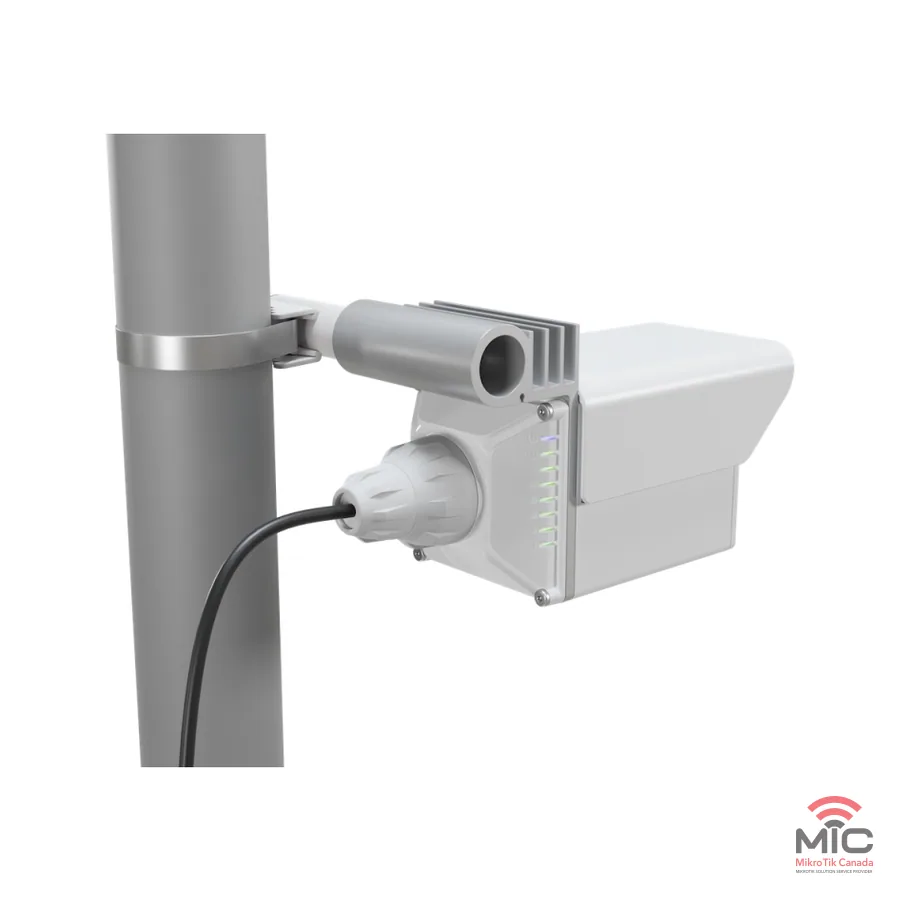

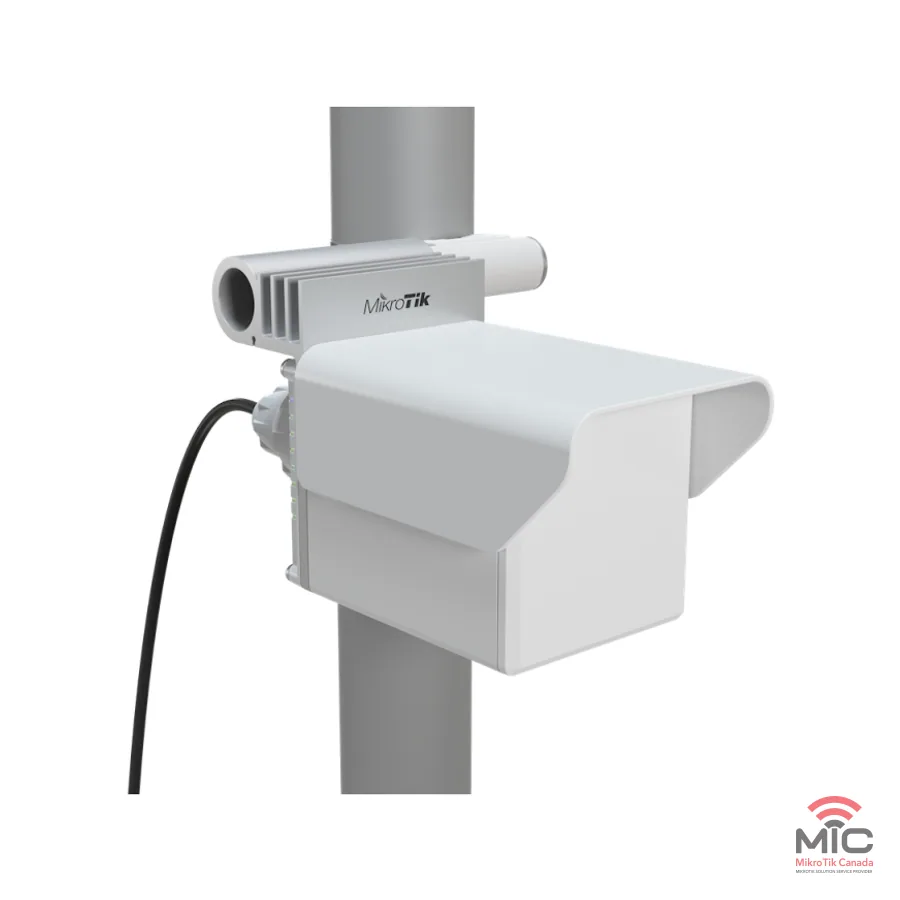

Cube 60Pro ac
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: CubeG-5ac60ay
60 GHz products: Gigabit Ethernet ports, PoE input, Wi-Fi 5.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 448-896 (auto) MHz |
| CPU Threads count | 4 |
| Dimensions | 115 x 95 x 82 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 64 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| GNSS standards | GPS |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 66 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 5 GHz Number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 11.5 |
| Wireless 5 GHz chip model | IPQ4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Benchmarks
Ethernet test results: IPQ-4019 1G one port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 812 | 986.1 | 2349 | 962.2 | 14826 | 759.1 |
| Bridging | 25 bridge filter rules | 812 | 986.1 | 2277 | 932.7 | 2319 | 118.7 |
| Routing | none (fast path) | 812 | 986.1 | 2351 | 963 | 14218 | 728 |
| Routing | 25 simple queues | 812 | 986.1 | 2351 | 963 | 4583 | 234.6 |
| Routing | 25 ip filter rules | 812 | 986.1 | 2349 | 962.2 | 2368 | 121.2 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.8A power adapter
- Hose clamp 1

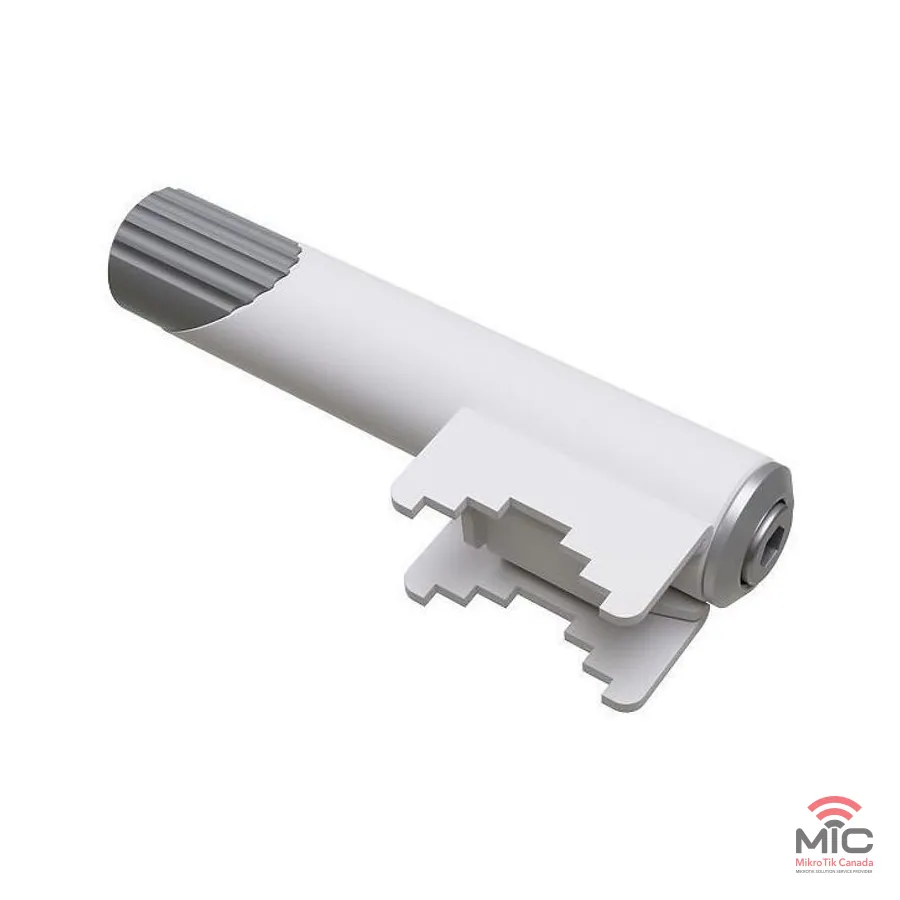

- Cube mount (bracket)
- Gigabit PoE injector
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Selection guide for PtMP links (MikroTik)
- Selection guide for PtP links (MikroTik)
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
- Dimensions (MikroTik)
Certificates and compliance
- FCC Grant of Certification (60GHz) (MikroTik)
- FCC 5GHz (MikroTik)
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
