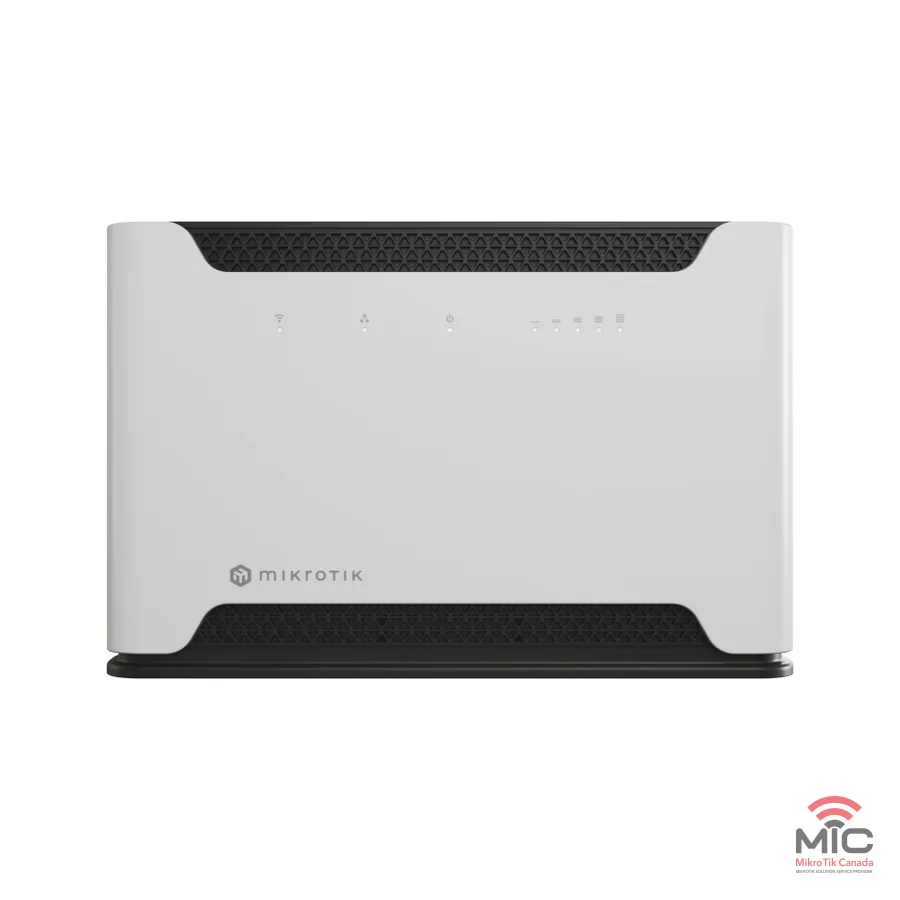

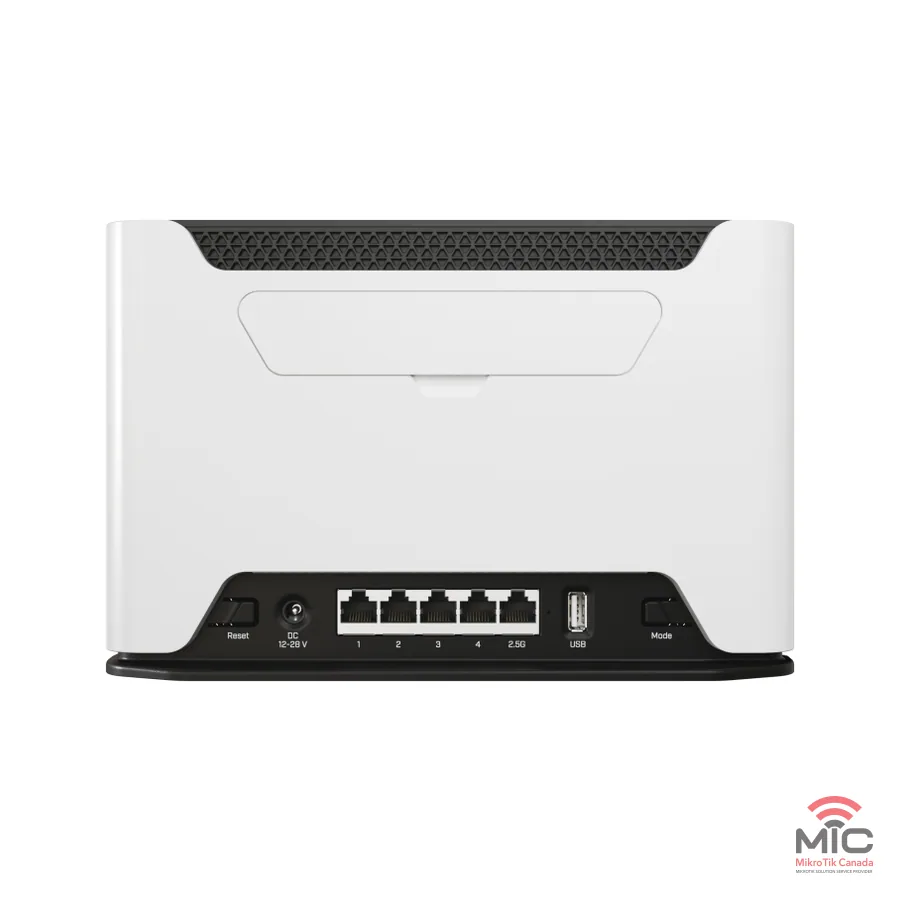

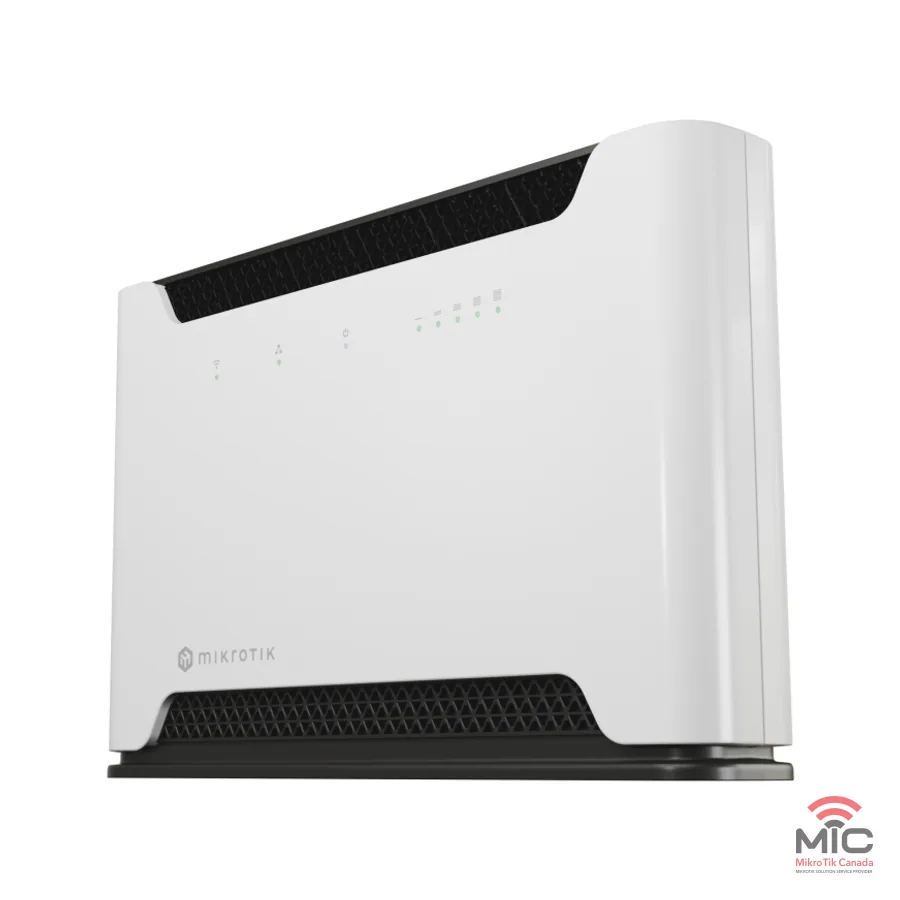

Chateau LTE7
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: D53G-5HacD2HnD-TC&R11e-LTE7
LTE/5G products: Gigabit Ethernet ports, Wi-Fi 5, Wi-Fi 4 or earlier.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 448-896 (auto) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-4019 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 14.1 W |
| Cooling type | Passive |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Item | Value |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Mobile
| Item | Value |
|---|---|
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz) |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
Benchmarks
Ethernet test results: IPQ-4019 1G all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 1625 | 1973.4 | 4699 | 1924.7 | 14884 | 762.1 |
| Bridging | 25 bridge filter rules | 1625 | 1973.4 | 3512 | 1438.5 | 3521 | 180.3 |
| Routing | none (fast path) | 1625 | 1973.4 | 4699 | 1924.7 | 14884 | 762.1 |
| Routing | 25 simple queues | 1625 | 1973.4 | 4686 | 1919.4 | 4934 | 252.6 |
| Routing | 25 ip filter rules | 1625 | 1973.4 | 2228 | 912.6 | 2274 | 116.4 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: IPQ-4018 IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 1.2A power adapter
- UTP Flat Cable (1.5m)
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- Safety and regulatory information (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
