GPeRx4

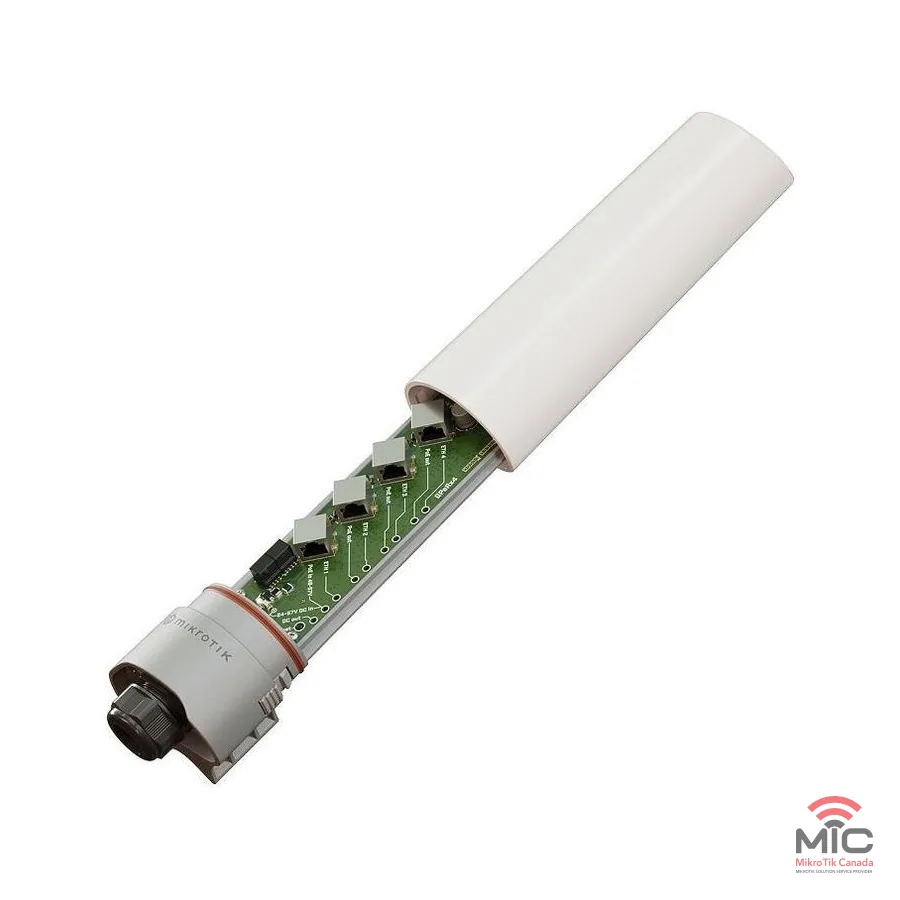

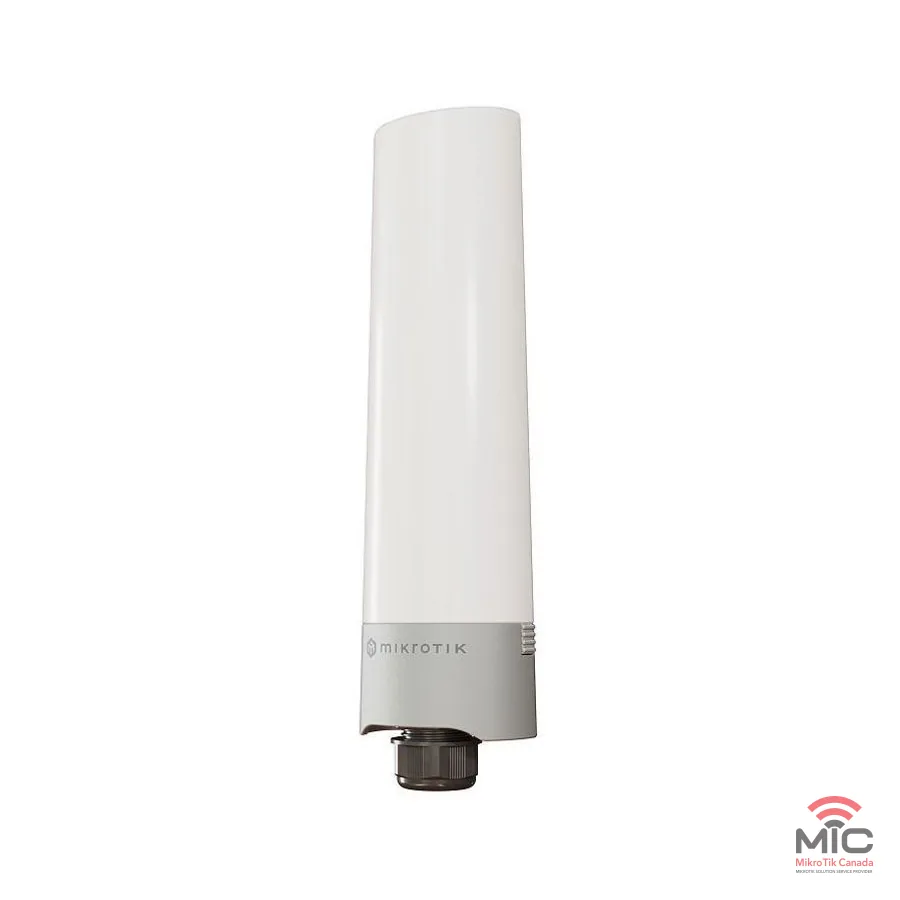

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: GPER14i
Accessories: Gigabit Ethernet ports, PoE output, PoE input.
Availability: see the store. This product was not found in the MikroTik Canada store by its exact product code.
Specifications
| Item | Value |
|---|---|
| CPU nominal frequency | 200 MHz |
| Switch chip model | 88E6341 |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, EAC, ROHS |
| IP | 68 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 115 W |
| Max power consumption without attachments | 4 W |
| PoE in | 802.3 bt |
| PoE in input Voltage | 48-57 V |
| PoE-out ports | Ether2-Ether4 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 0.7 A |
| High voltage PoE-Out current limit | 0.6 A |
| Max total out (A) | 2.0 A |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 4 |
| Number of 1G Ethernet ports with PoE-out | 3 |
Benchmarks
Switching results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000 | 939.8 | 4000 | 5952.4 | 4000 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000 | 939.8 | 8000 | 5952.4 | 8000 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- Hose clamp 1
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
