L009UiGS-2HaxD-IN (L009UiGS-2HaxD-IN)

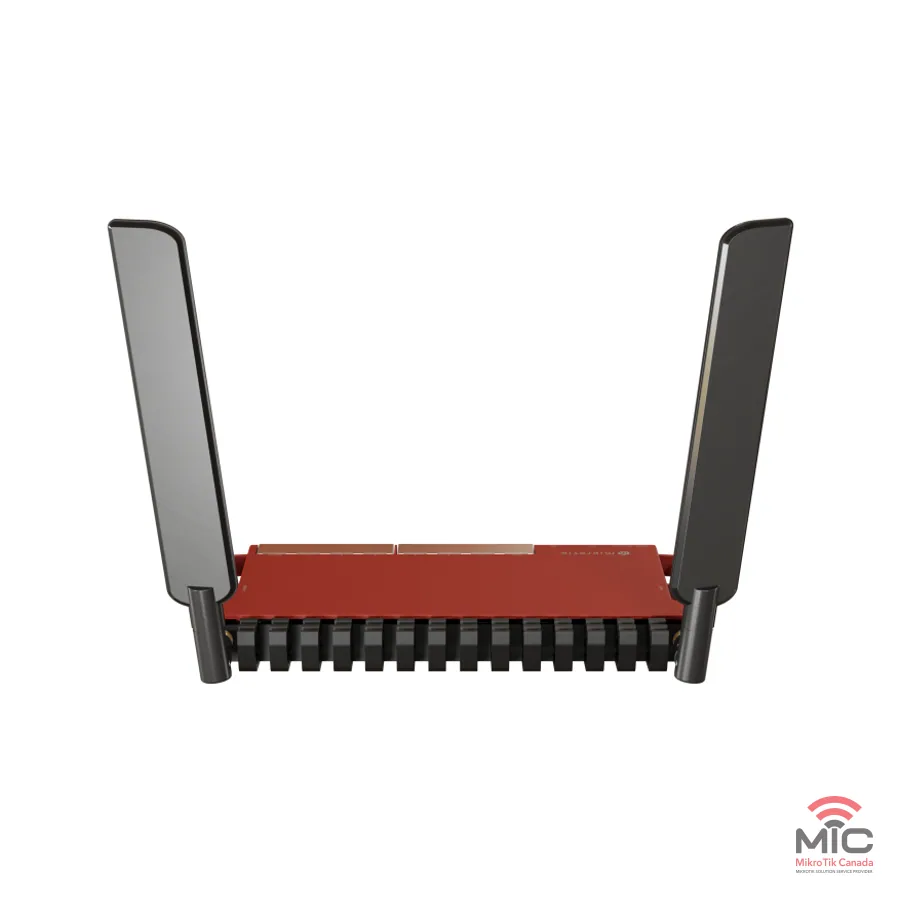

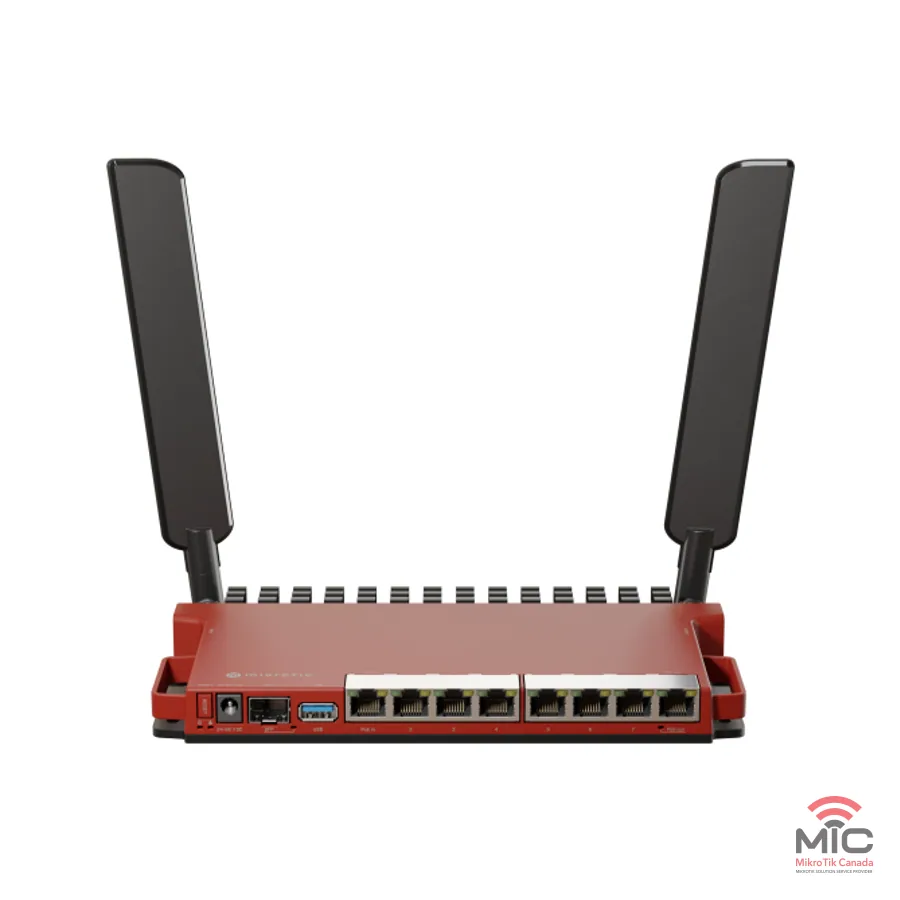

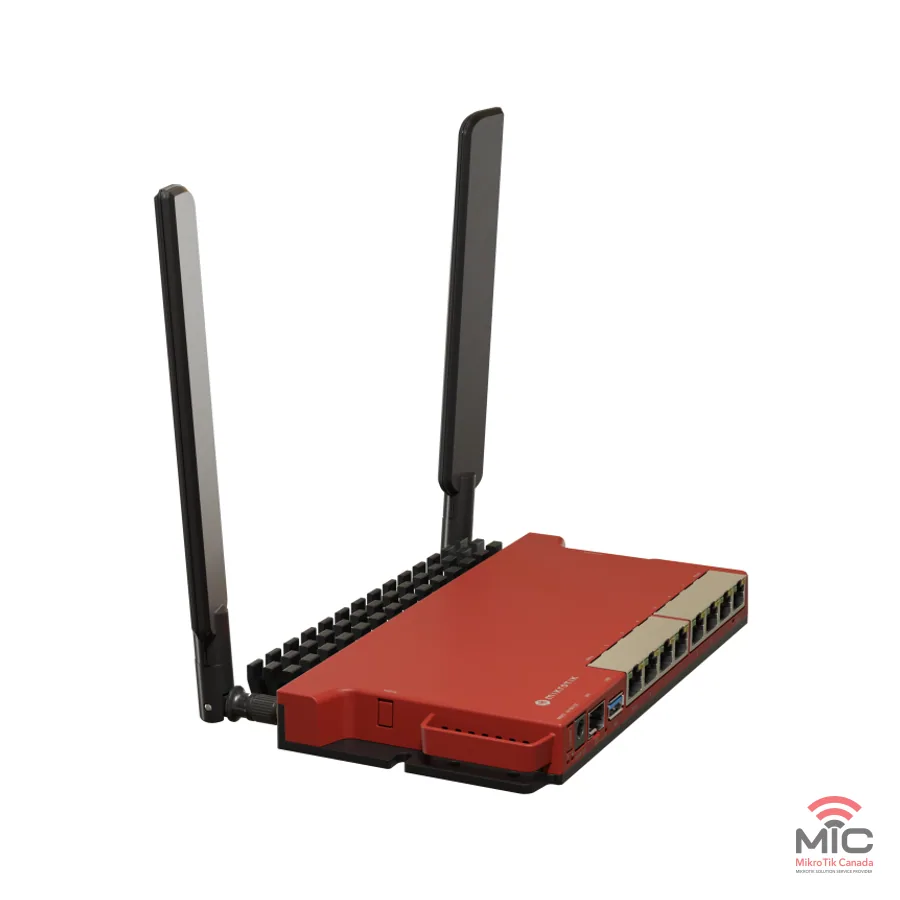

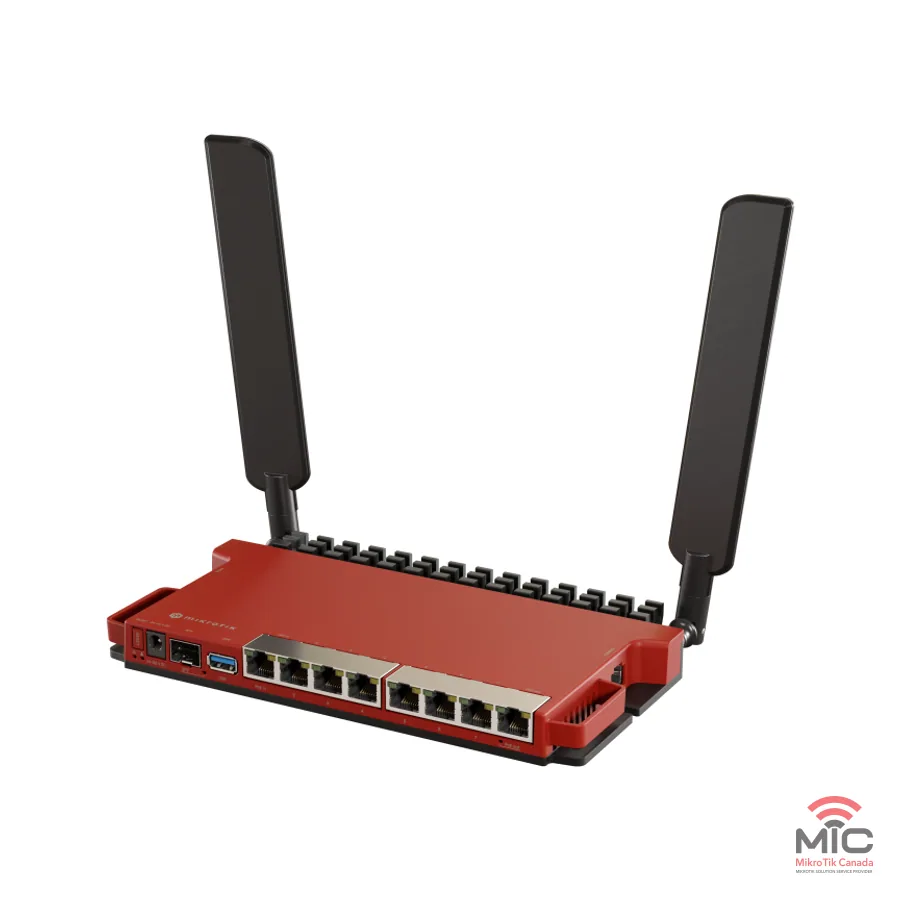

L009UiGS-2HaxD-IN product image — L009UiGS-2HaxD-IN

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: L009UiGS-2HaxD-IN

USD 129.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.

CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Wireless for home and office: Gigabit Ethernet ports, SFP cages, PoE output.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

Specifications for L009UiGS-2HaxD-IN
Item	Value
Architecture	ARM 32bit
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
CPU Threads count	2
Switch chip model	88E6190
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Certification	CE, FCC, IC, EAC, ROHS
IP	20
Mode button	Yes

Powering

Powering for L009UiGS-2HaxD-IN
Item	Value
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	24-56 V
Max power consumption	47 W
Max power consumption without attachments	14 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	24-56 V
PoE-out ports	Ether8
PoE out	Passive PoE
Low voltage PoE-Out current limit	1 A
High voltage PoE-Out current limit	450 mA
Max total out (A)	1.0 A

Ethernet

Ethernet for L009UiGS-2HaxD-IN
Item	Value
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1

Fibre

Fibre for L009UiGS-2HaxD-IN
Item	Value
SFP ports	1 (2.5G supported)

Peripherals

Peripherals for L009UiGS-2HaxD-IN
Item	Value
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5

Wireless

Wireless for L009UiGS-2HaxD-IN
Item	Value
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz Number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	4
Wireless 2.4 GHz chip model	IPQ-5018
Wireless 2.4 GHz generation	Wi-Fi 6
WiFi speed	AX600

Benchmarks

Ethernet test results: IPQ-5018 all port test

Ethernet test results for L009UiGS-2HaxD-IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	282.6	3431.89	330.1	1352.09	324.1	176.31
Bridging	25 bridge filter	174.2	2115.48	178.4	730.73	181.8	98.9
Routing	None (fast path)	281.8	3422.18	309.9	1269.4	343.3	186.8
Routing	25 simple queues	143.2	1739	146.6	600.5	143.4	78
Routing	25 Filter rules	79.9	970.3	79	323.6	78	42.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

24V 1.5A power adapter
HGO indoor antenna kit
K-55 screw kit

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Brochure (MikroTik)

Guides and manuals

Quick Guide (MikroTik)
User Manual (MikroTik)

Diagrams and dimensions

Block Diagram (MikroTik)
Dimensions (MikroTik)

Certificates and compliance

FCC 2.4GHz (MikroTik)
Declaration of conformity (MikroTik)

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
