L009UiGS-RM
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: L009UiGS-RM
Router with 8 x 1 Gbit/s, 1 x SFP (1 Gbit/s) 2.5G supported; 2-core IPQ-5018; 512 MB RAM; PoE output listed.
Availability: see the store.
Featured in Router and firewall.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-5018 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| Switch chip model | 88E6190 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-56 V |
| Max power consumption | 40 W |
| Max power consumption without attachments | 8 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 24-56 V |
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 1 A |
| High voltage PoE-Out current limit | 450 mA |
| Max total out (A) | 1 A |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fibre
| Item | Value |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Item | Value |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Benchmarks
Ethernet test results: IPQ-5018 all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 282.6 | 3431.89 | 330.1 | 1352.09 | 324.1 | 176.31 |
| Bridging | 25 bridge filter | 174.2 | 2115.48 | 178.4 | 730.73 | 181.8 | 98.9 |
| Routing | None (fast path) | 281.8 | 3422.18 | 309.9 | 1269.4 | 343.3 | 186.8 |
| Routing | 25 simple queues | 143.2 | 1739 | 146.6 | 600.5 | 143.4 | 78 |
| Routing | 25 Filter rules | 79.9 | 970.3 | 79 | 323.6 | 78 | 42.4 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.

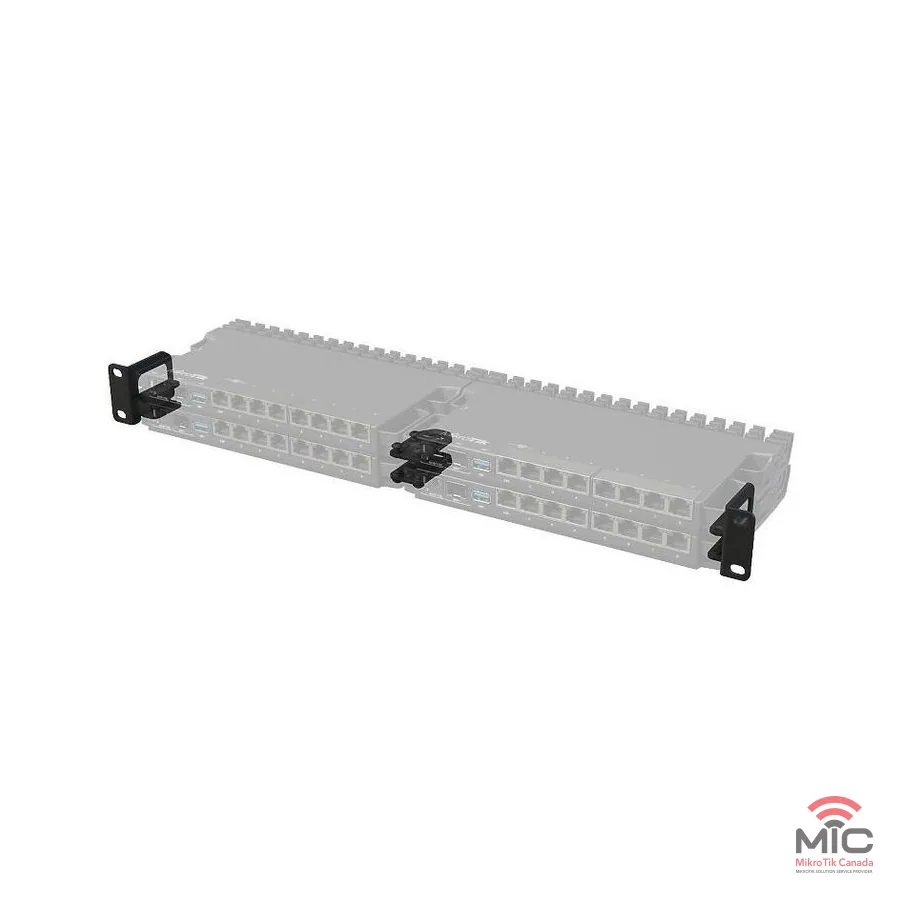

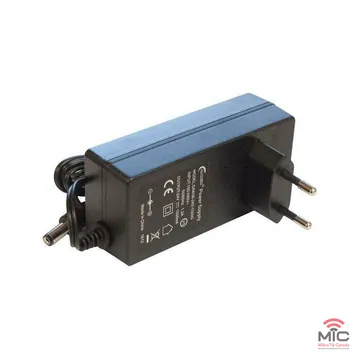

24V 1.5A power adapter- Rackmount kit K-79

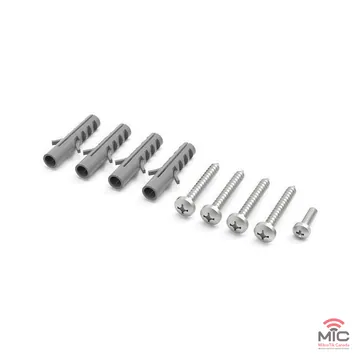

K-55 screw kit- K-87
- Adhesive pads
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Mounting instructions (MikroTik)
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
- Dimensions (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
