NetBox 5 ax

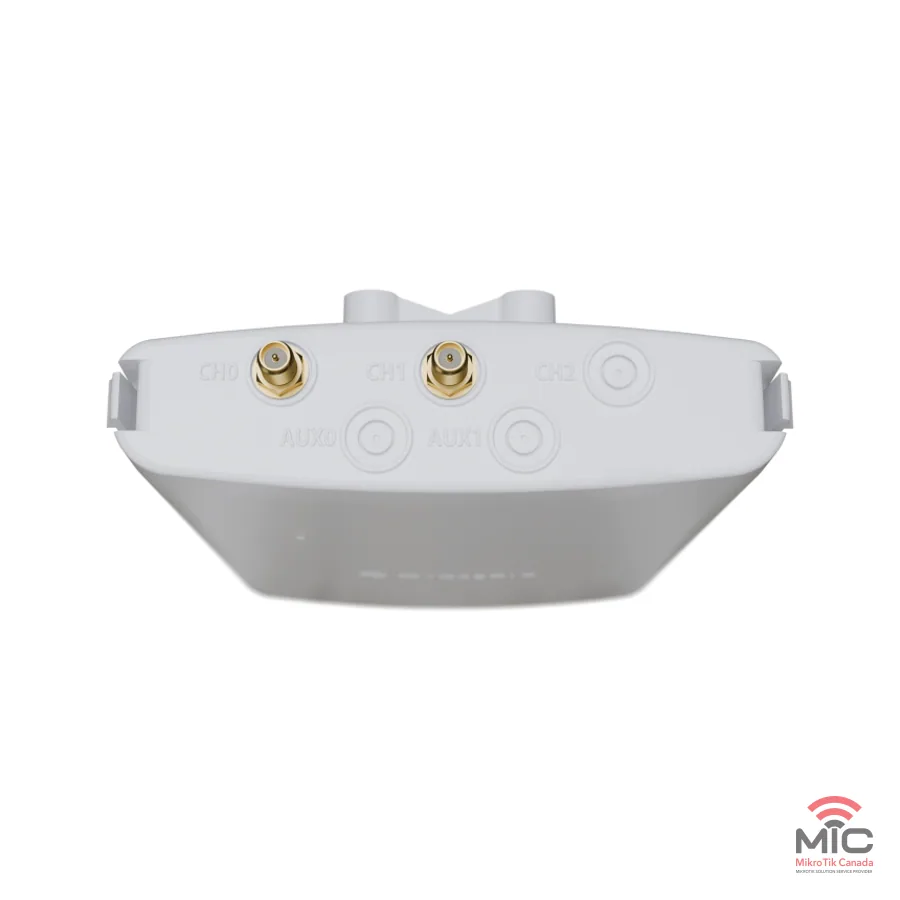

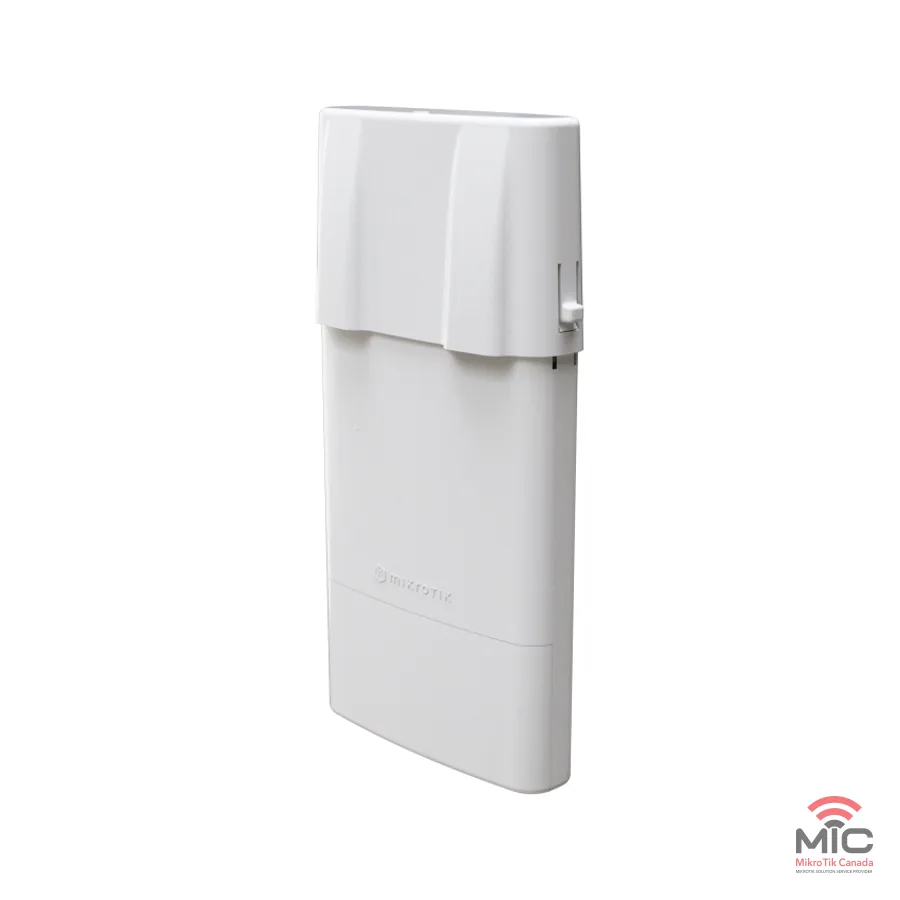

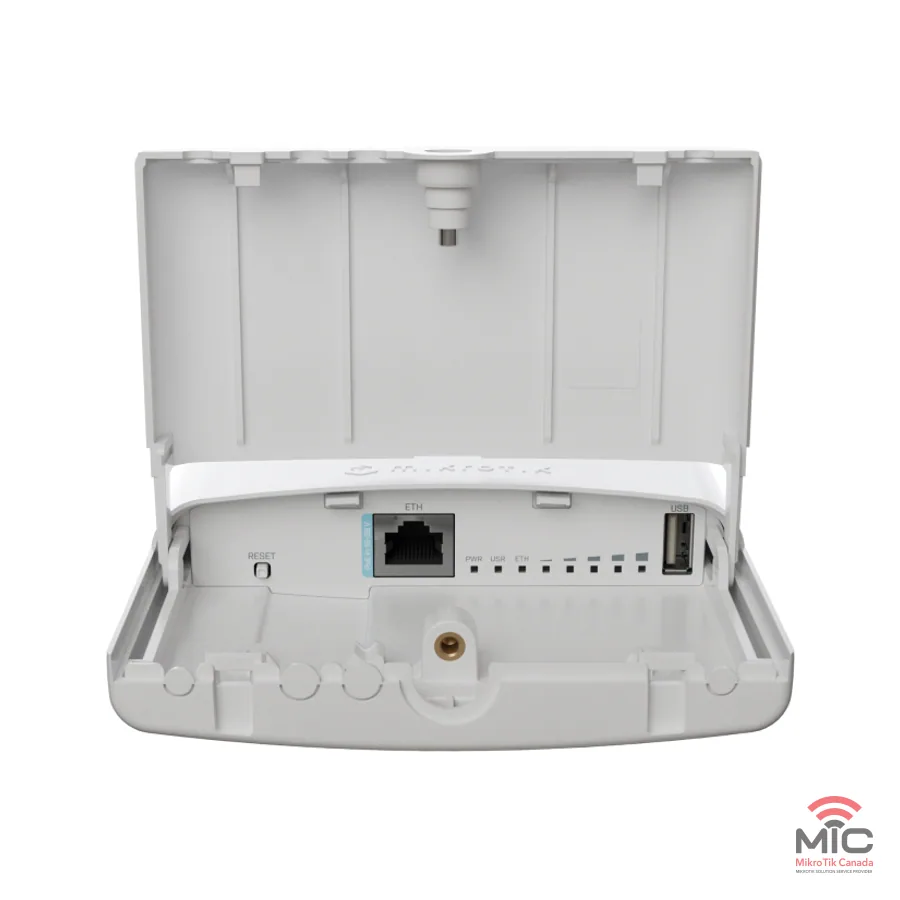

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: L11UG-5HaxD-NB
Wireless systems: Gigabit Ethernet ports, PoE input, Wi-Fi 6 / 6E.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 15 W |
| Max power consumption without attachments | 6 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1.5 |
Wireless
| Item | Value |
|---|---|
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Benchmarks
Ethernet test results: IPQ-5010 one port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.6 | 233.3 | 955.6 | 689.2 | 374.9 |
| Bridging | 25 bridge filter rules | 81.1 | 984.6 | 201.6 | 825.6 | 204.8 | 111.4 |
| Routing | none (fast path) | 81.3 | 987.4 | 219.1 | 897.3 | 398 | 216.5 |
| Routing | 25 simple queues | 81.3 | 987.4 | 178.6 | 731.4 | 181 | 98.5 |
| Routing | 25 ip filter rules | 81.3 | 987.4 | 123.4 | 505.5 | 122.6 | 66.7 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 1.2A power adapter
- Gigabit PoE injector
- Hose clamp 1
- DIN mount (K-27)
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- FCC Grant of Certification (5GHz) (MikroTik)
Other documents
- Safety and regulatory information (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
