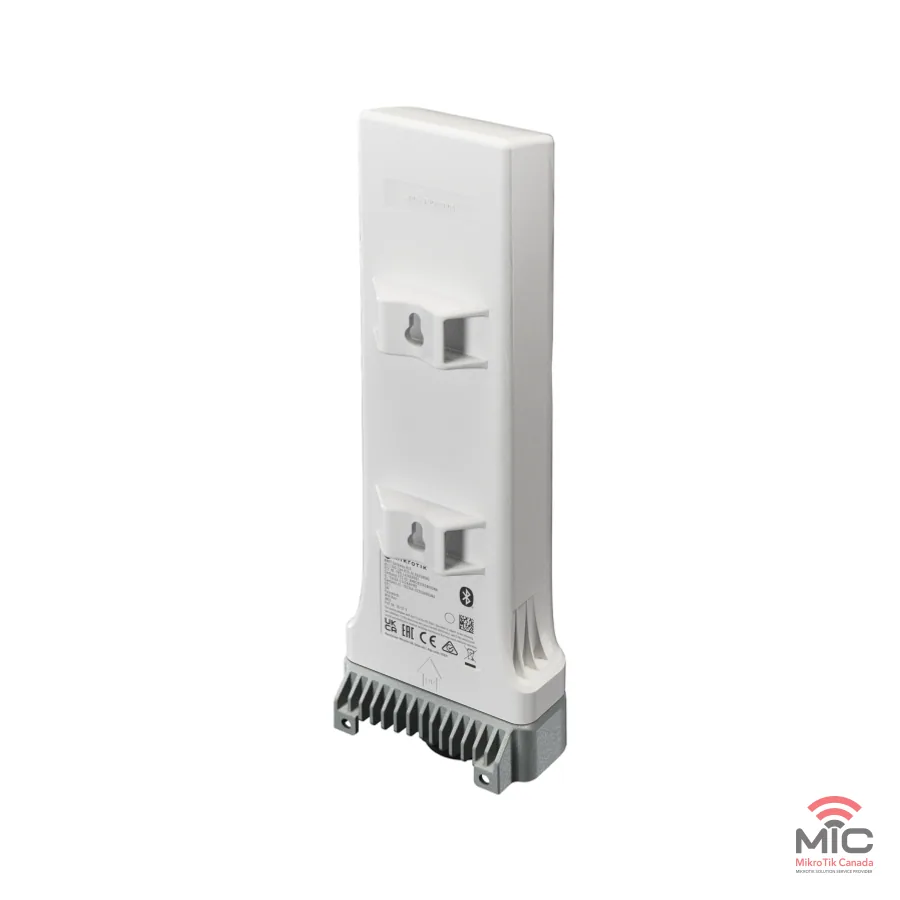

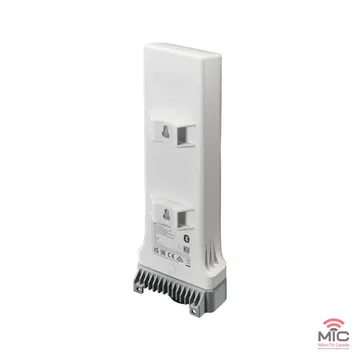

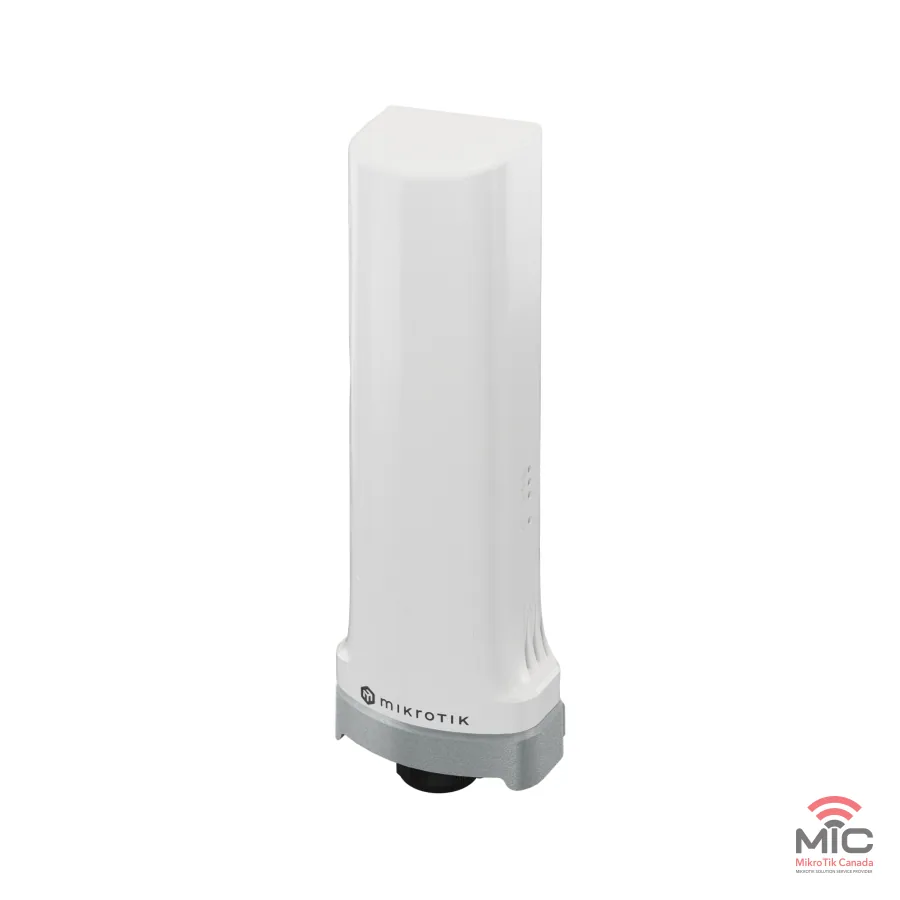

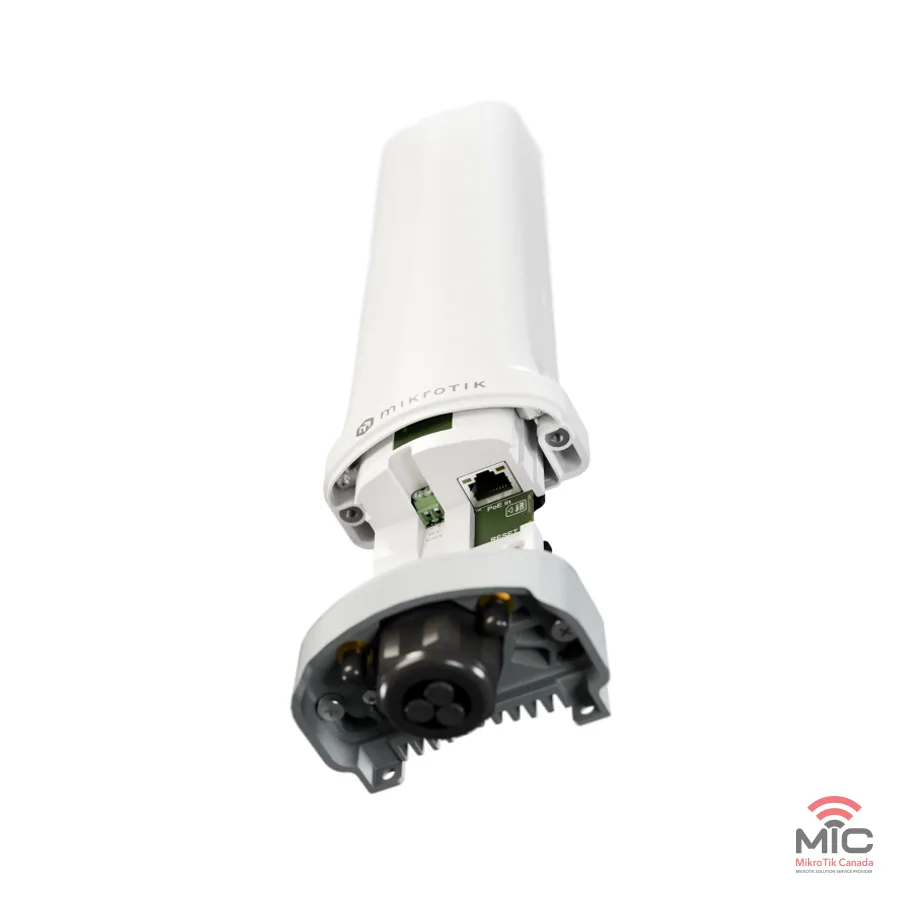

KNOT Gateway HL9
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: L14G-2ax-BT5-HL9&EG800Q
IoT products: Gigabit Ethernet ports, PoE input, Wi-Fi 6 / 6E.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| CPU temperature monitor | Yes |
| Bluetooth version | 5.1 |
| Bluetooth RF connector type | uUFL |
| eSIM | Yes |
| Certification | FCC, IC, EAC |
| IP | 66 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 7 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of SIM slots | 1 Modem (Nano SIM) |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 287 Mbit/s |
| Wireless 2.4 GHz Number of chains | 1 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 3.9 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
Mobile
| Item | Value |
|---|---|
| LTE Category | CAT 1 bis (DL: 10 Mbps; UL: 5 Mbps) |
| MIMO DL | 1x1 |
| MIMO UL | 1x1 |
| LTE FDD bands | 2 (1900 MHz) 4 (1700 MHz) 5 (850 MHz) 12 (700 MHz) 13 (700 MHz) 66 (1700 MHz) |
| TAC | 01688100 |
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24 V 0.5 A power adapter
- Hose clamp 2
- K-66 fastening set
- Gigabit PoE injector
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
