hAP ax lite

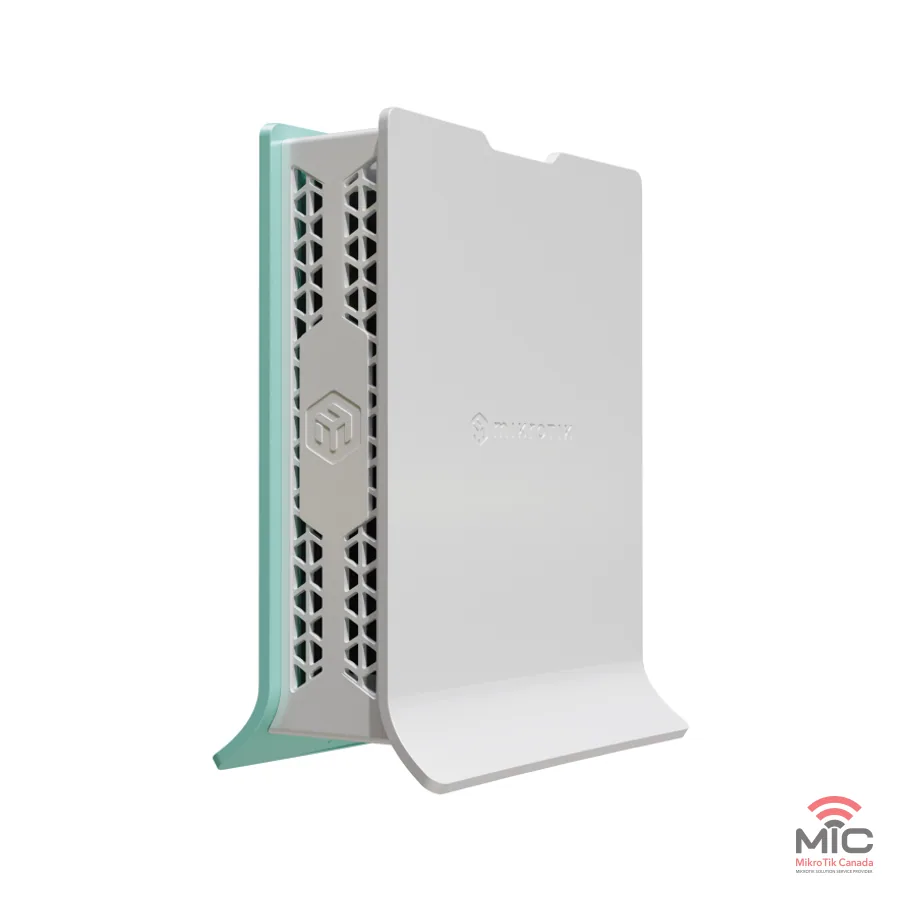

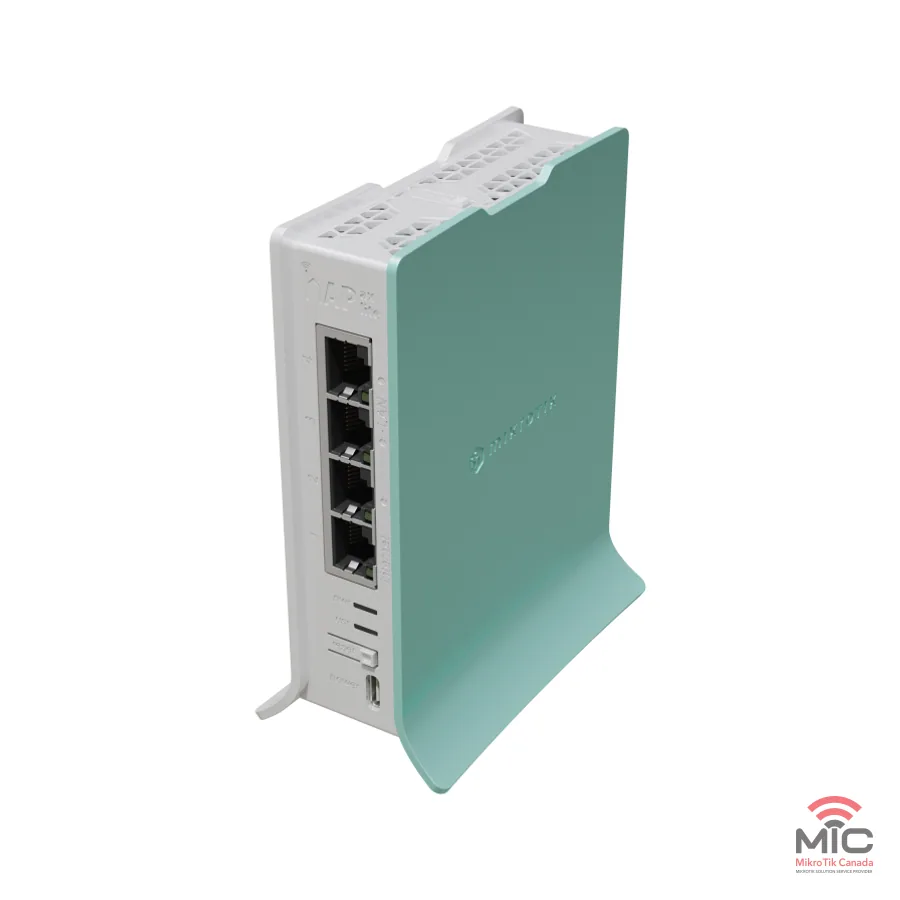

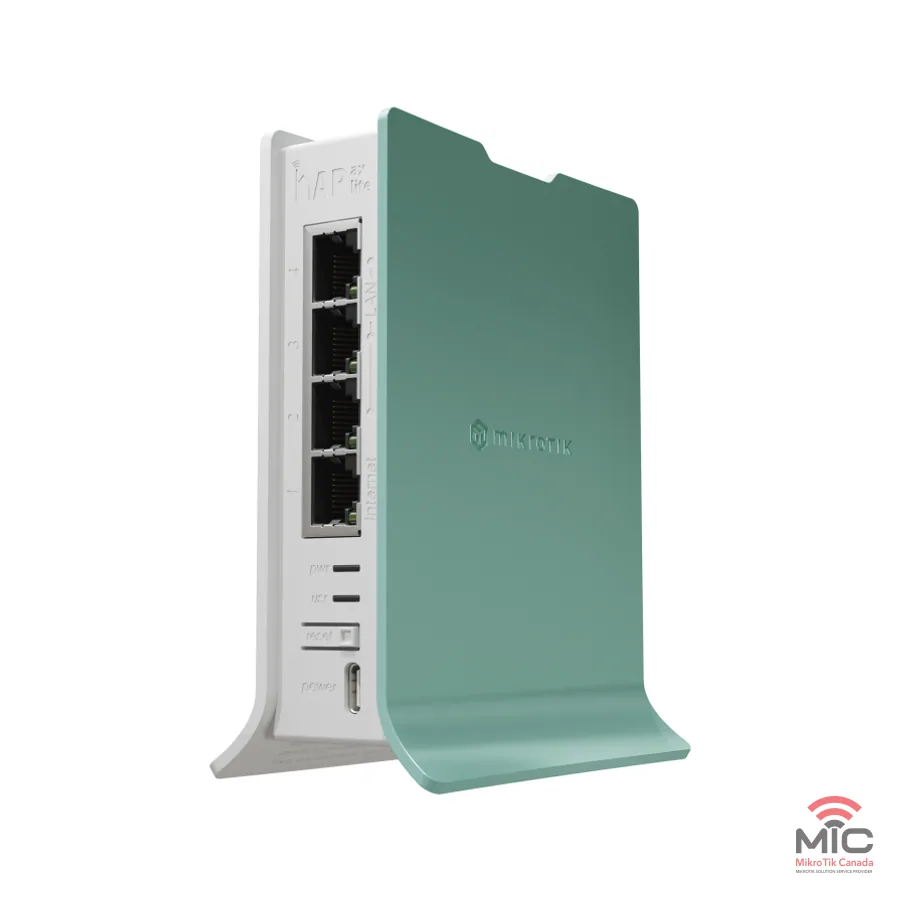

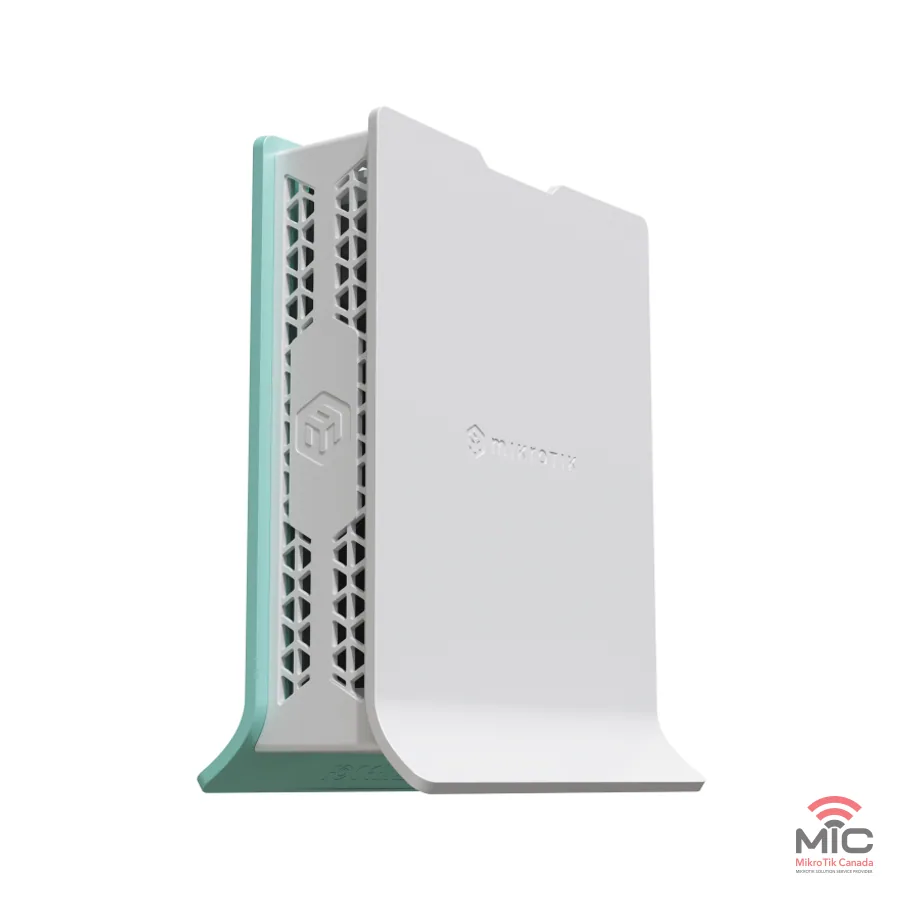

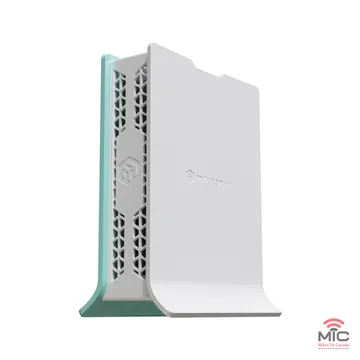

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: L41G-2axD
Wireless for home and office: Gigabit Ethernet ports, Wi-Fi 6 / 6E, Wi-Fi 4 or earlier.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| Switch chip model | MT7531BE |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| Mode button | Yes |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (USB-C) (USB-C) |
| Supported Voltage | 5 V |
| Max power consumption | 8 W |
| Cooling type | Passive |
| USB C input Voltage | 5 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 4 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 4.3 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| WiFi speed | AX600 |
Benchmarks
Ethernet test results: IPQ-5010 all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 202.8 | 2462.8 | 373.2 | 1528.5 | 396.8 | 215.9 |
| Bridging | 25 bridge filter rules | 173.9 | 2112.3 | 175.8 | 719.9 | 181.5 | 98.7 |
| Routing | none (fast path) | 202.8 | 2462.8 | 321.1 | 1315.4 | 348.4 | 189.6 |
| Routing | 25 simple queues | 137.4 | 1668.1 | 140.2 | 574.4 | 141.9 | 77.2 |
| Routing | 25 ip filter rules | 77.9 | 946.5 | 75.8 | 310.5 | 76 | 41.3 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 5V 2.4A 12W USB power adapter
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- FCC 2.4GHz (MikroTik)
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
