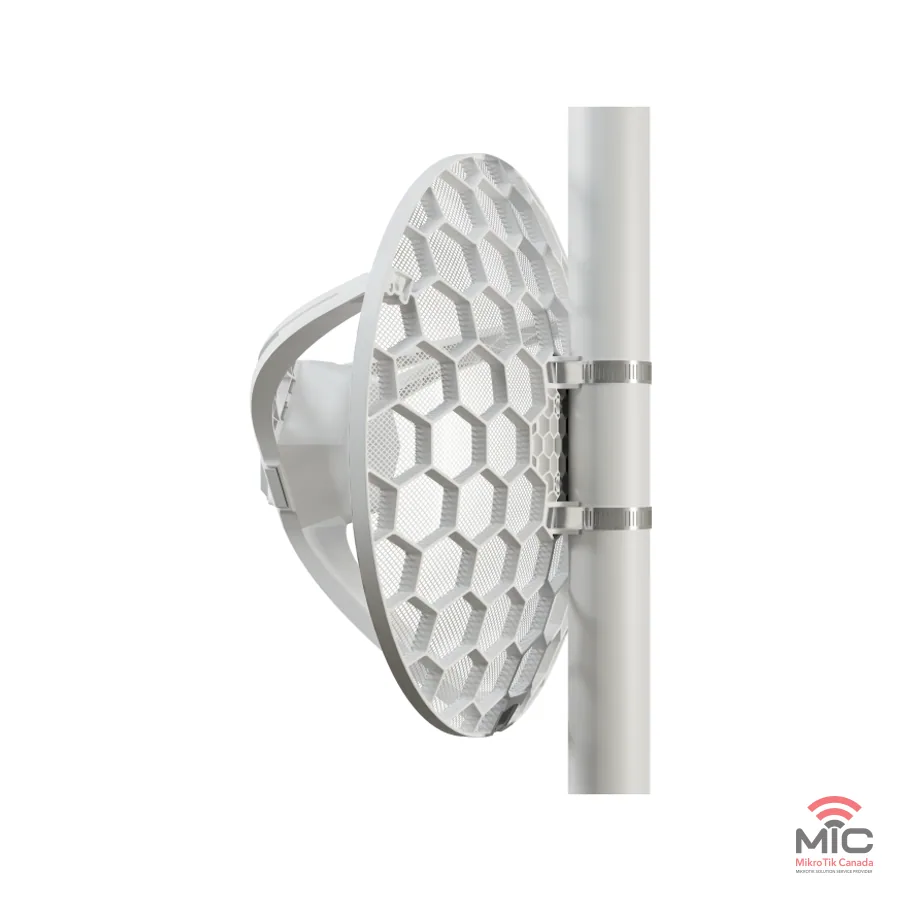

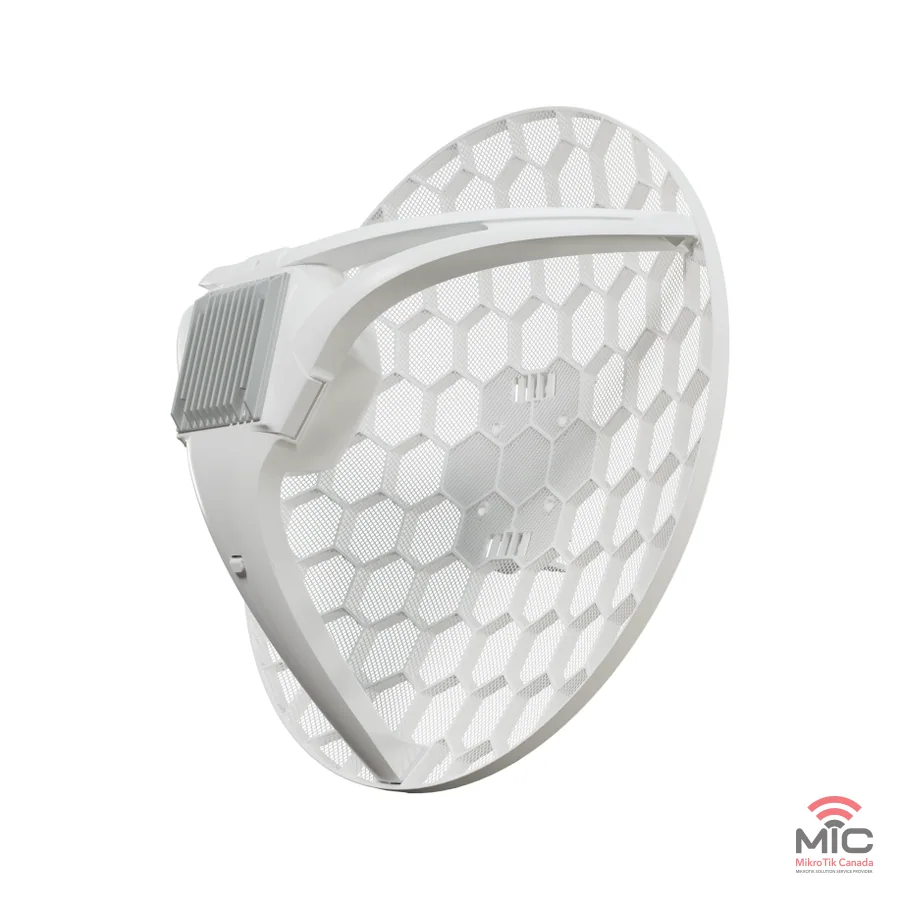

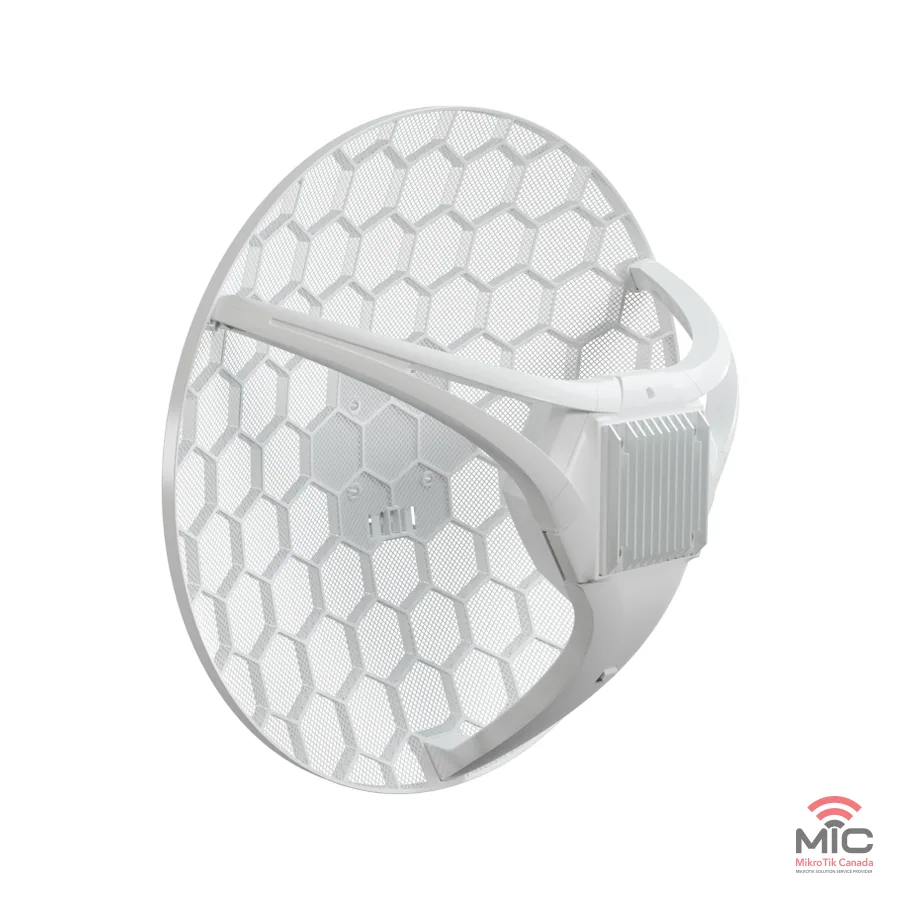

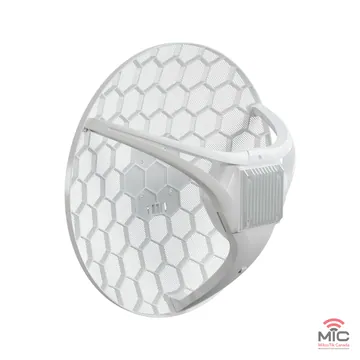

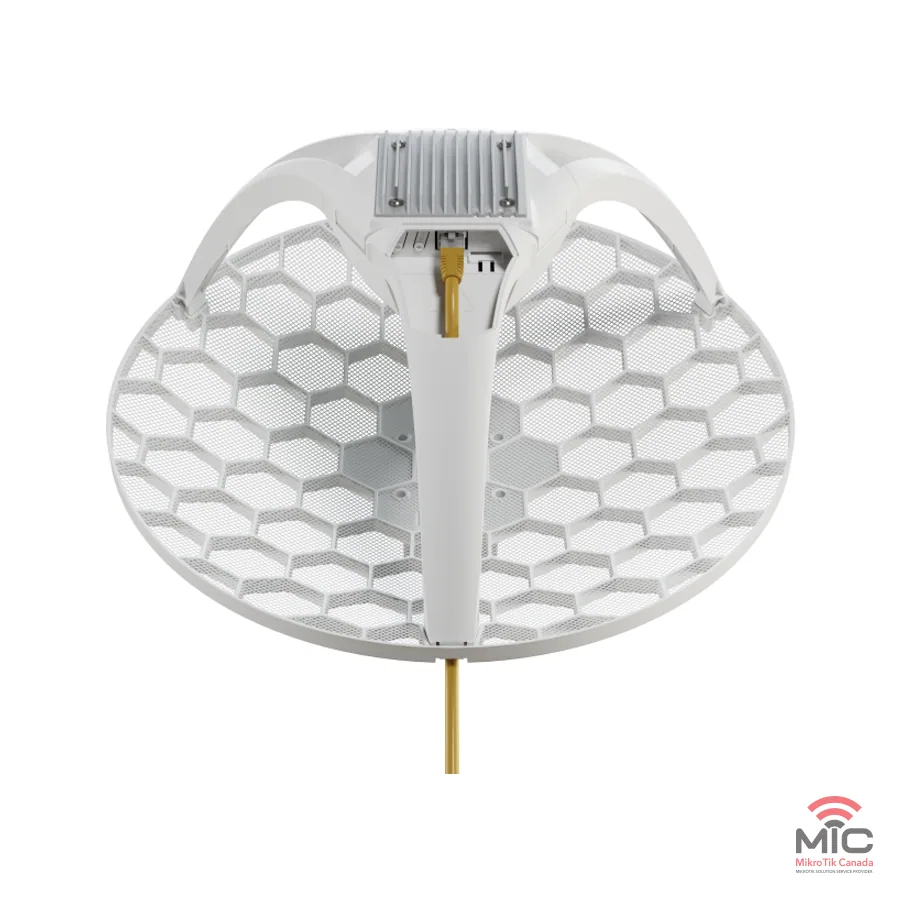

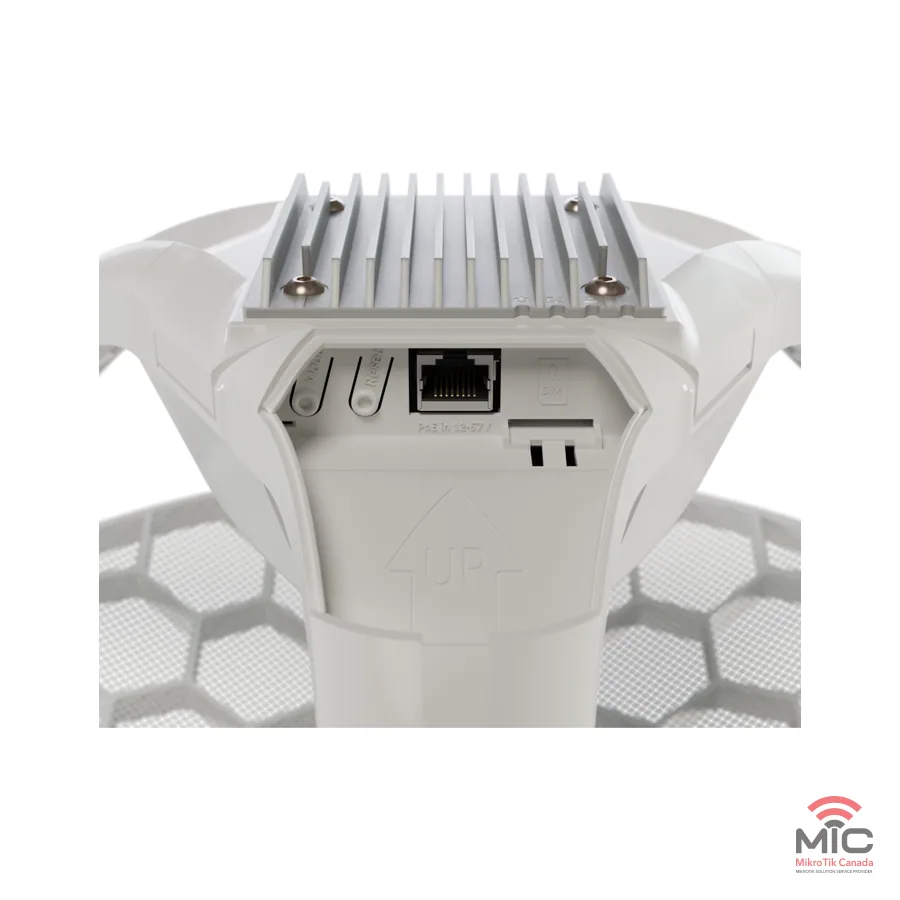

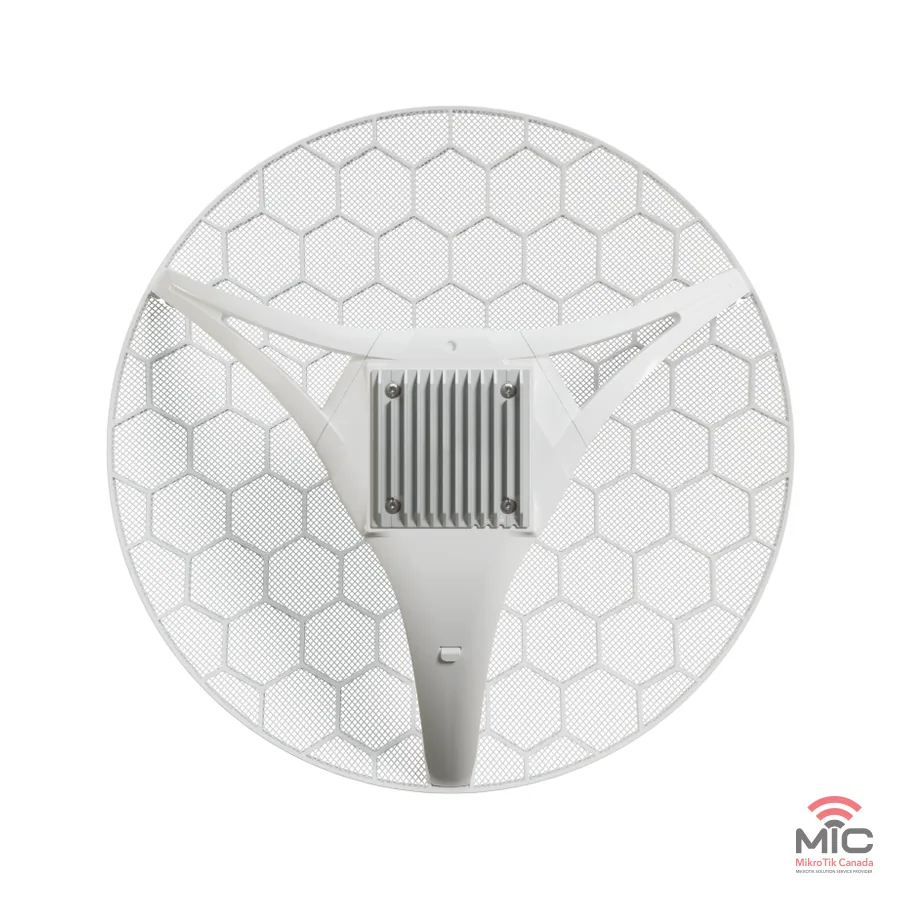

LHGG LTE7 kit
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: LHGGR&R11e-LTE7
LTE/5G products: Gigabit Ethernet ports, PoE input, LTE.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
| IP | 54 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Max power consumption without attachments | 8 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
Mobile
| Item | Value |
|---|---|
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz) |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
Benchmarks
Ethernet test results: 88F3720 1G one port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.3 | 987.3 | 235 | 962.6 | 789.9 | 404.4 |
| Bridging | 25 bridge filter rules | 81.3 | 987.3 | 221.3 | 906.4 | 678.3 | 347.3 |
| Routing | none (fast path) | 81.3 | 987.3 | 235 | 962.6 | 790.4 | 404.7 |
| Routing | 25 simple queues | 81.3 | 987.3 | 235 | 962.6 | 450 | 230.4 |
| Routing | 25 ip filter rules | 81.3 | 987.3 | 219.8 | 900.3 | 219.5 | 112.4 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.8A power adapter
- Gigabit PoE injector
- Hose clamp 2
- K-LHG screw kit
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- Safety and regulatory information (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
