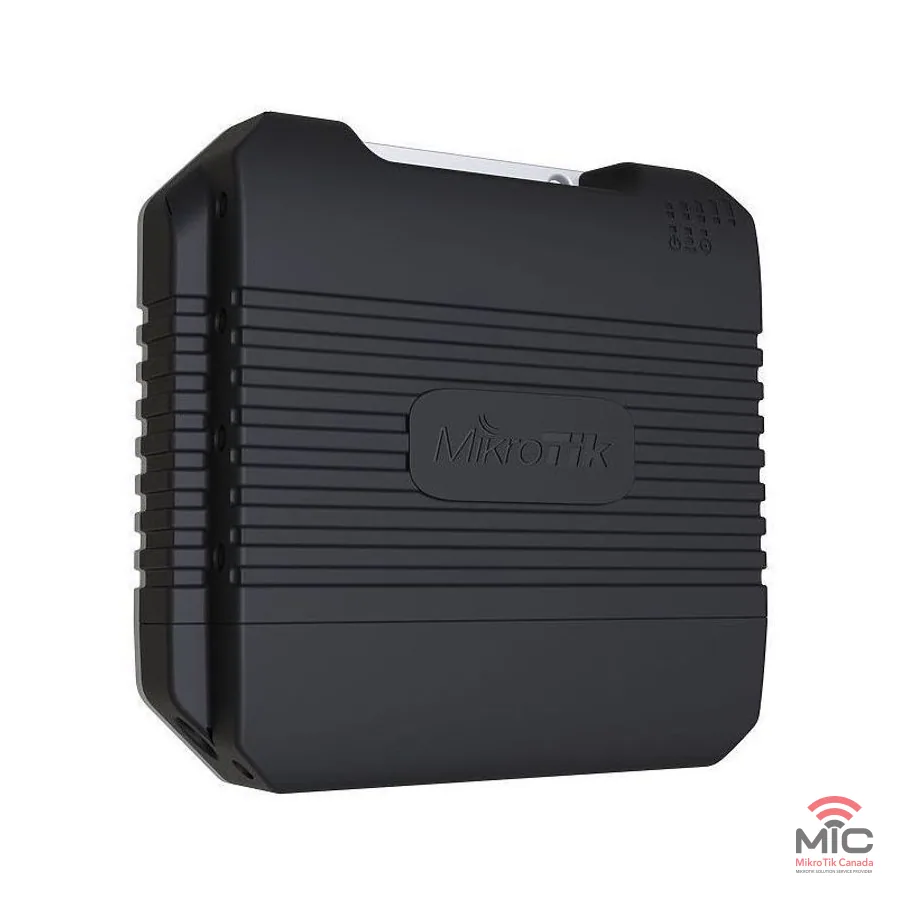

LtAP LTE7 kit
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: LtAP-2HnD&R11e-LTE7 (MikroTik also lists hardware revision LtAP-2HnD&R11e-LTE7r2)
LTE/5G products: Gigabit Ethernet ports, PoE input, Wi-Fi 4 or earlier.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MMIPS |
| CPU | MT7621AT |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GNSS standards | GPS |
| Certification | CE, E-MARK, EAC, ROHS |
| IP | 54 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 12-30 V |
| Automotive input Voltage | 12-27 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 12-30 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of SIM slots | 3 Modem (Mini SIM) |
| MiniPCI-e slots | 2 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | AR9382 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Mobile
| Item | Value |
|---|---|
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz) |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
Benchmarks
Ethernet test results: MT7621A (880Mhz) 1G one port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 717.9 | 367.6 |
| Bridging | 25 bridge filter rules | 81.1 | 984.9 | 133.1 | 545.2 | 133.1 | 68.1 |
| Routing | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 859.5 | 440.1 |
| Routing | 25 simple queues | 81.1 | 984.9 | 116.9 | 478.8 | 119 | 60.9 |
| Routing | 25 ip filter rules | 70.8 | 859.8 | 74.6 | 305.6 | 73.5 | 37.6 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: MT7621A IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 20.7 | 231.8 | 21.5 | 88.1 | 21.3 | 11.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.7 | 6.9 |
| 256 tunnels | AES-128-CBC + SHA256 | 12.2 | 136.6 | 12.4 | 50.8 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 10.5 | 117.6 | 12.6 | 51.6 | 12.4 | 6.7 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 1.2A power adapter

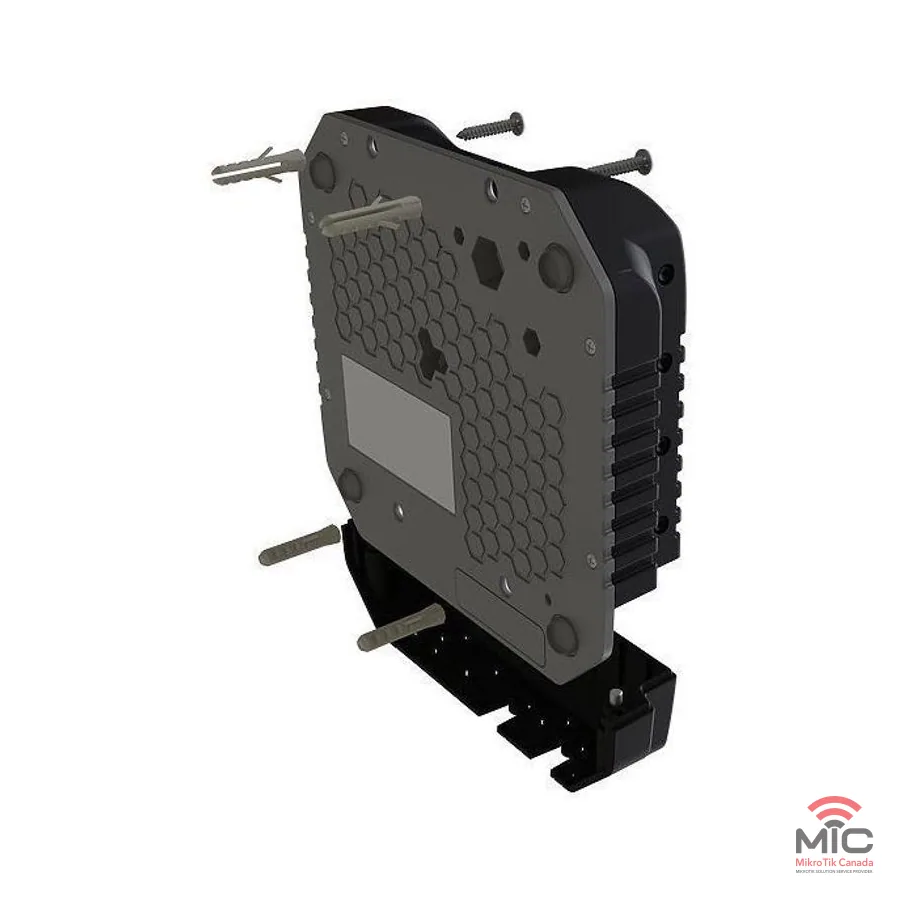

- K-67 fastening set
- 0.35m 4pin Automotive adapter cable
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- Safety and regulatory information (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
