hAP be³ Media

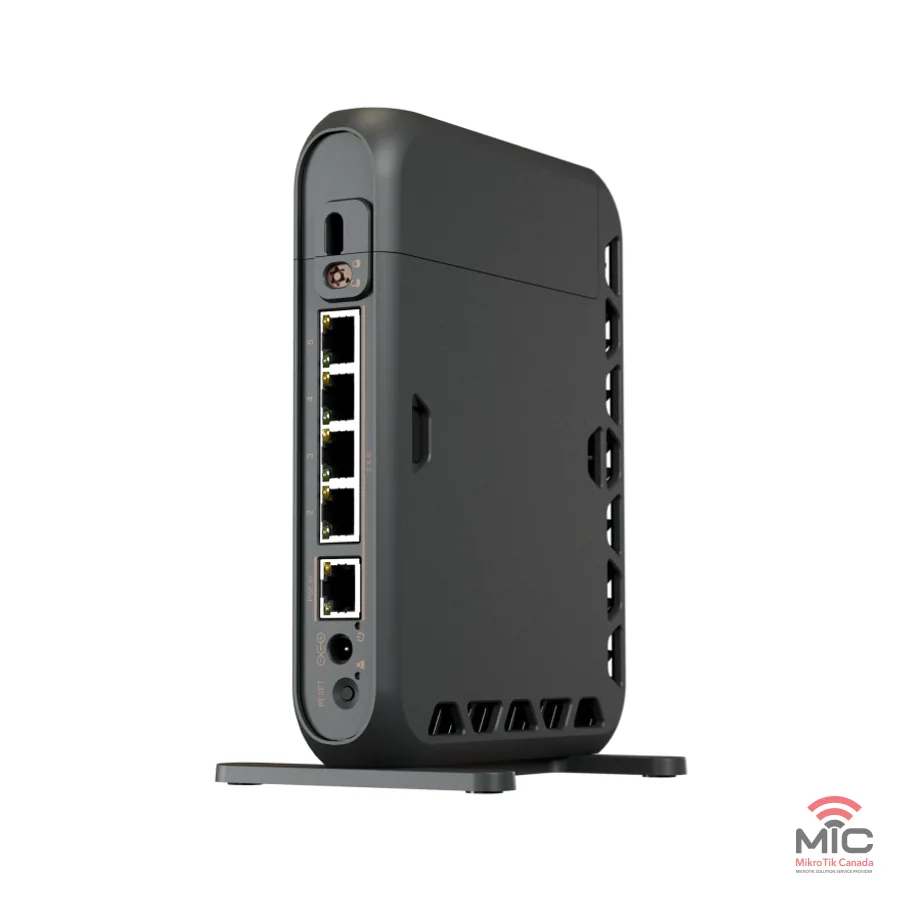

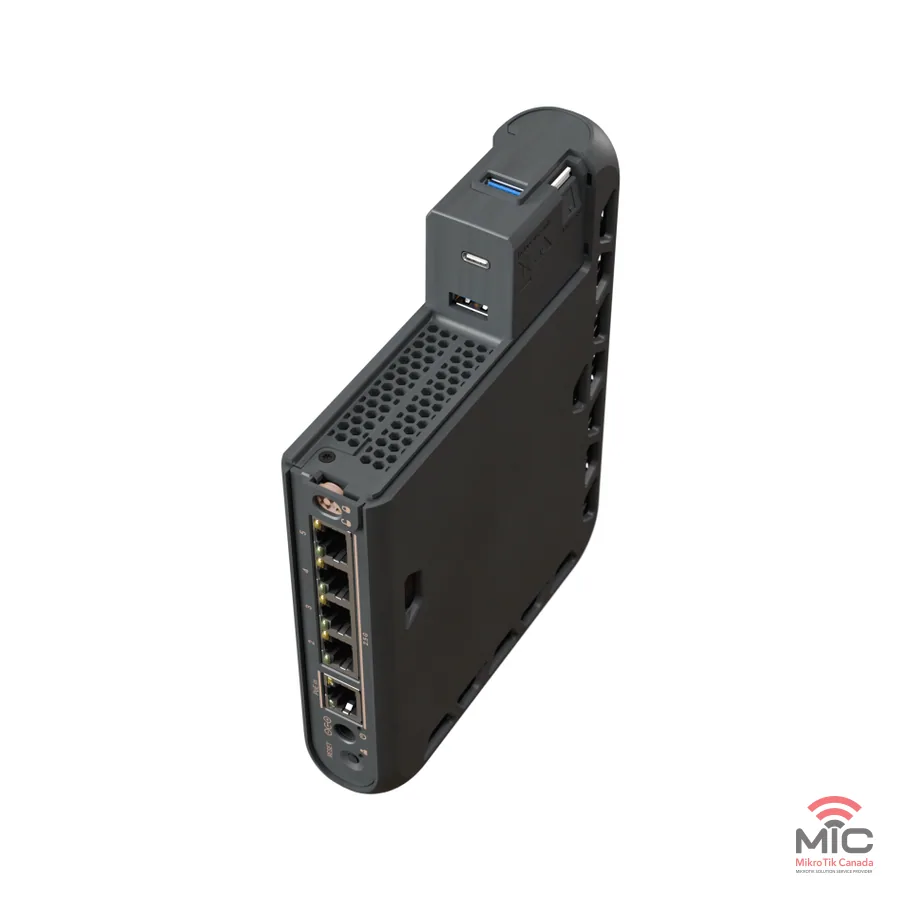

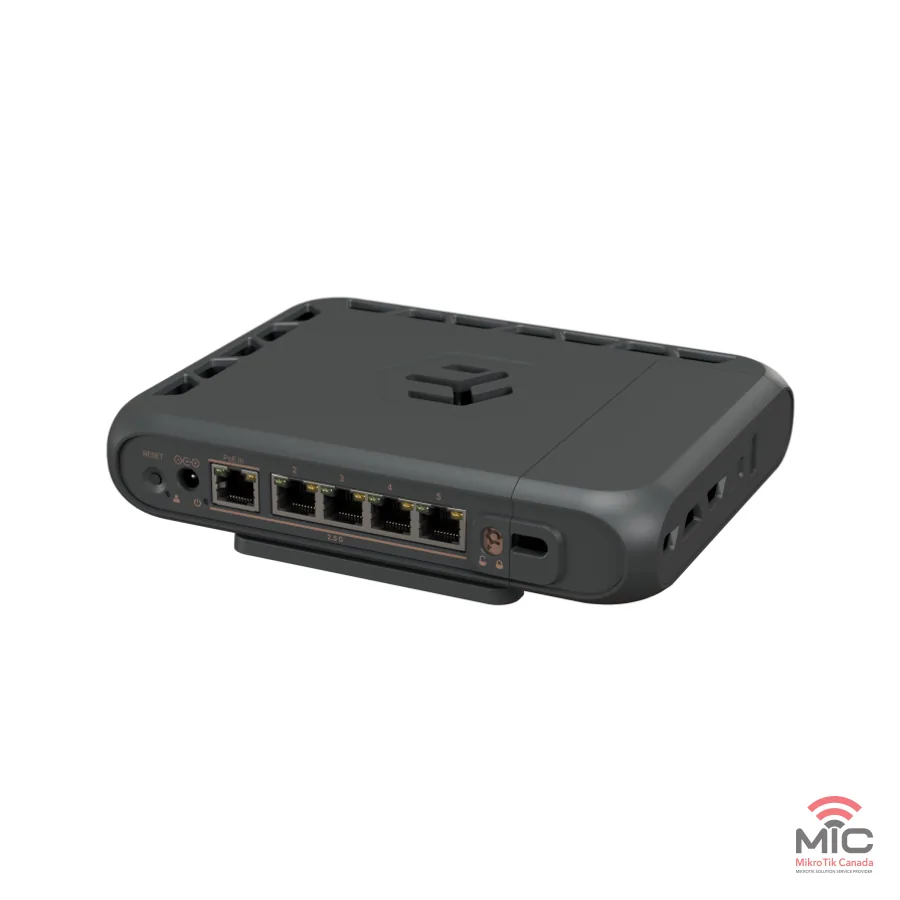

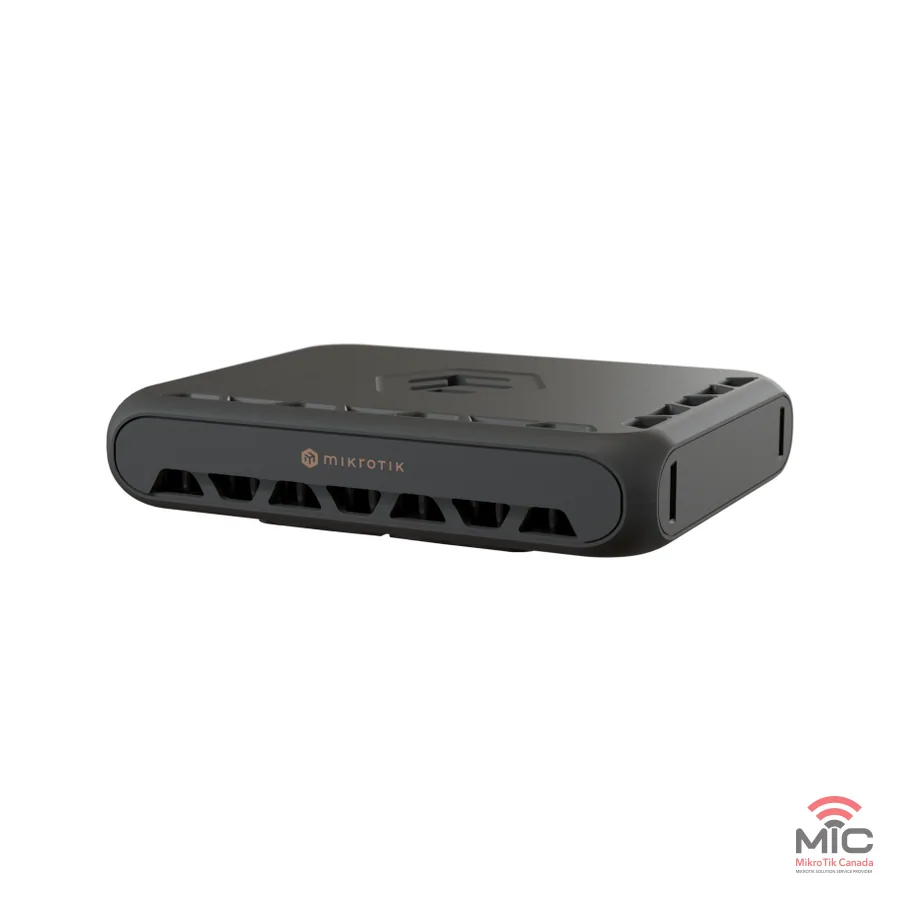

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: MA53UG+HbeH
Wireless for home and office: 2.5 Gbit/s Ethernet ports, PoE input, Wi-Fi 6 / 6E.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 64bit |
| CPU | IPQ-5322 |
| CPU core count | 4 |
| CPU nominal frequency | Up to 1.5 GHz (auto) |
| CPU Threads count | 4 |
| Switch chip model | QCA8386 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 2 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 50°C |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| CPU temperature monitor | Yes |
| Bluetooth version | 5.4 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 20 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 24-57 V |
Ethernet
| Item | Value |
|---|---|
| Number of 2.5G Ethernet ports | 5 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 3 |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 688 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax/be |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | IPQ-5322 |
| Wireless 2.4 GHz generation | Wi-Fi 7 |
| Wireless 5 GHz Max data rate | 2882 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax/be |
| Antenna gain dBi for 5 GHz | 7.5 |
| Wireless 5 GHz chip model | QCM-8083 |
| Wireless 5 GHz generation | Wi-Fi 7 |
| WiFi speed | BE9300 |
| Wireless 6 GHz Max data rate | 5764 Mbit/s |
| Wireless 6 GHz Number of chains | 2 |
| Wireless 6 GHz standards | 802.11ax/be |
| Antenna gain dBi for 6 GHz | 8 |
| Wireless 6 GHz chip model | QXM-8086 |
| Wireless 6 GHz generation | Wi-Fi 7 |
Benchmarks
Ethernet test results: IPQ-5322 all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 400.3 | 4861.2 | 756.6 | 3099 | 853.8 | 437.1 |
| Bridging | 25 bridge filter rules | 321 | 3898.2 | 346.7 | 1420.1 | 435.4 | 222.9 |
| Routing | none (fast path) | 394.2 | 4787.2 | 775.2 | 3175.2 | 916.2 | 469.1 |
| Routing | 25 simple queues | 313.9 | 3812 | 352.9 | 1445.5 | 336.7 | 172.4 |
| Routing | 25 ip filter rules | 279.2 | 3390.6 | 295.1 | 1208.7 | 254.3 | 138.3 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: IPQ-5322 IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 73.1 | 818.7 | 83.8 | 343.2 | 81.1 | 44.1 |
| 256 tunnels | AES-128-CBC + SHA1 | 44.4 | 497.3 | 46.9 | 192.1 | 52.6 | 28.6 |
| 256 tunnels | AES-128-CBC + SHA256 | 44.6 | 499.5 | 49.2 | 201.5 | 53.4 | 29 |
| 256 tunnels | AES-256-CBC + SHA1 | 44.9 | 502.9 | 49.2 | 201.5 | 54.2 | 29.5 |
| 256 tunnels | AES-256-CBC + SHA256 | 45.3 | 507.4 | 50.1 | 205.2 | 53.4 | 29 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- MT Torx (T30 PIN)
- hAP be³ Case Base
- 24V 1.5A power adapter
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- FCC 2.4 GHz (MikroTik)
- FCC 5 GHz (MikroTik)
- FCC 6 GHz (MikroTik)
Other documents
- Safety and regulatory information (MikroTik)
- Base plate mounting (MikroTik)
- Wall mounting (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
