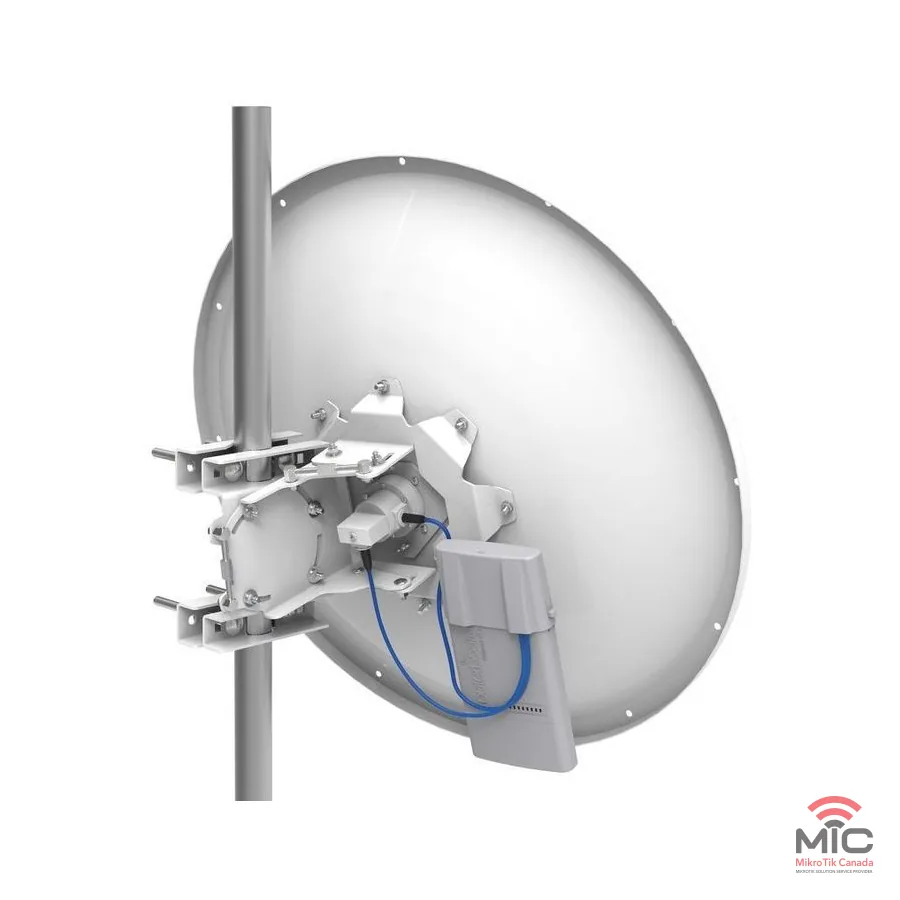

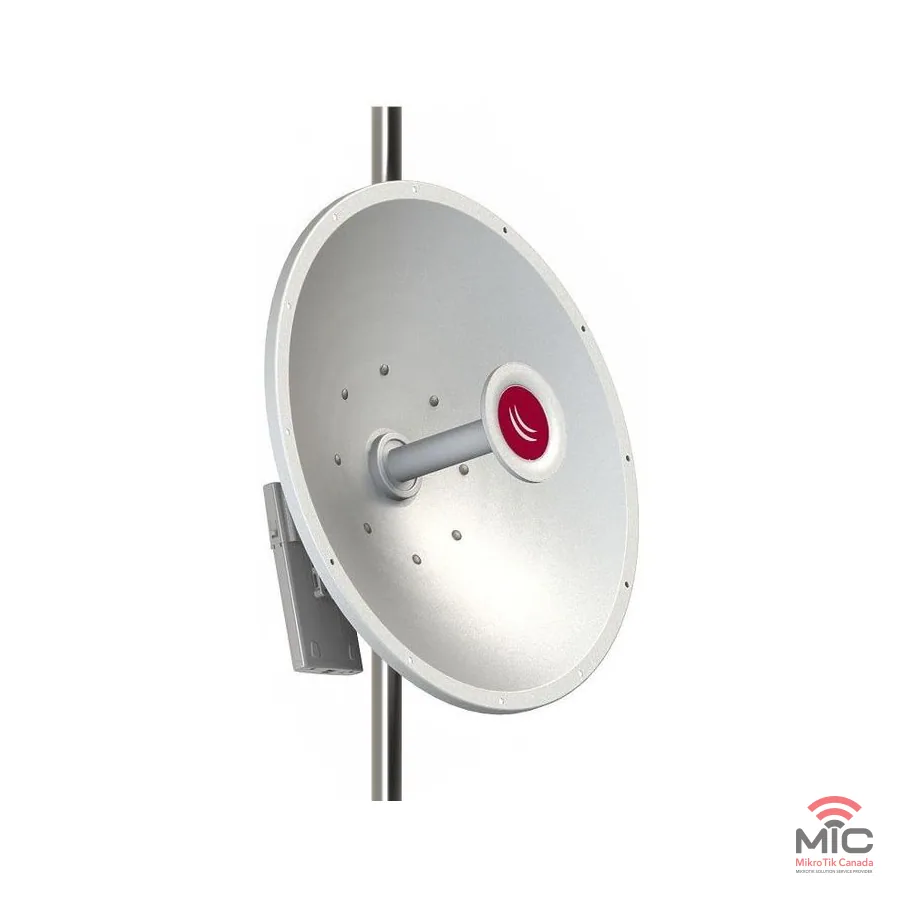

mANT30 PA
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: MTAD-5G-30D3-PA
Antennas.
Availability: see the store. This product was not found in the MikroTik Canada store by its exact product code.
Specifications
| Item | Value |
|---|---|
| Beamwidth | +/-2.5 deg |
| Connector | 2x RP-SMA Female (outside thread) |
| Cross Polarization | >40 dB |
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Elevation adjustment range | +/- 15 deg |
| Frequency Range | 4.7-5.875 GHz |
| Front-to-Back Ratio | >30 dB |
| Impedance | 50 ohms |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | 8.4 kg (18,5) |
| Polarization | Vertical and Horizontal |
| Pole Mount Diameter Range | 3 to 10cm (1.2 to 3.9in) |
| Port to Port Isolation | >40dB min |
| Power Rating | 100W |
| Reflector | Aluminum |
| Standards | EN 302 326 DN1, DN2, DN3, DN5 |
| Tested ambient temperature | -50°C to 80°C(-49°F to 158°F) |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Weight | 5.7kg (12.6 lbs) |
| Wind Load (125 mph) | 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s |
| Wind Survivability | 201kph (125mph) |
| Certification | CE, ROHS |
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Slant instructions (MikroTik)
- Assembly instructions (MikroTik)
- Assembly instructions 2 (MikroTik)
- Quick Guide (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
