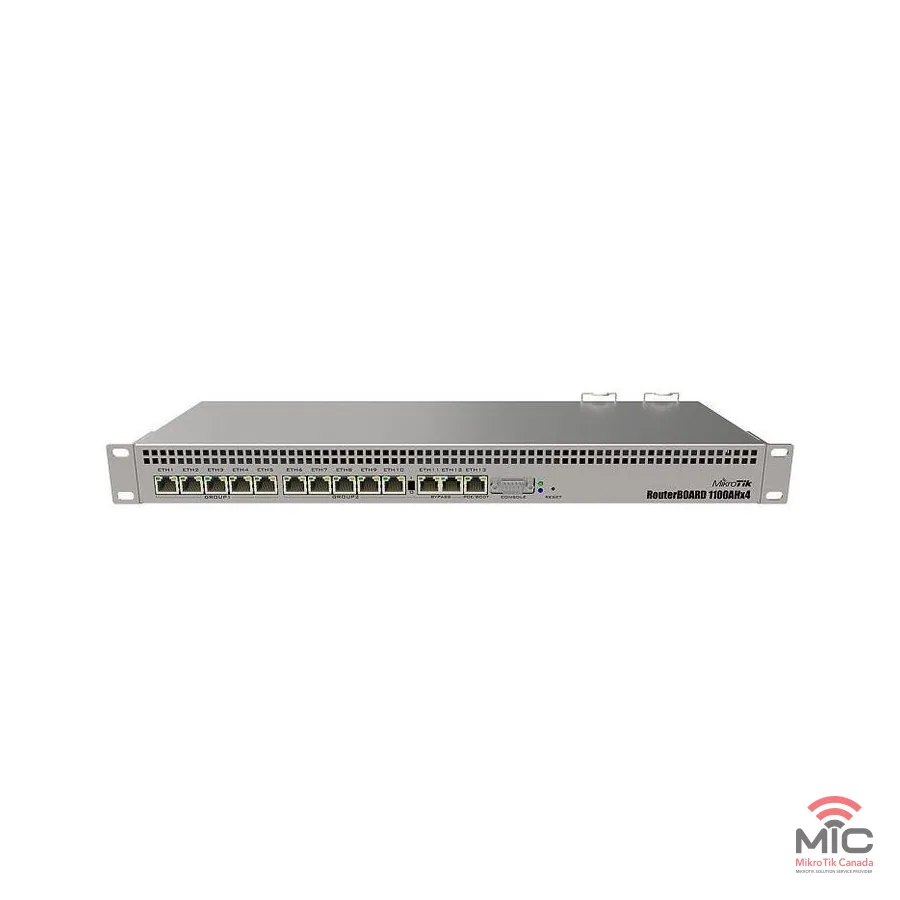

RB1100AHx4
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RB1100x4
Router with 13 x 1 Gbit/s; 4-core AL21400; 1 GB RAM.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| CPU Threads count | 4 |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Powering
| Item | Value |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 20-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Item | Value |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
Benchmarks
Ethernet test results: AL21400 1G all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 606.5 | 7365.3 | 1736.4 | 7112.3 | 5509.7 | 2821 |
| Bridging | 25 bridge filter rules | 606.5 | 7365.3 | 1107.8 | 4537.5 | 1153.2 | 590.4 |
| Routing | none (fast path) | 606.5 | 7365.3 | 1736.4 | 7112.3 | 5092.3 | 2607.3 |
| Routing | 25 simple queues | 606.5 | 7365.3 | 933.6 | 3824 | 960.3 | 491.7 |
| Routing | 25 ip filter rules | 543.7 | 6602.7 | 561.8 | 2301.1 | 564.6 | 289.1 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: AL21400 IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 92.1 | 1031.5 | 93.1 | 381.3 | 92.3 | 47.3 |
| 256 tunnels | AES-128-CBC + SHA1 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-128-CBC + SHA256 | 115.5 | 1293.6 | 117.4 | 480.9 | 132.3 | 67.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 114.6 | 1283.5 | 111.4 | 456.3 | 126.3 | 64.7 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- K10 screw kit
- Rack ears
- 2x IEC cords
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- Quick Guide (2) (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
