RB5009UG+S+IN (RB5009UG+S+IN)

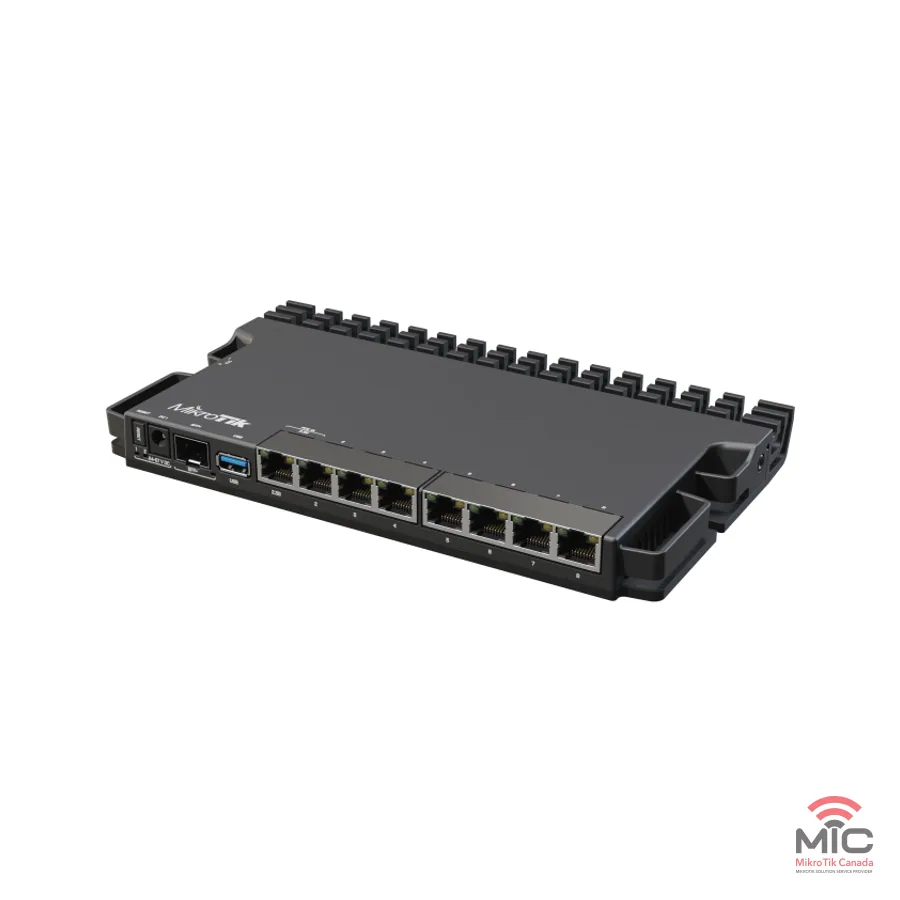

Photograph 1: Three-quarter view from the front: the Ethernet ports, USB port and SFP+ cage on the front panel

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: RB5009UG+S+IN

USD 219.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.

CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 7 x 1 Gbit/s + 1 x 2.5 Gbit/s, 1 x SFP+ (10 Gbit/s); 4-core 88F7040; 1 GB RAM.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Featured in Router and firewall.

Specifications

Specifications for RB5009UG+S+IN
Item	Value
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
CPU Threads count	4
Switch chip model	88E6393
Dimensions	220 x 125 x 22 mm
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
CPU temperature monitor	Yes
Certification	CE, EAC, ROHS

Powering

Powering for RB5009UG+S+IN
Item	Value
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	25 W
Max power consumption without attachments	14 W
PoE in	802.3af/at
Cooling type	Passive
PoE in input Voltage	24-57 V

Ethernet

Ethernet for RB5009UG+S+IN
Item	Value
10/100/1000 Ethernet ports	7
Number of 2.5G Ethernet ports	1

Fibre

Fibre for RB5009UG+S+IN
Item	Value
SFP+ ports	1

Peripherals

Peripherals for RB5009UG+S+IN
Item	Value
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5

Benchmarks

Ethernet test results: 88F7040 all port test

Ethernet test results for RB5009UG+S+IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	811.2	9851.4	2332	9551.9	5768.4	3138
Bridging	25 bridge filter rules	811.2	9851.4	1238.3	5072.2	1235.6	672.2
Routing	none (fast path)	811.2	9851.4	2332	9551.9	4969.4	2703.3
Routing	25 simple queues	811.2	9851.4	1126	4612	1095	595.7
Routing	25 ip filter rules	771.2	9365.6	755.9	3096.2	761	414

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: 88F7040 IPsec throughput

IPsec test results for RB5009UG+S+IN
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	120.9	1354.1	119.4	489.1	124.3	63.6
256 tunnels	AES-128-CBC + SHA1	126.5	1416.8	125.3	513.2	120.3	61.6
256 tunnels	AES-128-CBC + SHA256	126.5	1416.8	125.3	513.2	120.3	61.6
256 tunnels	AES-256-CBC + SHA1	125.8	1409	123.2	504.6	114.3	58.5
256 tunnels	AES-256-CBC + SHA256	125.8	1409	123.2	504.6	114.3	58.5

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

K-55 screw kit
24V 1.5A power adapter

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Brochure (MikroTik)

Guides and manuals

Quick Guide (MikroTik)
User Manual (MikroTik)

Diagrams and dimensions

Block Diagram (MikroTik)
Dimensions (MikroTik)

Certificates and compliance

Declaration of conformity (MikroTik)

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
