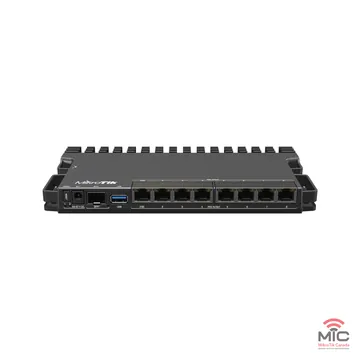

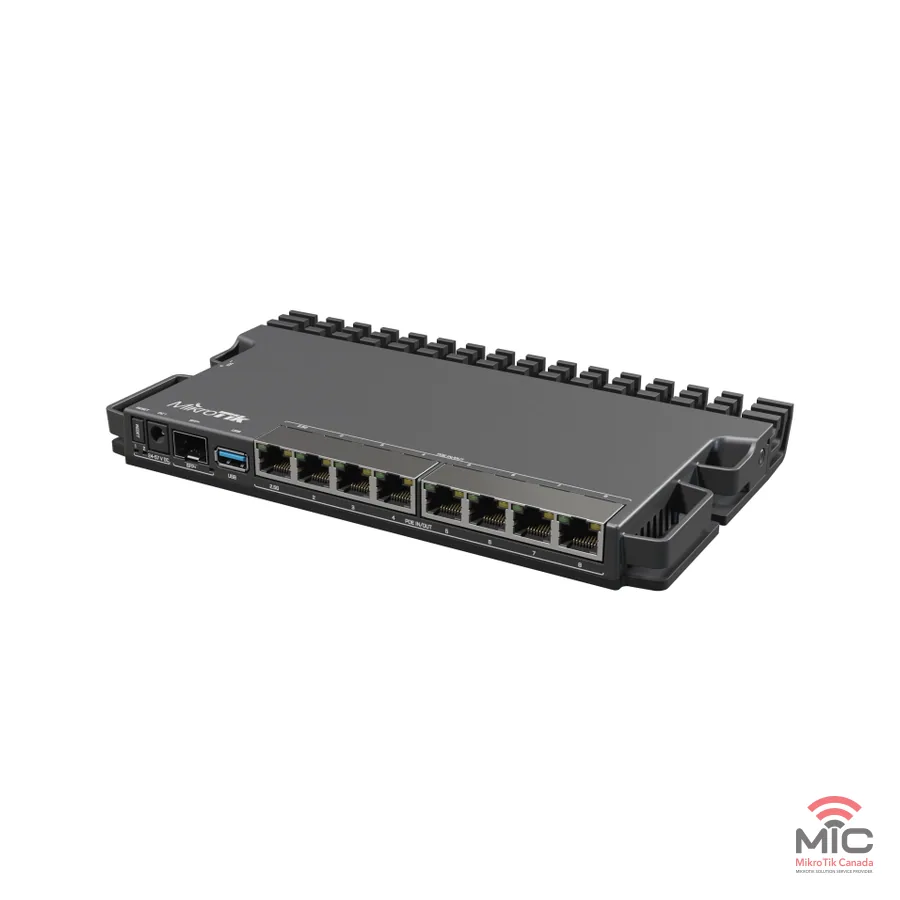

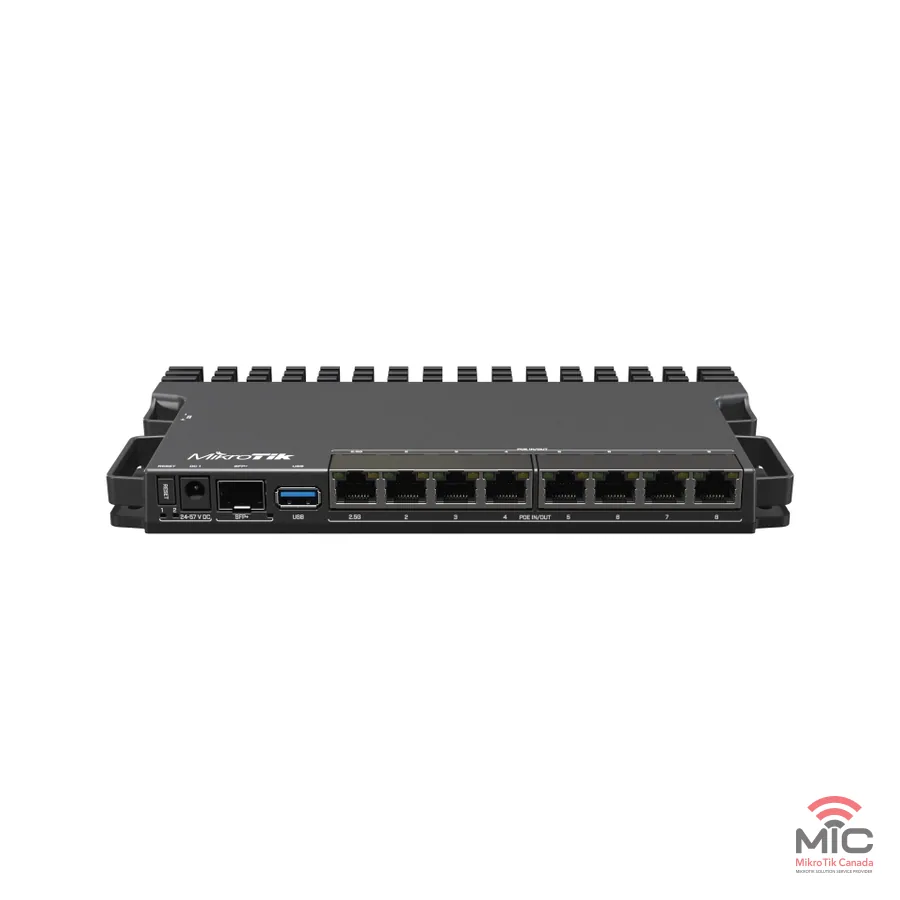

RB5009UPr+S+IN
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RB5009UPr+S+IN
Router with 7 x 1 Gbit/s + 1 x 2.5 Gbit/s, 1 x SFP+ (10 Gbit/s); 4-core 88F7040; 1 GB RAM; PoE output listed.
Availability: see the store.
Featured in Router and firewall.
Specifications
| Item | Value |
|---|---|
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| CPU Threads count | 4 |
| Switch chip model | 88E6393 |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 24-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 150 W |
| Max power consumption without attachments | 16 W |
| PoE in | 802.3af/at (ether1), Mode B (ether2-ether8) |
| Cooling type | Passive |
| PoE in input Voltage | 24-57 V |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 900 mA |
| High voltage PoE-Out current limit | 440 mA |
| Max total out (A) | 2.59 A |
| Total output current | 2.28 |
| Total output power | 130 |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 7 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) | 1 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1.5 |
Benchmarks
Ethernet test results: 88F7040 all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 811.2 | 9851.4 | 2332 | 9551.9 | 5768.4 | 3138 |
| Bridging | 25 bridge filter rules | 811.2 | 9851.4 | 1238.3 | 5072.2 | 1235.6 | 672.2 |
| Routing | none (fast path) | 811.2 | 9851.4 | 2332 | 9551.9 | 4969.4 | 2703.3 |
| Routing | 25 simple queues | 811.2 | 9851.4 | 1126 | 4612 | 1095 | 595.7 |
| Routing | 25 ip filter rules | 771.2 | 9365.6 | 755.9 | 3096.2 | 761 | 414 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
IPsec test results: 88F7040 IPsec throughput
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 120.9 | 1354.1 | 119.4 | 489.1 | 124.3 | 63.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 126.5 | 1416.8 | 125.3 | 513.2 | 120.3 | 61.6 |
| 256 tunnels | AES-128-CBC + SHA256 | 126.5 | 1416.8 | 125.3 | 513.2 | 120.3 | 61.6 |
| 256 tunnels | AES-256-CBC + SHA1 | 125.8 | 1409 | 123.2 | 504.6 | 114.3 | 58.5 |
| 256 tunnels | AES-256-CBC + SHA256 | 125.8 | 1409 | 123.2 | 504.6 | 114.3 | 58.5 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.

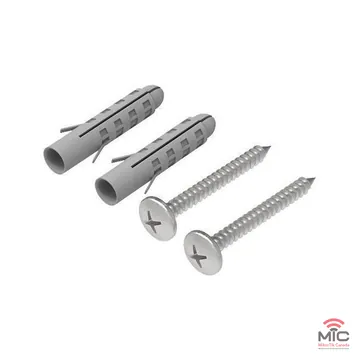

K-55 screw kit- IEC cord

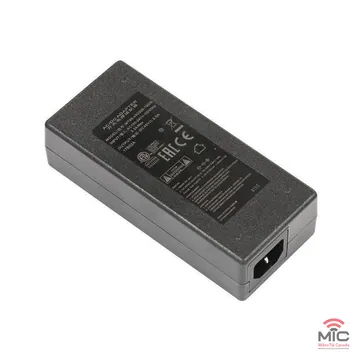

48V2A96W- Connector plug
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
- Dimensions (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
