RB5009UPr+S+OUT

RB5009UPr+S+OUT

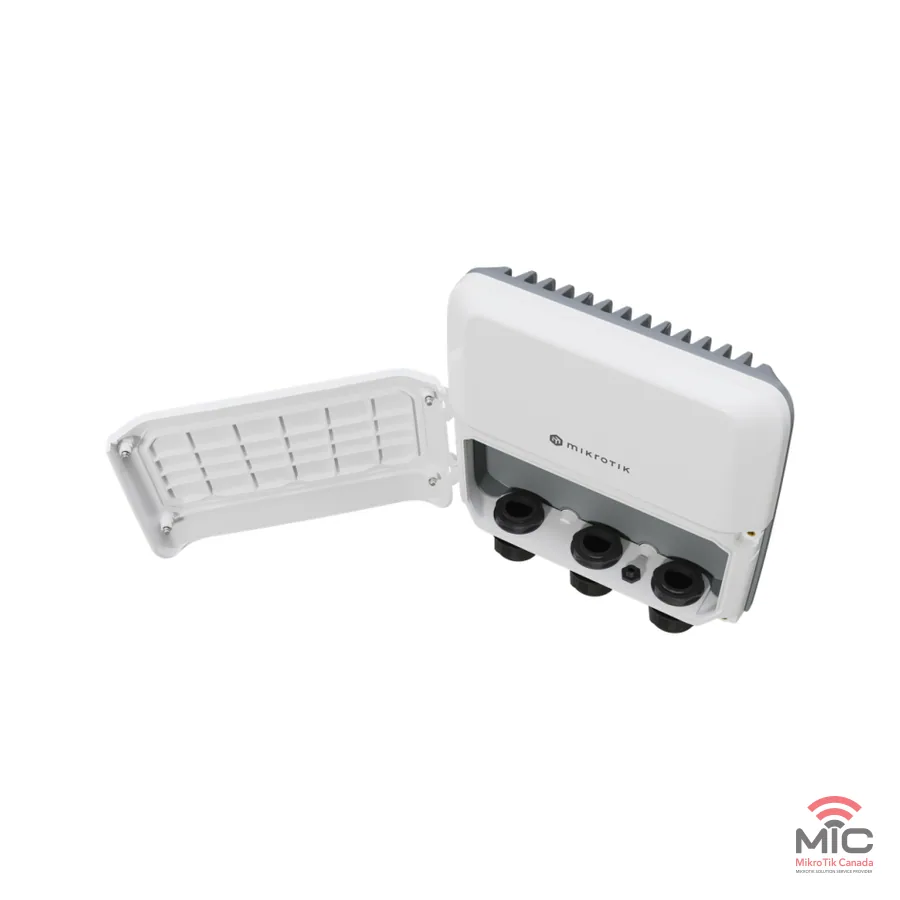

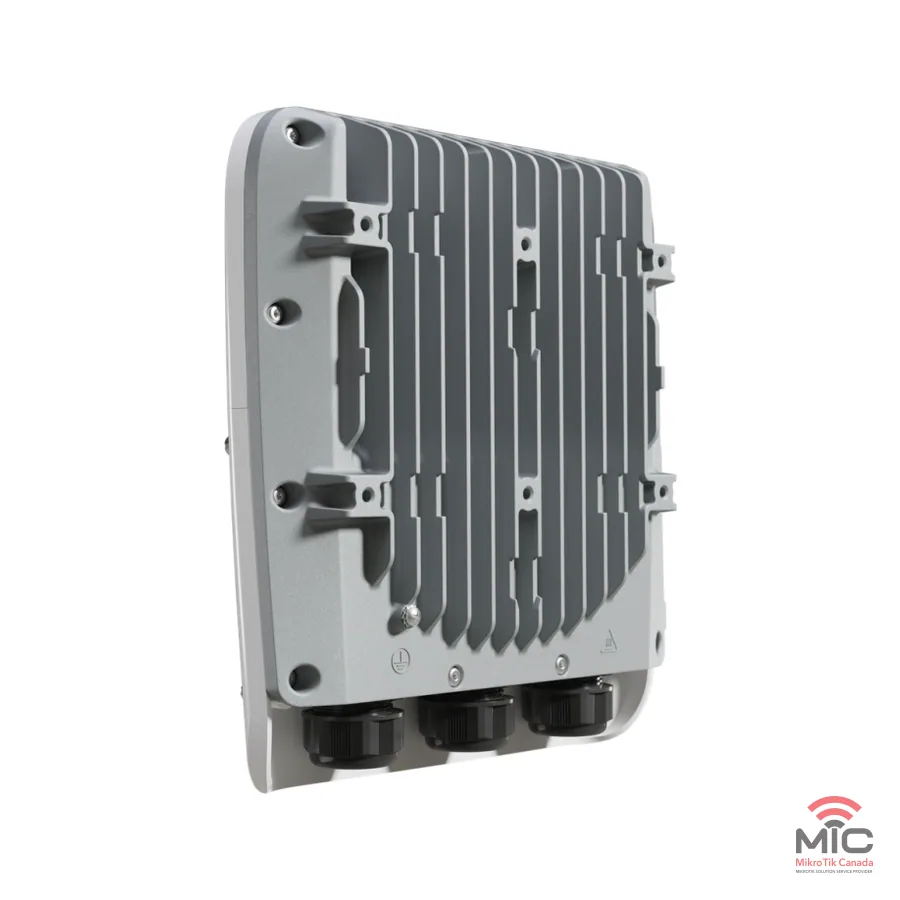

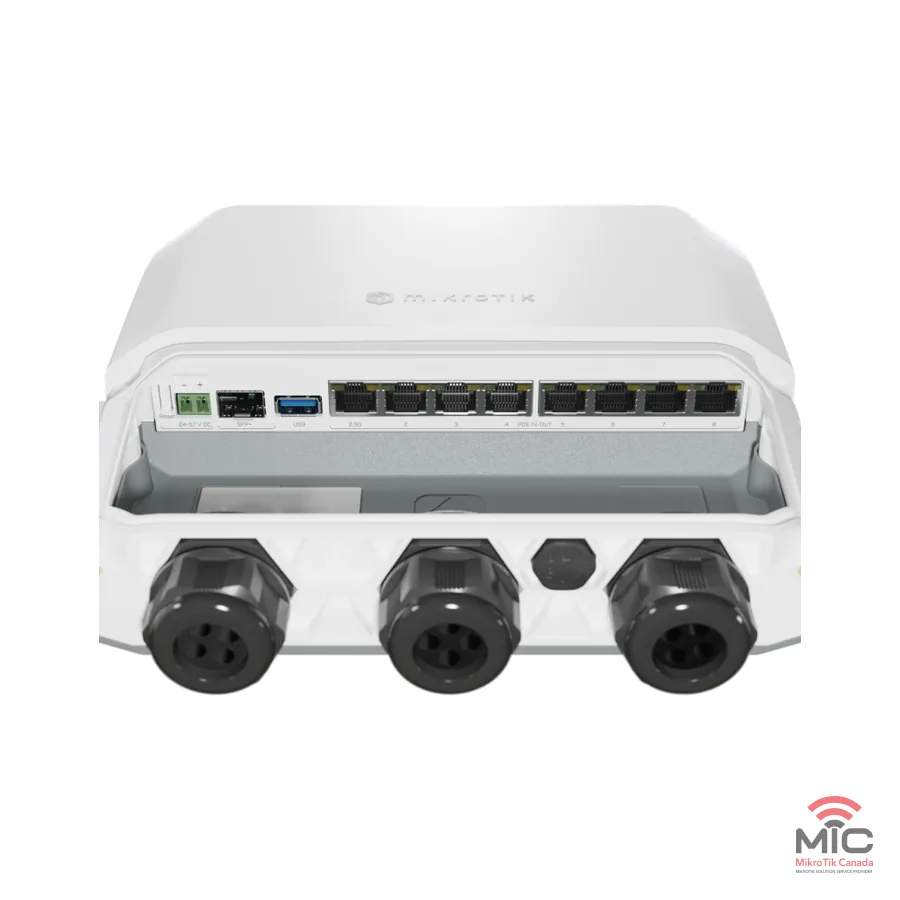

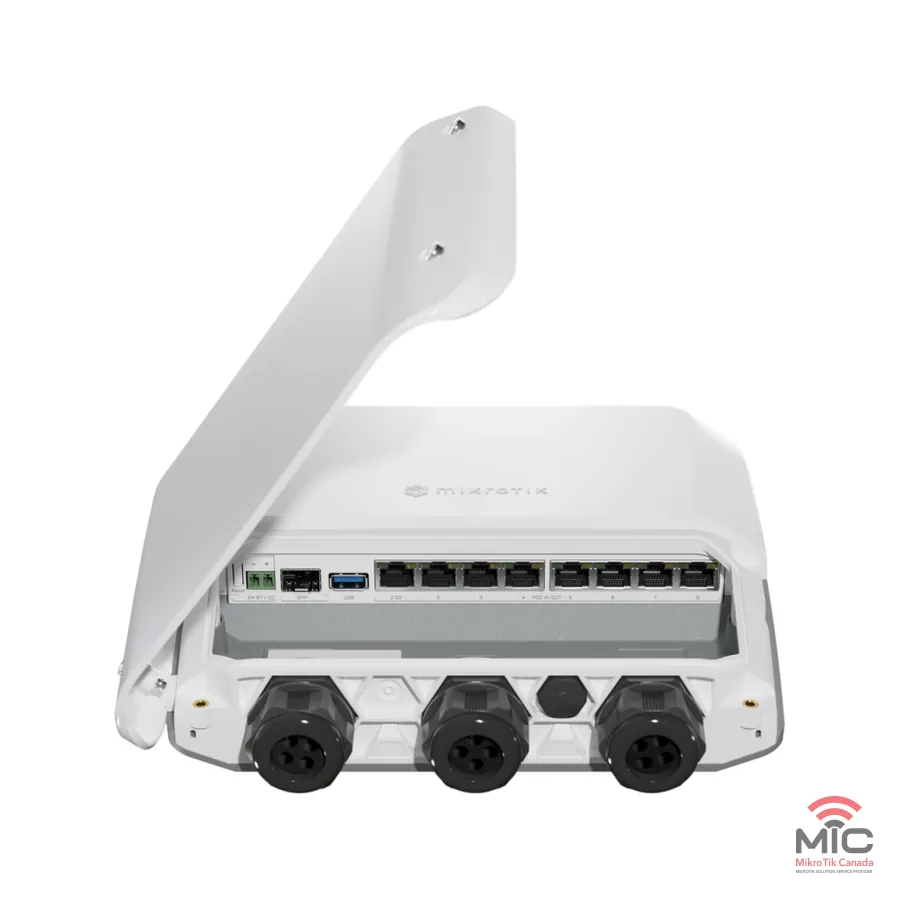

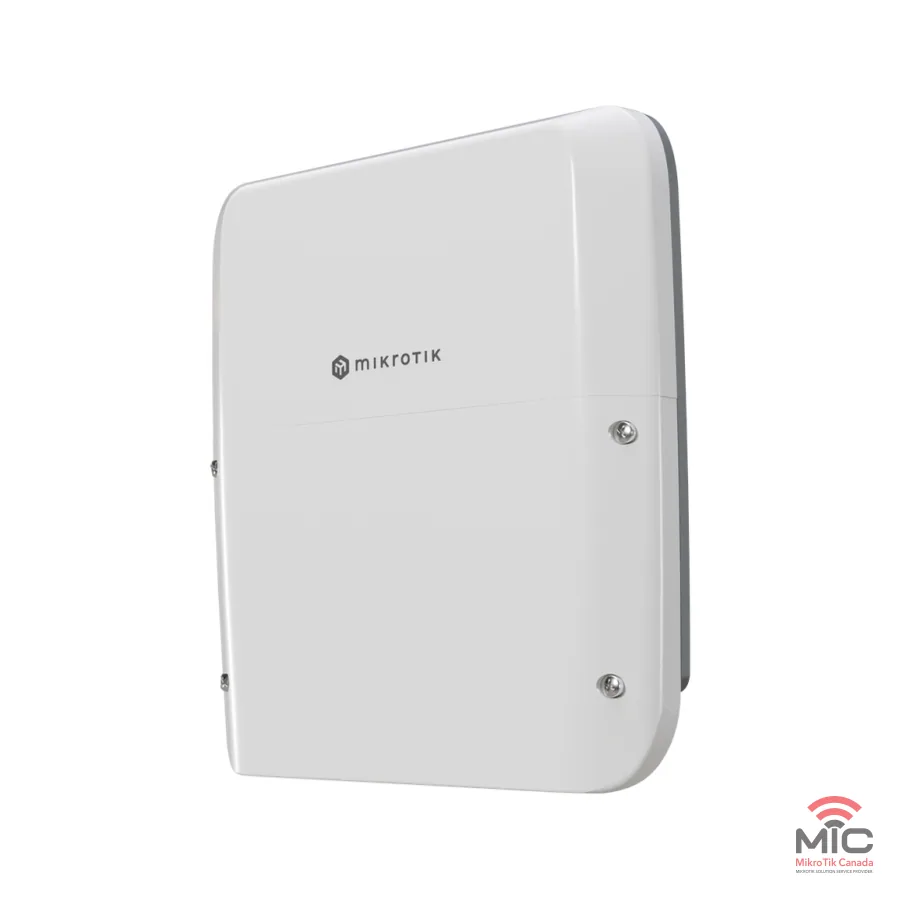

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: RB5009UPr+S+OUT

USD 319.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 7 x 1 Gbit/s + 1 x 2.5 Gbit/s, 1 x SFP+ (10 Gbit/s); 4-core 88F7040; 1 GB RAM; PoE output listed.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

ItemValue
ArchitectureARM 64bit
CPU88F7040
CPU core count4
CPU nominal frequency350-1400 (auto) MHz
CPU Threads count4
Switch chip model88E6393
RouterOS license5
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size1 GB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IP66

Powering

ItemValue
Number of DC inputs2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage24-57 V
Max power consumption150 W
Max power consumption without attachments15 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage24-57 V
PoE-out portsEther1-Ether8
PoE out802.3af/at
Low voltage PoE-Out current limit900 mA
High voltage PoE-Out current limit440 mA
Max total out (A)2.59 A
Total output current2.28
Total output power130

Ethernet

ItemValue
10/100/1000 Ethernet ports7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)7
Number of 2.5G Ethernet ports1
Number of 2.5G Ethernet ports with PoE-out1

Fibre

ItemValue
SFP+ ports1

Peripherals

ItemValue
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1.5

Benchmarks

Ethernet test results: 88F7040 all port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)811.29851.423329551.95768.43138
Bridging25 bridge filter rules811.29851.41238.35072.21235.6672.2
Routingnone (fast path)811.29851.423329551.94969.42703.3
Routing25 simple queues811.29851.4112646121095595.7
Routing25 ip filter rules771.29365.6755.93096.2761414

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: 88F7040 IPsec throughput

ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA1120.91354.1119.4489.1124.363.6
256 tunnelsAES-128-CBC + SHA1126.51416.8125.3513.2120.361.6
256 tunnelsAES-128-CBC + SHA256126.51416.8125.3513.2120.361.6
256 tunnelsAES-256-CBC + SHA1125.81409123.2504.6114.358.5
256 tunnelsAES-256-CBC + SHA256125.81409123.2504.6114.358.5

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

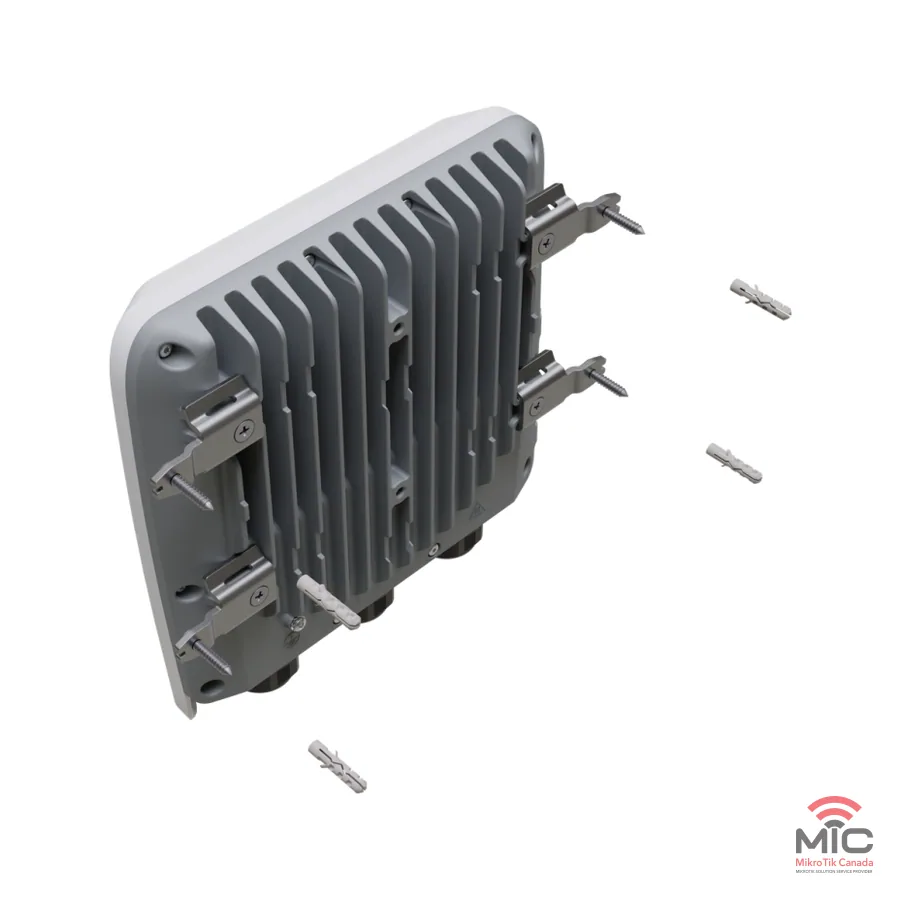

  • K-41 fastening set
  • K-85 fastening set

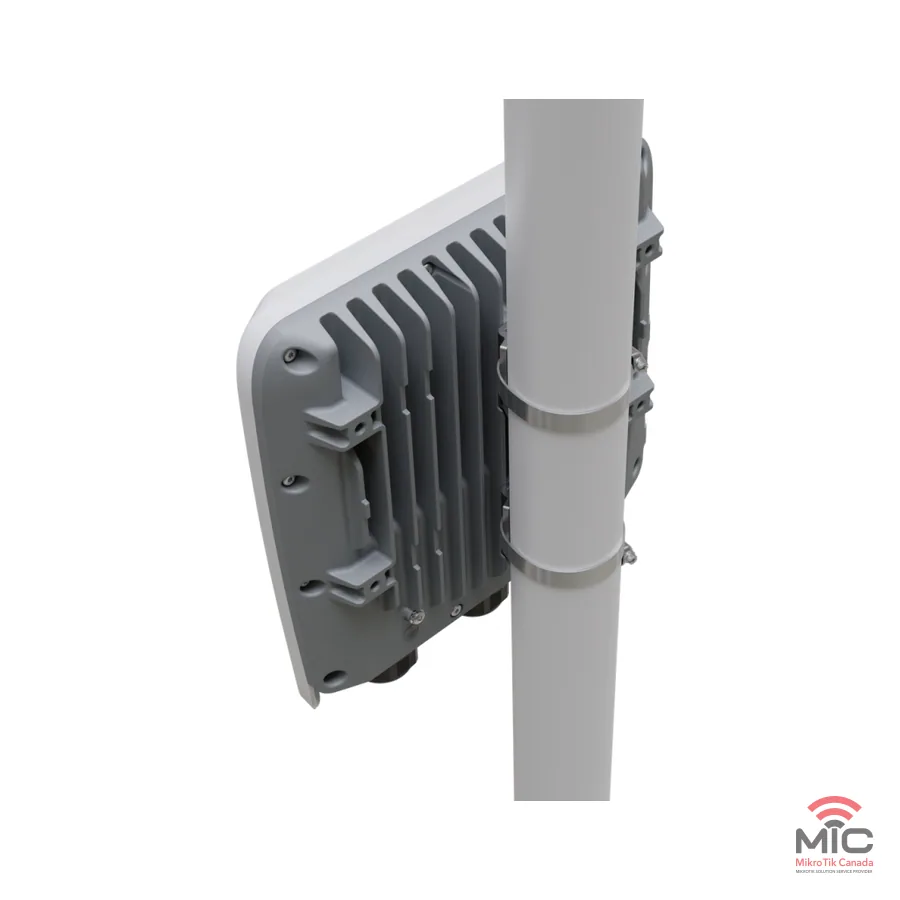

  • Hose clamp 2

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Other documents

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
