hEX lite

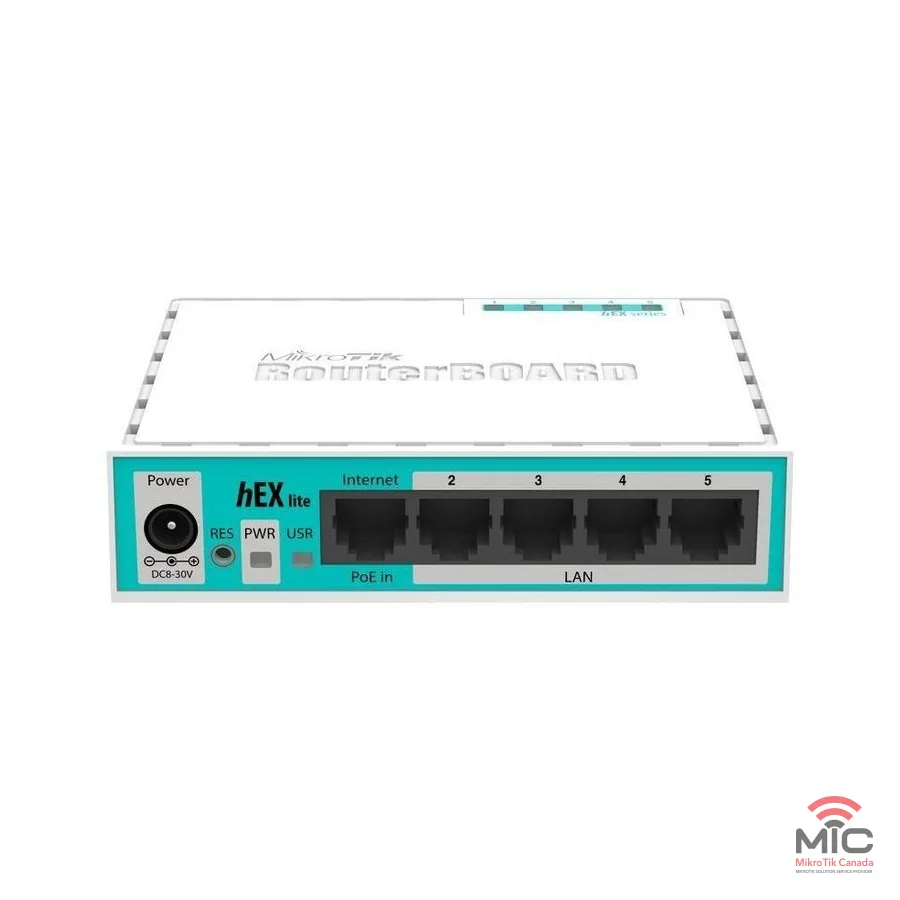

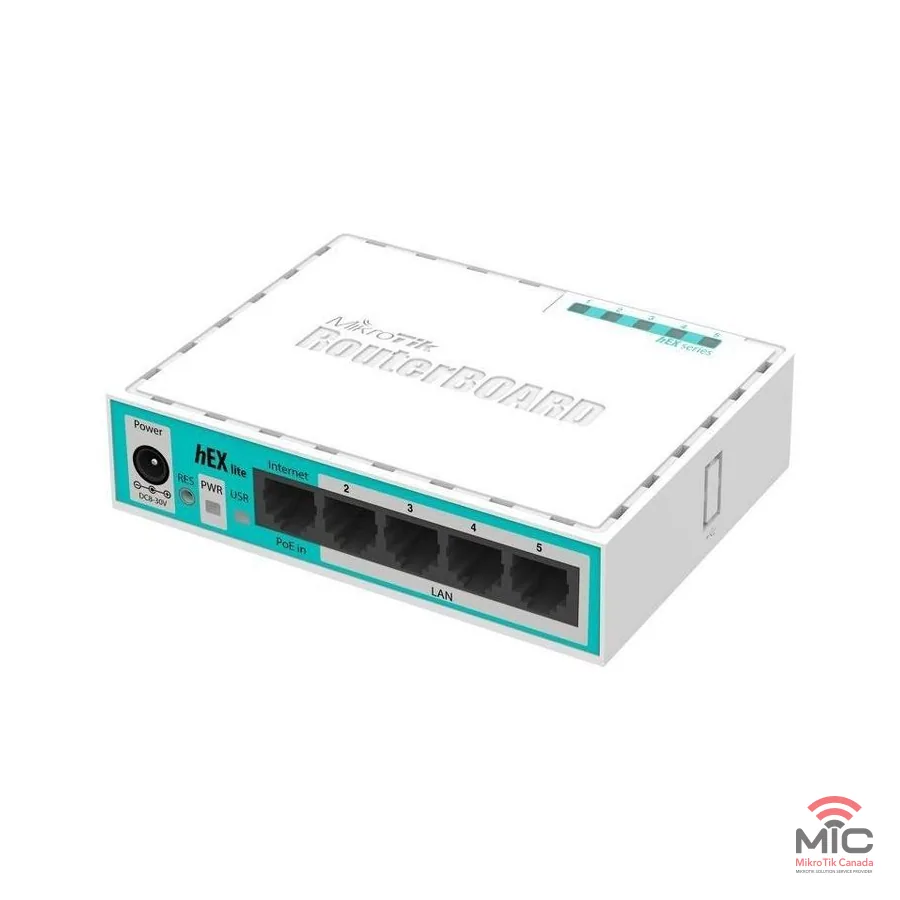

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RB750r2
Router with 5 x 100 Mbit/s; 1-core QCA9533; 64 MB RAM.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 850 MHz |
| Switch chip model | QCA9533 |
| Dimensions | 113x89x28mm. Weight without packaging and cables: 129g |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 6-30 V |
| Max power consumption | 2 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 6-30 V |
Ethernet
| Item | Value |
|---|---|
| 10/100 Ethernet ports | 5 |
Benchmarks
Ethernet test results: QCA9531 (850Mhz) 100M all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 40.6 | 493 | 117.4 | 480.9 | 234.8 | 120.2 |
| Bridging | 25 bridge filter rules | 40.6 | 493 | 90.4 | 370.3 | 94.3 | 48.3 |
| Routing | none (fast path) | 40.6 | 493 | 117.4 | 480.9 | 217.8 | 111.5 |
| Routing | 25 simple queues | 40.6 | 493 | 98.9 | 405.1 | 101.2 | 51.8 |
| Routing | 25 ip filter rules | 40.6 | 493 | 52 | 213 | 52.7 | 27 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.38A power adapter
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- Quick Guide (2) (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
- STEP file for CAD (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- Design Files DXF-PDF (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
