hEX S

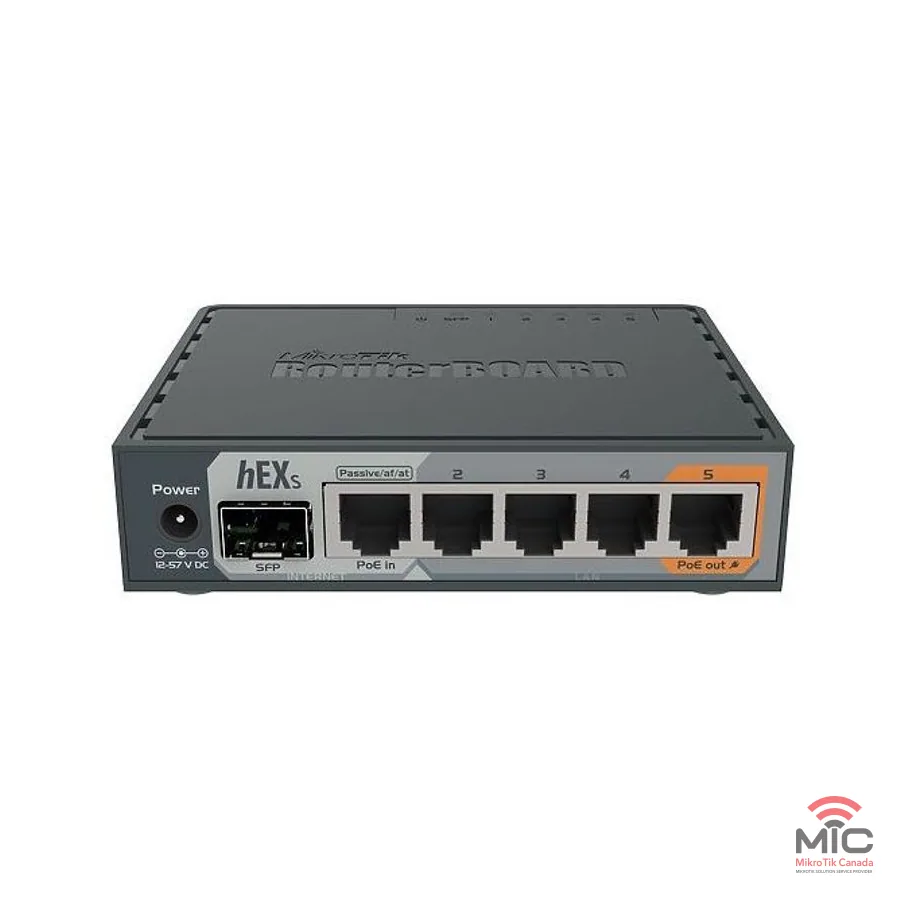

hEX S (RB760iGS)

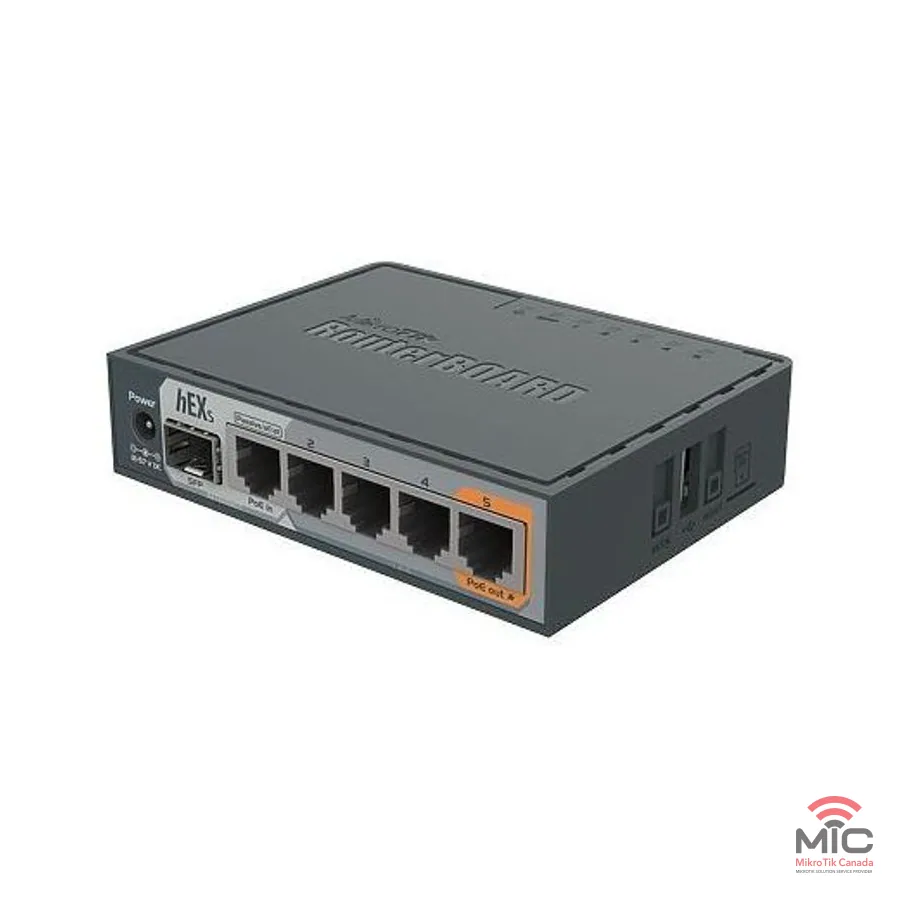

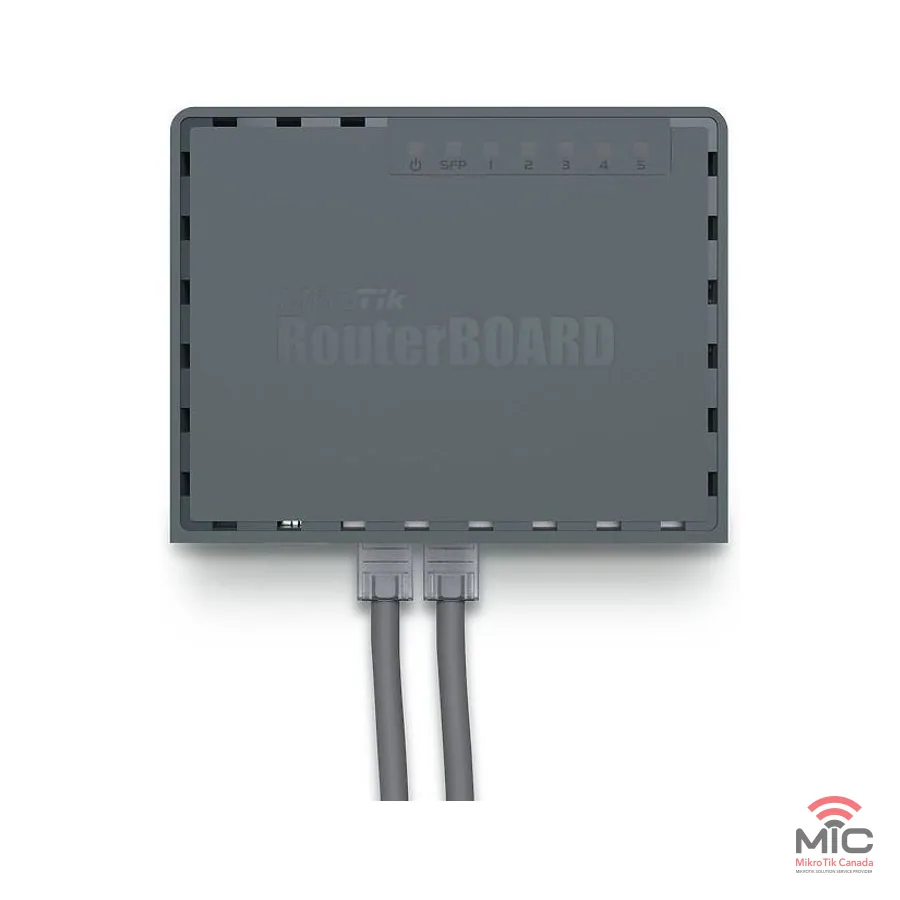

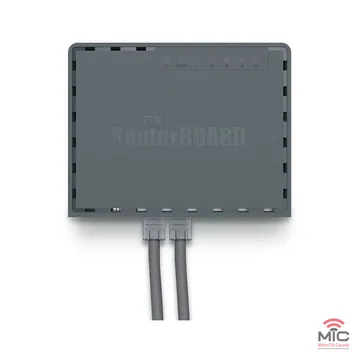

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: RB760iGS

USD 79.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Router with 5 x 1 Gbit/s, 1 x SFP (1 Gbit/s); 2-core MT7621A; 256 MB RAM; PoE output listed.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Featured in Router and firewall.

Specifications

ItemValue
ArchitectureMMIPS
CPUMT7621A
CPU core count2
CPU nominal frequency880 MHz
CPU Threads count4
Switch chip modelMT7621A
Dimensions113 x 89 x 28 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 70°C
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes
BeeperYes
CertificationCE, EAC, ROHS
IPIP20

Powering

ItemValue
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption24 W
Max power consumption without attachments6 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage12-57 V
PoE-out portsEther5
PoE outPassive PoE up to 57V
Low voltage PoE-Out current limit500 mA
High voltage PoE-Out current limit500 mA
Max total out (A)500 mA

Ethernet

ItemValue
10/100/1000 Ethernet ports5

Fibre

ItemValue
SFP ports1

Peripherals

ItemValue
Memory card typemicroSD
Memory Cards1
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Benchmarks

Ethernet test results: MT7621A (880Mhz) 1G all port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)145.31764446.81830.1658.6358.3
Bridging25 bridge filter rules118.41437.8122.2500.4121.566.1
Routingnone (fast path)148.41802.2450.11843.6601.2327.1
Routing25 simple queues114.51391119.3488.5119.364.9
Routing25 ip filter rules63.1766.464.8265.264.435

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: MT7621A IPsec throughput

ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA120.7231.821.588.121.311.6
256 tunnelsAES-128-CBC + SHA112.1135.512.350.412.76.9
256 tunnelsAES-128-CBC + SHA25612.2136.612.450.812.46.7
256 tunnelsAES-256-CBC + SHA112.1135.512.350.412.46.7
256 tunnelsAES-256-CBC + SHA25610.5117.612.651.612.46.7

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 24V 1.2A power adapter

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
