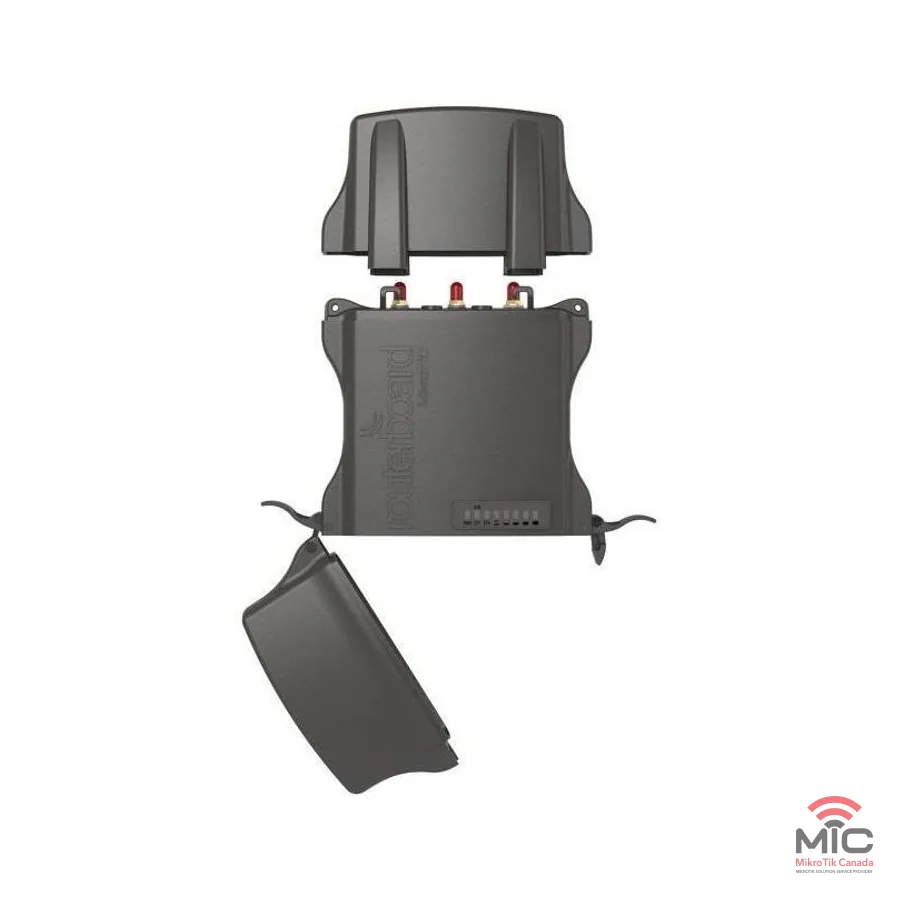

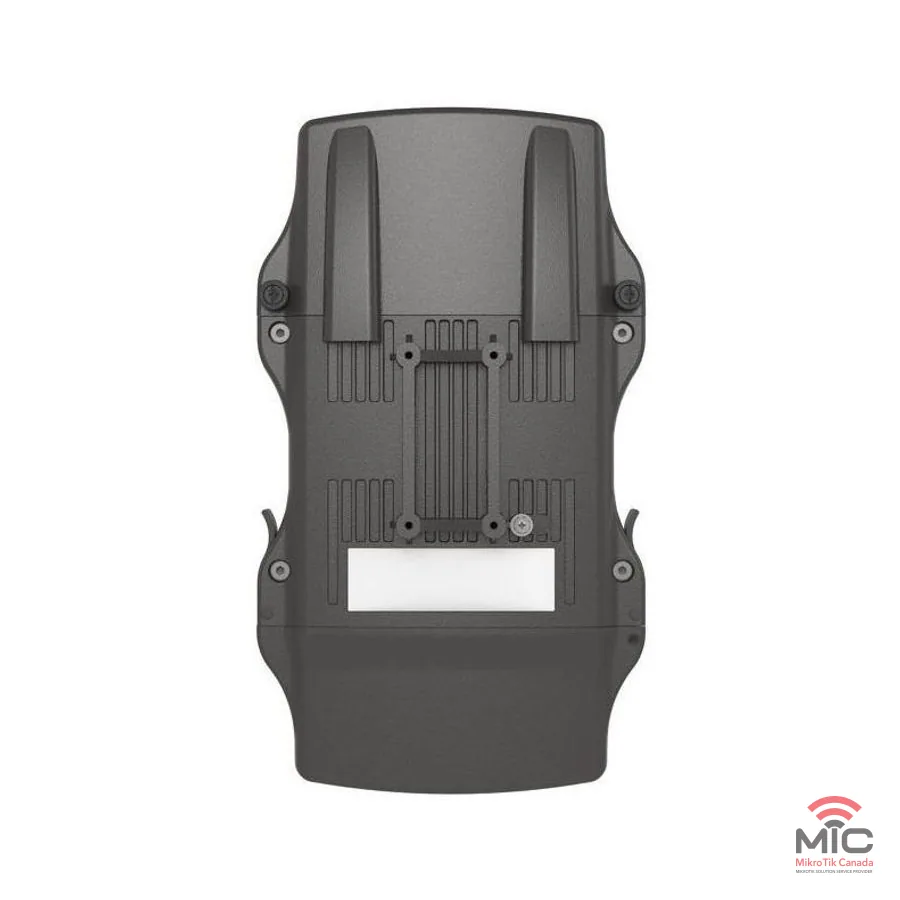

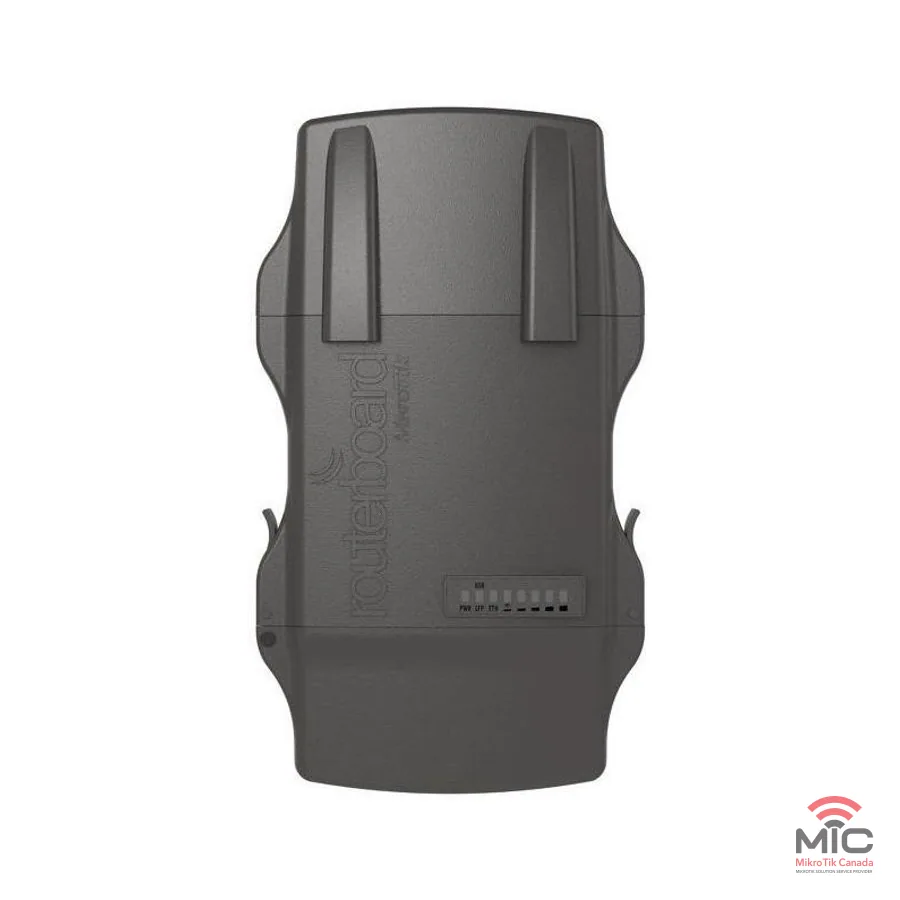

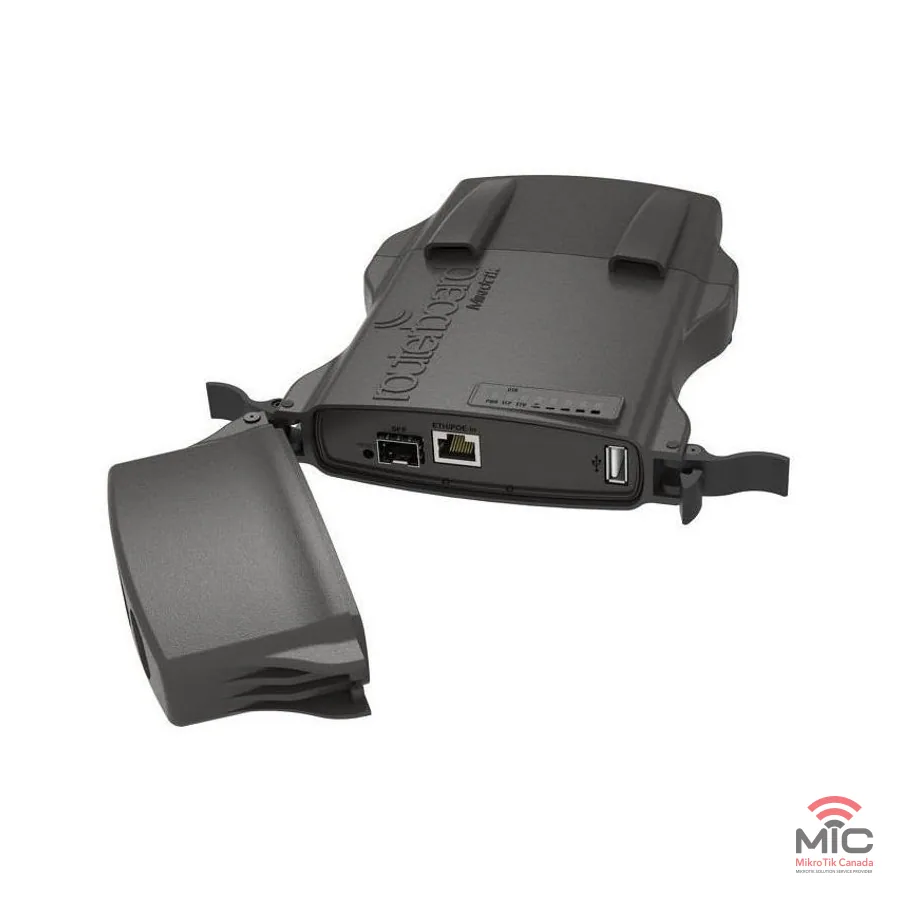

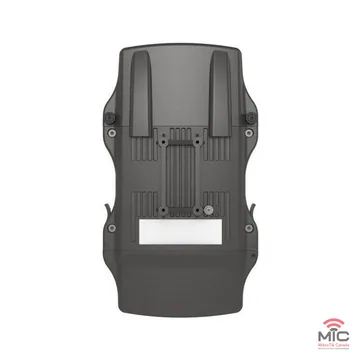

NetMetal 5
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RB922UAGS-5HPacD-NM
Wireless systems: Gigabit Ethernet ports, SFP cages, PoE input.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 143x247x48mm (PCB) |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification | FCC, IC |
| IP | IP54 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 19 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 8-30 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fibre
| Item | Value |
|---|---|
| SFP DDMI | yes |
| SFP ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless 5 GHz chip model | QCA9882 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Benchmarks
Ethernet test results: QCA9557 1G all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 477.7 | 244.6 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 118.4 | 485 | 119.5 | 61.2 |
| Routing | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 408.2 | 209 |
| Routing | 25 simple queues | 81.2 | 986.1 | 158.3 | 648.4 | 165.8 | 84.9 |
| Routing | 25 ip filter rules | 64.8 | 786.9 | 70.4 | 288.4 | 60.9 | 31.2 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 1.2A power adapter
- K-25 screw kit
- Gigabit PoE injector
- Metal ring (one)
- DIN mount (K-27)
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- Quick Guide (2) (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Dimensions (MikroTik)
- Mounting dimensions (MikroTik)
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- FCC (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
