KNOT

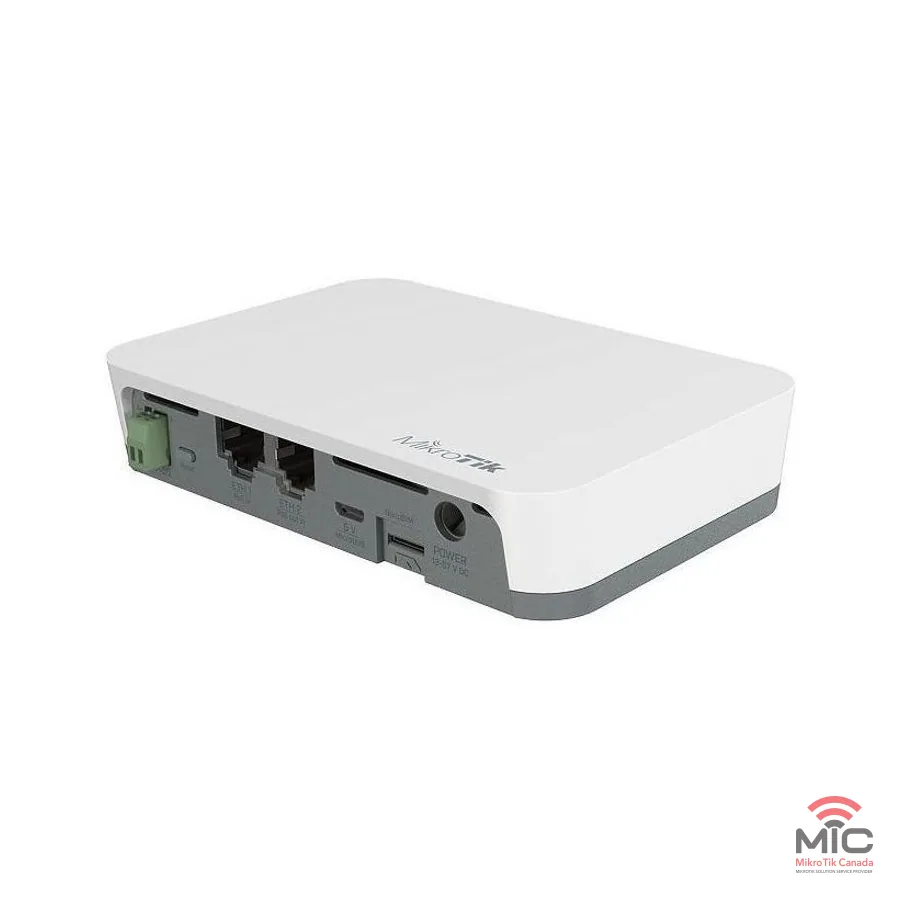

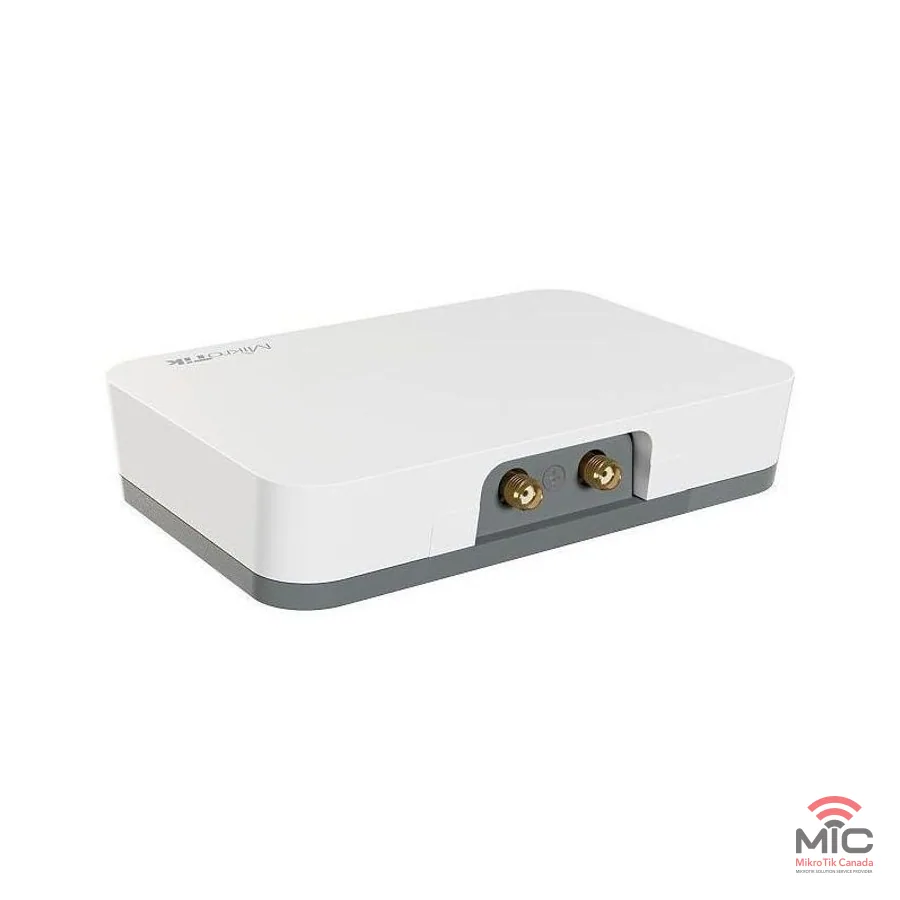

KNOT (RB924i-2nD-BT5&BG77)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: RB924i-2nD-BT5&BG77 (MikroTik also lists hardware revision RB924i-2nD-BT5&BG77r2)

USD 99.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Wireless for home and office: Fast Ethernet ports, PoE output, PoE input.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

ItemValue
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip modelQCA9531
Dimensions122 x 87 x 26 mm
RouterOS license4
Operating SystemRouterOS v7
Size of RAM64 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 70°C
PCB temperature monitorYes
Voltage MonitorYes
Bluetooth version5.2
Bluetooth RF connector typeuUFL
CertificationCE, FCC, IC, EAC, ROHS
IPIP20

Powering

ItemValue
MicroUSB input Voltage5 V
Number of DC inputs3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage12-57 V
Max power consumption18 W
Max power consumption without attachments5 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage18-57 V
PoE-out portsEther2
PoE outPassive PoE up to 57V
Total output power12

Ethernet

ItemValue
10/100 Ethernet ports2

Peripherals

ItemValue
Number of SIM slots1 Modem (Nano SIM)
Serial console portRS485
Number of USB ports1
USB slot typemicroUSB type AB
Max USB current (A)1

Wireless

ItemValue
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9531
Wireless 2.4 GHz generationWi-Fi 4

Benchmarks

Ethernet test results: QCA9531 100M two port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)16.3197.947192.5297.6152.4
Bridging25 bridge filter rules16.3197.947192.580.441.2
Routingnone (fast path)16.3197.947192.5233.1119.3
Routing25 simple queues16.3197.947192.5131.467.3
Routing25 ip filter rules16.3197.947192.549.125.1

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 24V 1.2A power adapter
  • K-47 wall mount set
  • USB OTG cable

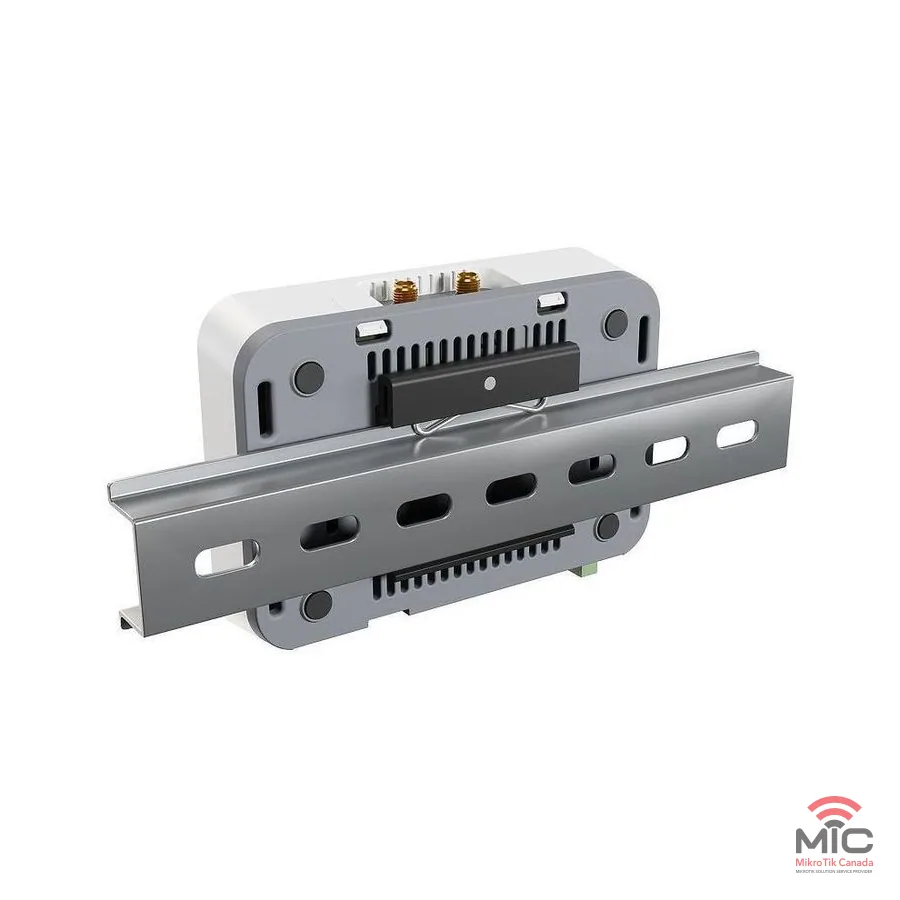

  • DIN rail mount set

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Other documents

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
