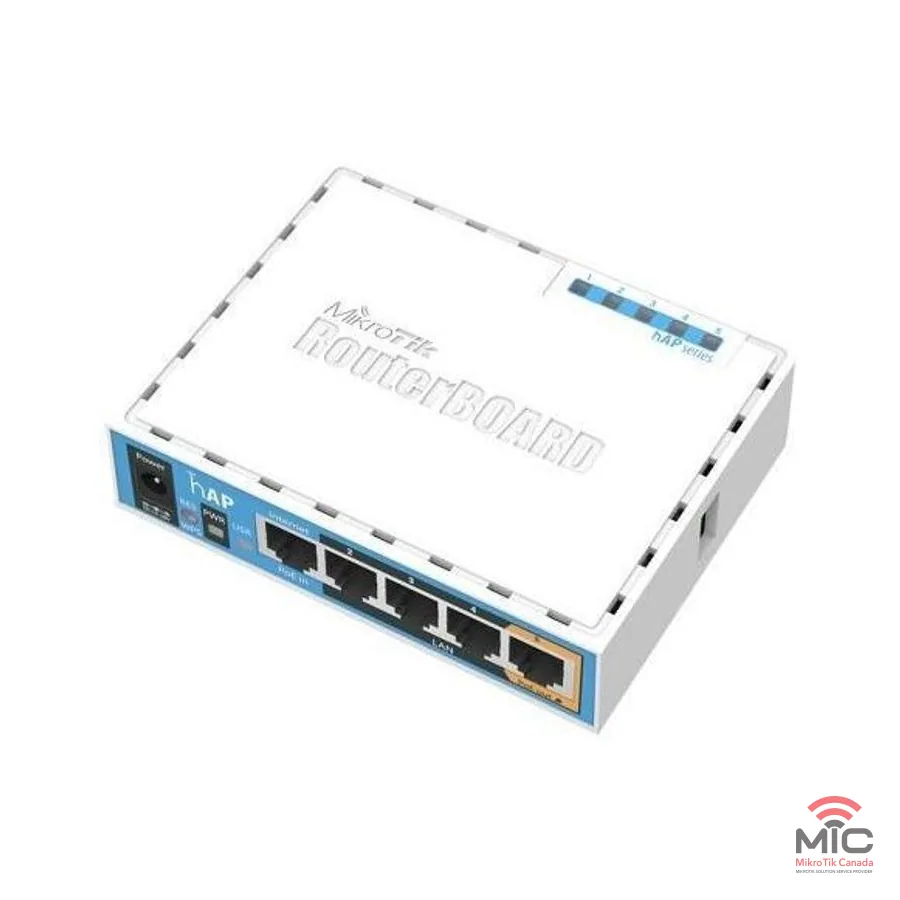

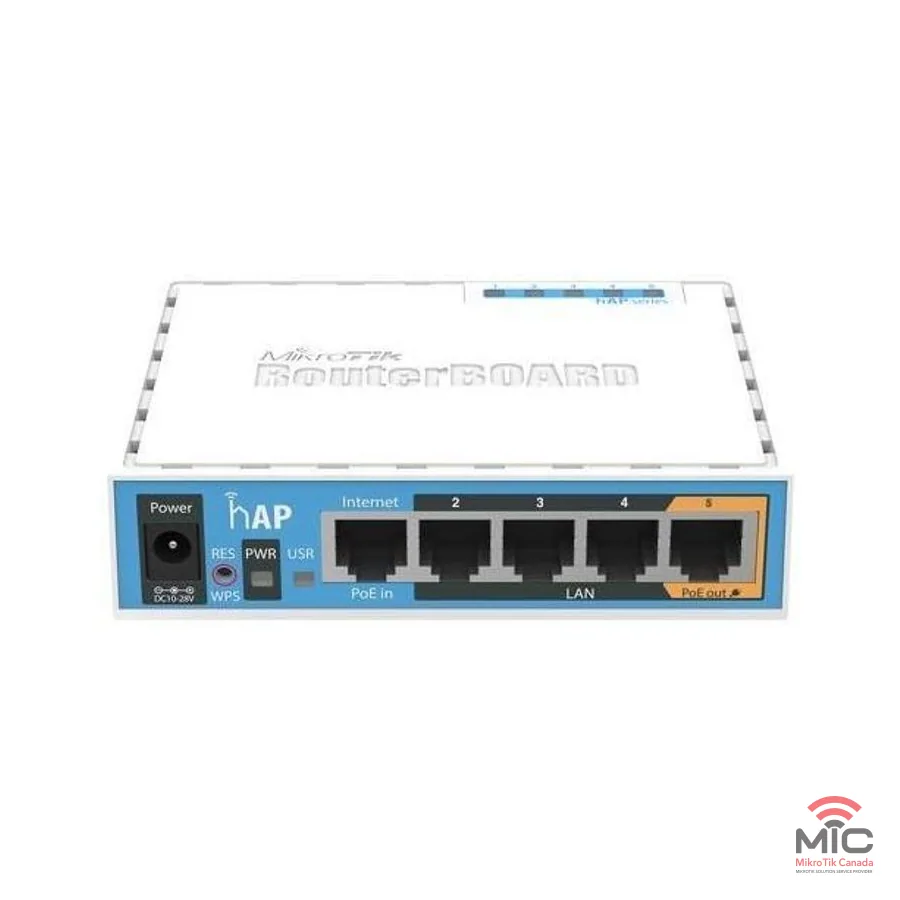

hAP
Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RB951Ui-2nD
Wireless for home and office: Fast Ethernet ports, PoE output, PoE input.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| Dimensions | 113 x 89 x 28mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-28 V |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 500 mA |
| Max total out (A) | 500 mA |
Ethernet
| Item | Value |
|---|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Benchmarks
Ethernet test results: QCA9531 (650Mhz) 100M all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 40.6 | 493 | 117.4 | 480.9 | 217 | 111.1 |
| Bridging | 25 bridge filter rules | 40.6 | 493 | 70.1 | 287.1 | 70.9 | 36.3 |
| Routing | none (fast path) | 40.6 | 493 | 117.4 | 480.9 | 200.8 | 102.8 |
| Routing | 25 simple queues | 40.6 | 493 | 79.6 | 326 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 40.6 | 493 | 42.2 | 172.8 | 43.2 | 22.1 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.8A power adapter
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- Quick Guide (2) (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- FCC (MikroTik)
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
