hAP ac

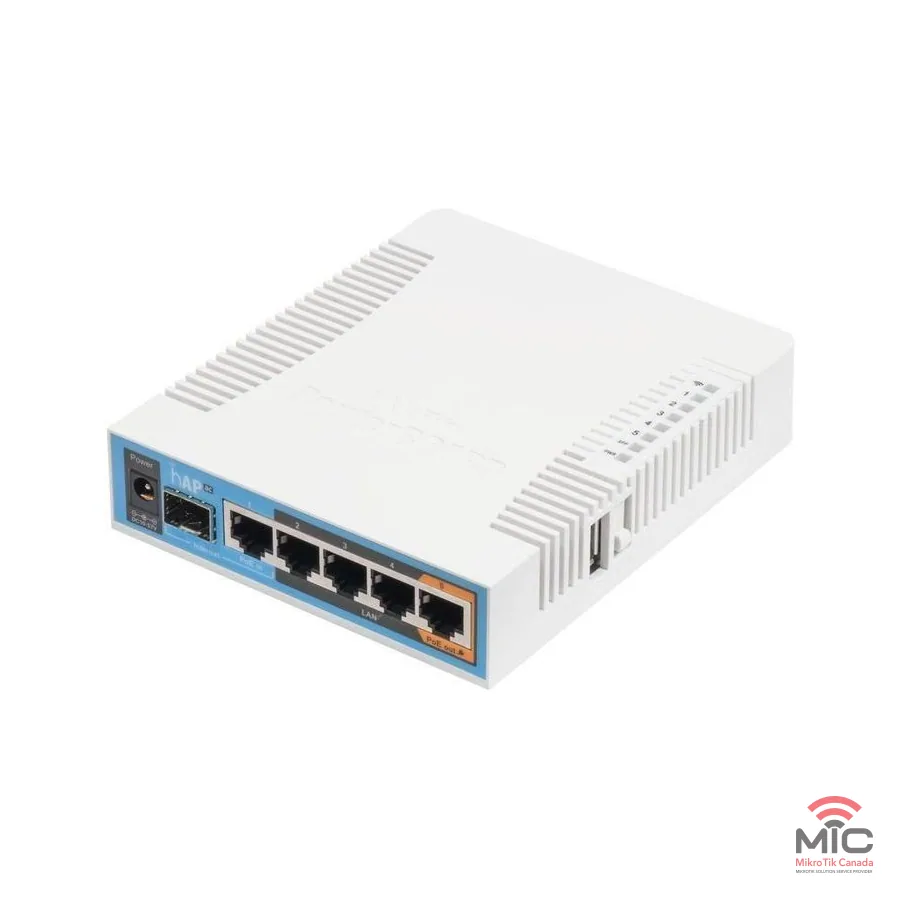

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RB962UiGS-5HacT2HnT
Wireless for home and office: Gigabit Ethernet ports, SFP cages, PoE output.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9558 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Switch chip model | QCA8337 |
| Dimensions | 114 x 137 x 29mm |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-57 V |
| Max power consumption | 17 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 11-57 V |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 700 mA |
| High voltage PoE-Out current limit | 350 mA |
| Max total out (A) | 700 mA |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fibre
| Item | Value |
|---|---|
| SFP ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz Max data rate | 450 Mbit/s |
| Wireless 2.4 GHz Number of chains | 3 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | QCA9558 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz Number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1750 |
Benchmarks
Ethernet test results: QCA9558 1G all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1966.1 | 345.5 | 1415.2 | 435.6 | 223 |
| Bridging | 25 bridge filter rules | 125.5 | 1524.1 | 126.5 | 518.1 | 128.8 | 65.9 |
| Routing | none (fast path) | 161.9 | 1966.1 | 334.2 | 1368.9 | 397.9 | 203.7 |
| Routing | 25 simple queues | 161.9 | 1966.1 | 183.9 | 753.3 | 203.3 | 104.1 |
| Routing | 25 ip filter rules | 78.1 | 948.4 | 77.8 | 318.7 | 77.5 | 39.7 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 1.2A power adapter
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- Quick Guide (2) (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Mounting dimensions (MikroTik)
- Block Diagram (MikroTik)
Certificates and compliance
- FCC 2.4GHz (MikroTik)
- FCC 5GHz (MikroTik)
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
