hAP ac³

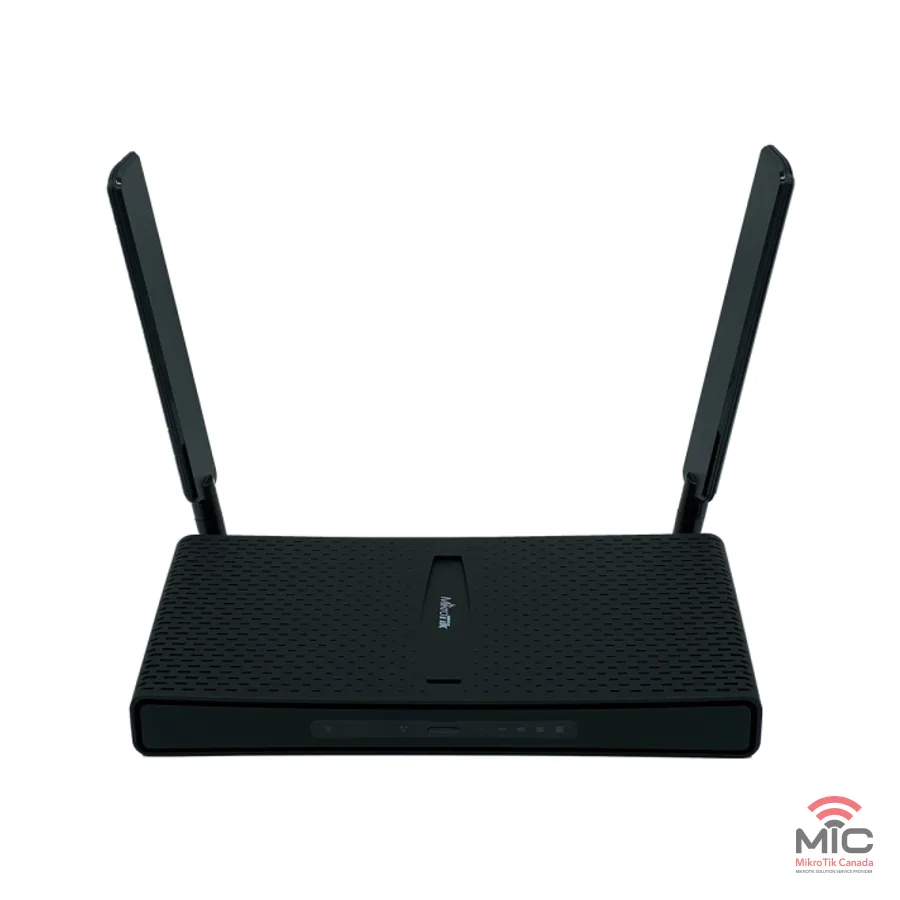

hAP ac³ (RBD53iG-5HacD2HnD)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: RBD53iG-5HacD2HnD

USD 109.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

Wireless for home and office: Gigabit Ethernet ports, PoE output, PoE input.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

ItemValue
ArchitectureARM 32bit
CPUIPQ-4019
CPU core count4
CPU nominal frequency448-896 (auto) MHz
CPU Threads count4
Switch chip modelIPQ-4019
Dimensions251 x 129 x 39 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM256 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
CertificationCE, FCC, IC, EAC, ROHS
IPIP20
Mode buttonYes

Powering

ItemValue
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption30 W
Max power consumption without attachments12 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage18-28 V
PoE-out portsEther5
PoE outPassive PoE
Low voltage PoE-Out current limit0.5 A
Max total out (A)0.5 A

Ethernet

ItemValue
10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1

Peripherals

ItemValue
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Wireless

ItemValue
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz3
Wireless 2.4 GHz chip modelIPQ-4019
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate867 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz5.5
Wireless 5 GHz chip modelIPQ-4019
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC1200

Benchmarks

Ethernet test results: IPQ-4019 1G all port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)16251973.446991924.714884762.1
Bridging25 bridge filter rules16251973.435121438.53521180.3
Routingnone (fast path)16251973.446991924.714884762.1
Routing25 simple queues16251973.446861919.44934252.6
Routing25 ip filter rules16251973.42228912.62274116.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

IPsec test results: IPQ-4018 IPsec throughput

ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 24V 1.5A power adapter
  • Base leg
  • K-47 wall mount set
  • HGO indoor antenna kit

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
