RBFTC11

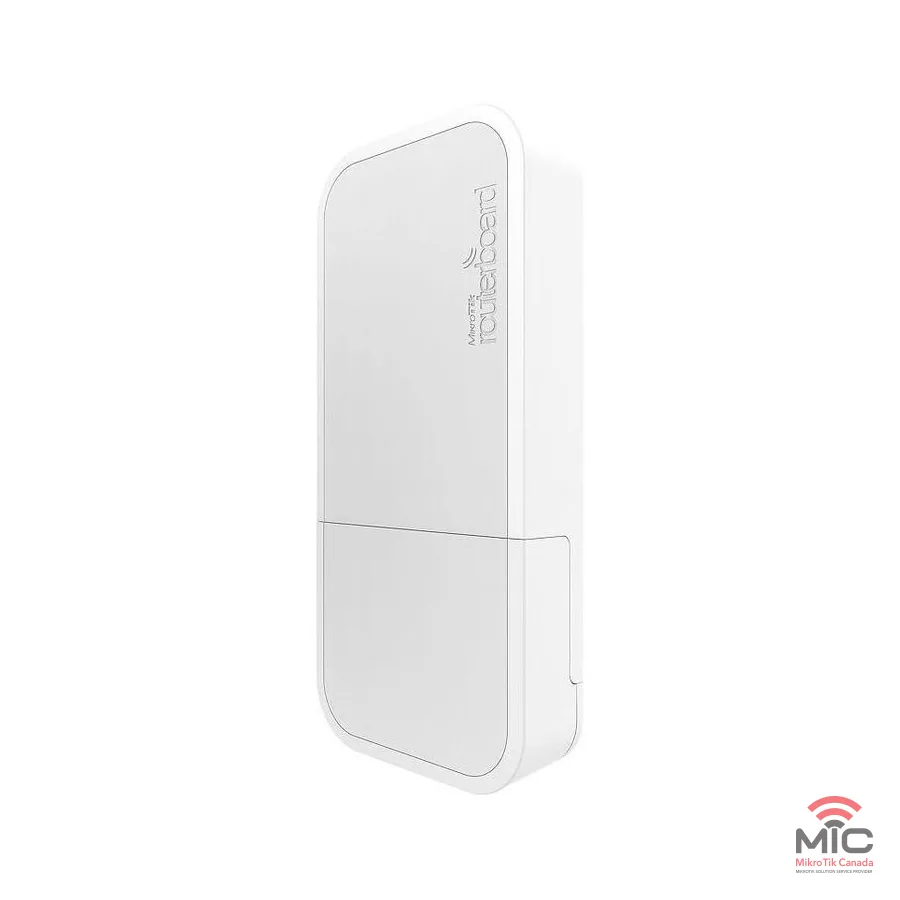

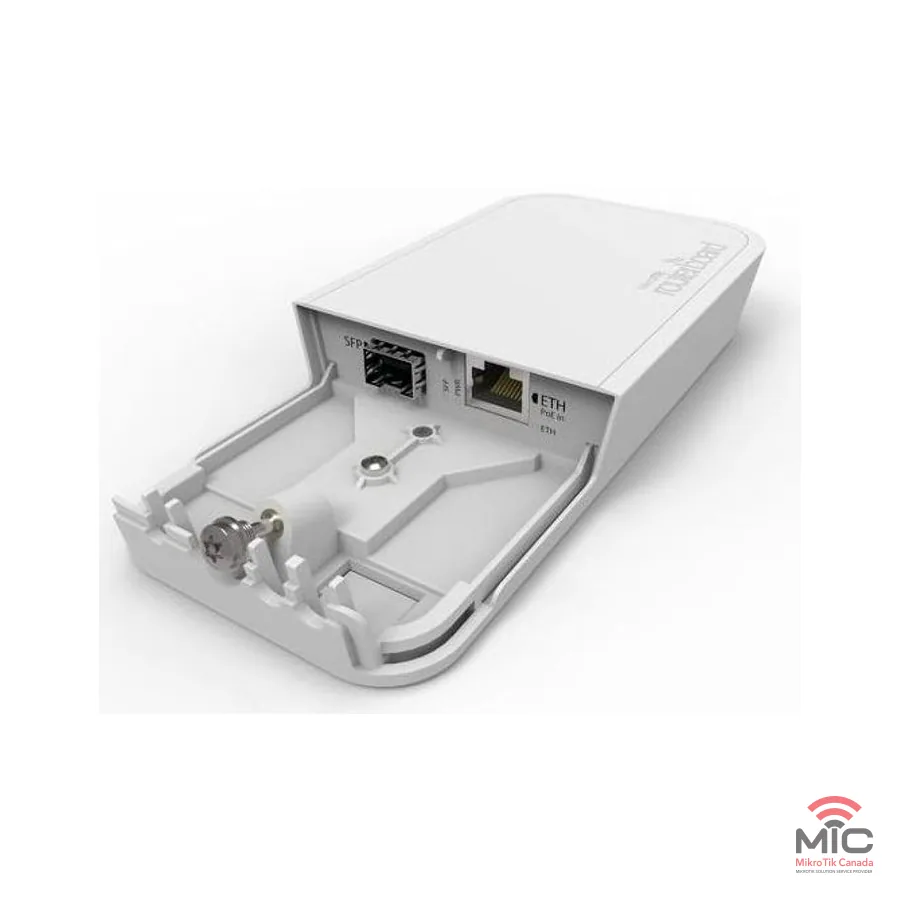

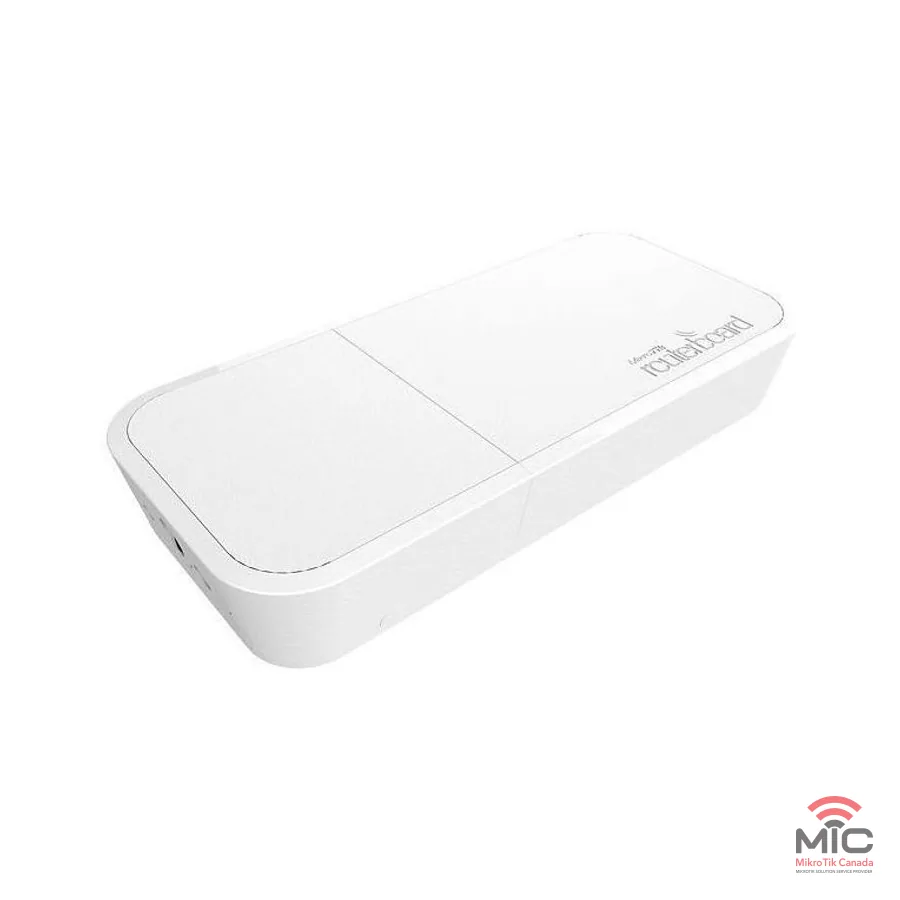

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RBFTC11
Accessories: Gigabit Ethernet ports, SFP cages, PoE input.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | QCA8334-AL3C |
| Input voltage | 12-57V |
| Storage size | 1 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Certification | CE, EAC, ROHS |
Powering
| Item | Value |
|---|---|
| Max power consumption | 3 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fibre
| Item | Value |
|---|---|
| SFP ports | 1 |
Benchmarks
Switching results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 81.3 | 987.3 | 234.9 | 962.1 | 1488.1 | 761.9 |
| Switching | Non blocking Layer 2 capacity | 81.3 | 1974.6 | 234.9 | 1924.2 | 1488.1 | 1523.8 |
| Switching | Non blocking Layer 1 throughput | 81.3 | 1000 | 234.9 | 1000 | 1488.1 | 1000 |
| Switching | Non blocking Layer 1 capacity | 81.3 | 2000 | 234.9 | 2000 | 1488.1 | 2000 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.2A power adapter
- K35 screw kit
- Gigabit PoE injector

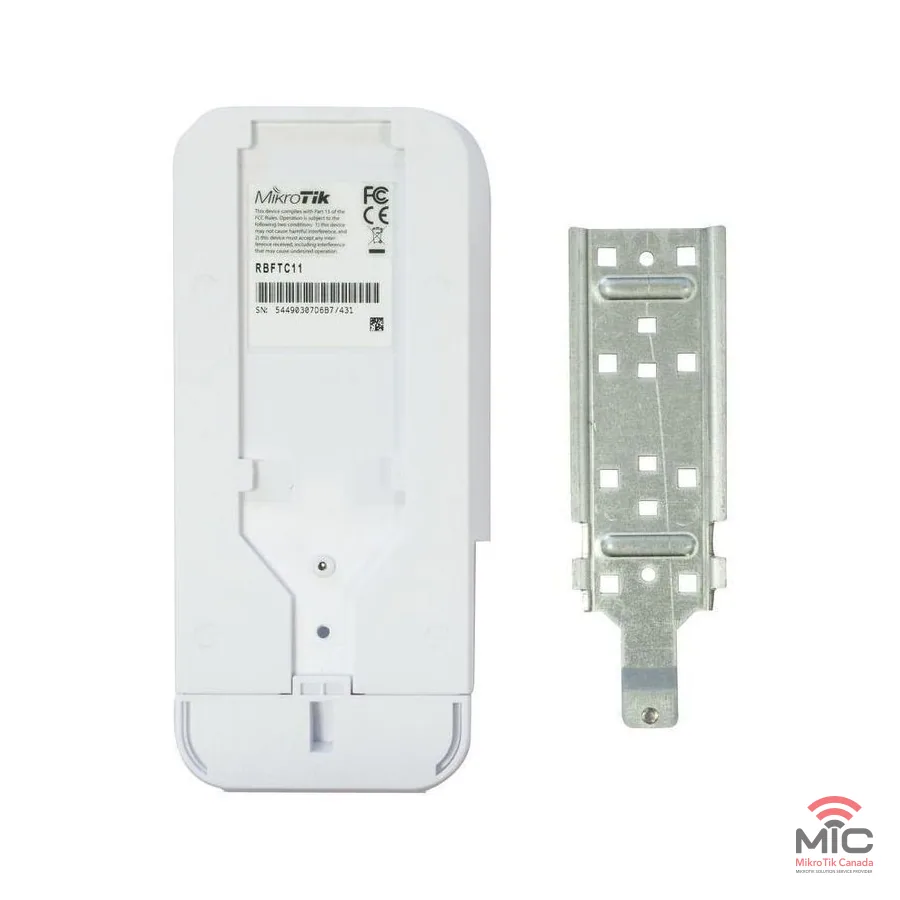

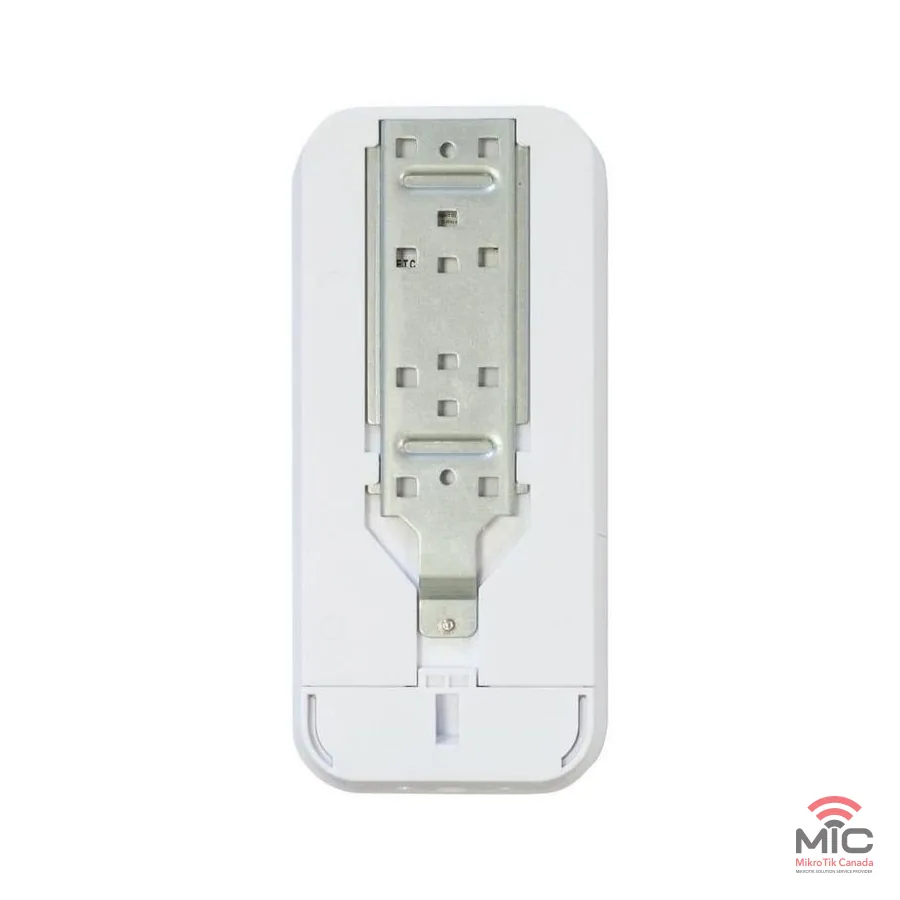

- wAP ceiling mount bracket
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- User manual (MikroTik)
- Quick Guide (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
