GrooveA 52 ac

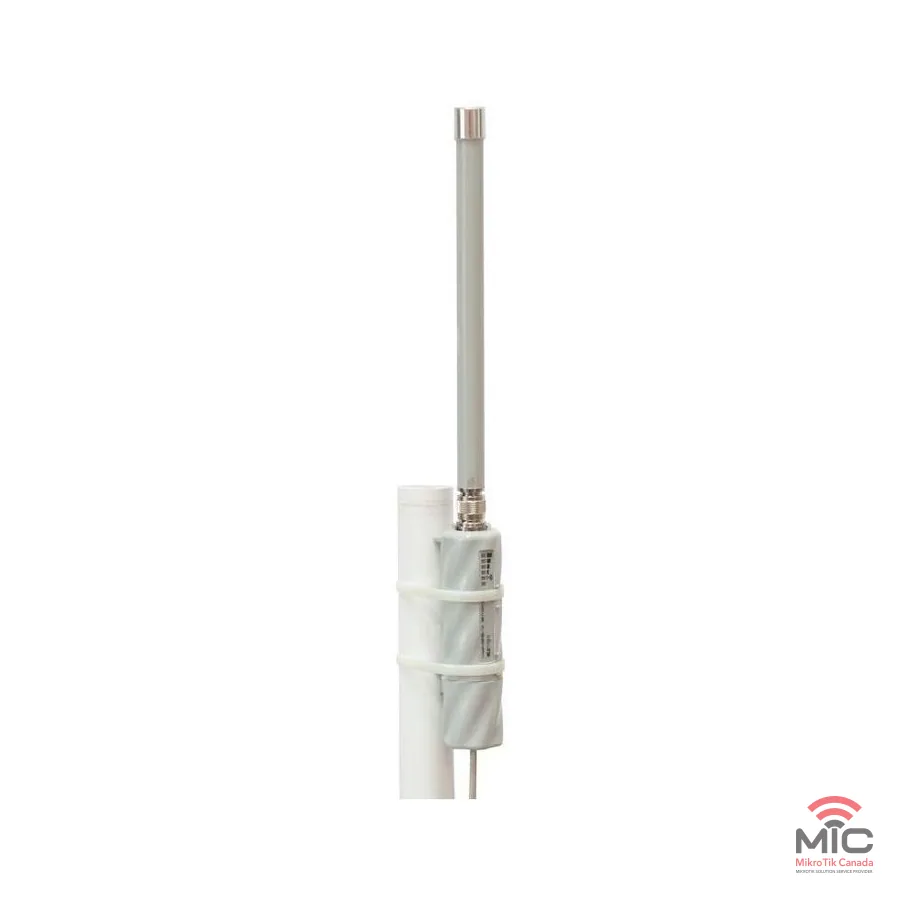

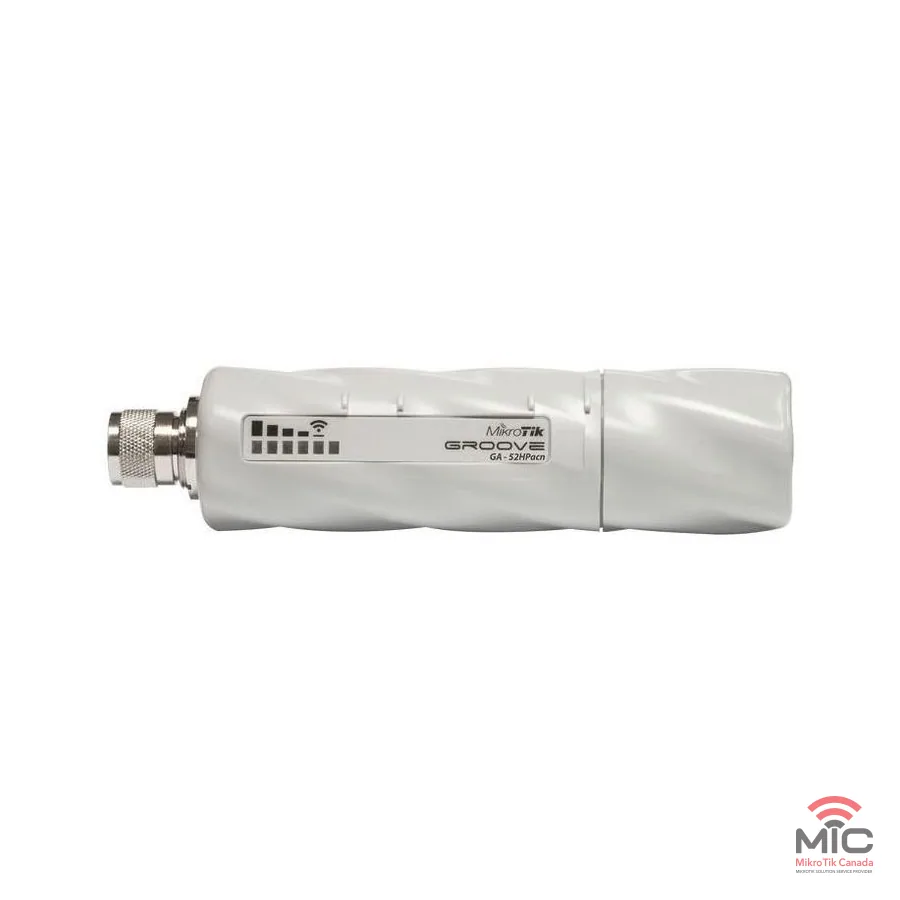

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RBGrooveGA-52HPacn
Wireless systems: Gigabit Ethernet ports, PoE input, Wi-Fi 5.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 177 x 44 x 44 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP55 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-30 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s |
| Wireless 2.4 GHz/5 GHz Number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11b/g/n, 802.11a/n/ac |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 5 |
Benchmarks
Ethernet test results: QCA9556 1G one port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 233.1 | 954.8 | 576.7 | 295.3 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 123.7 | 506.7 | 117.8 | 60.3 |
| Routing | none (fast path) | 81.2 | 986.1 | 233.1 | 954.8 | 454.8 | 232.9 |
| Routing | 25 simple queues | 81.2 | 986.1 | 152.6 | 625 | 137.2 | 70.2 |
| Routing | 25 ip filter rules | 69.4 | 842.8 | 66.3 | 271.6 | 68.7 | 35.2 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.38A power adapter
- Gigabit PoE injector
- 6dBi / 8dBi omni antenna
- Metal ring (one)
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Mounting dimensions (MikroTik)
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- FCC 5GHz (MikroTik)
- FCC 2.4GHz (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
