SXT SA5 ac

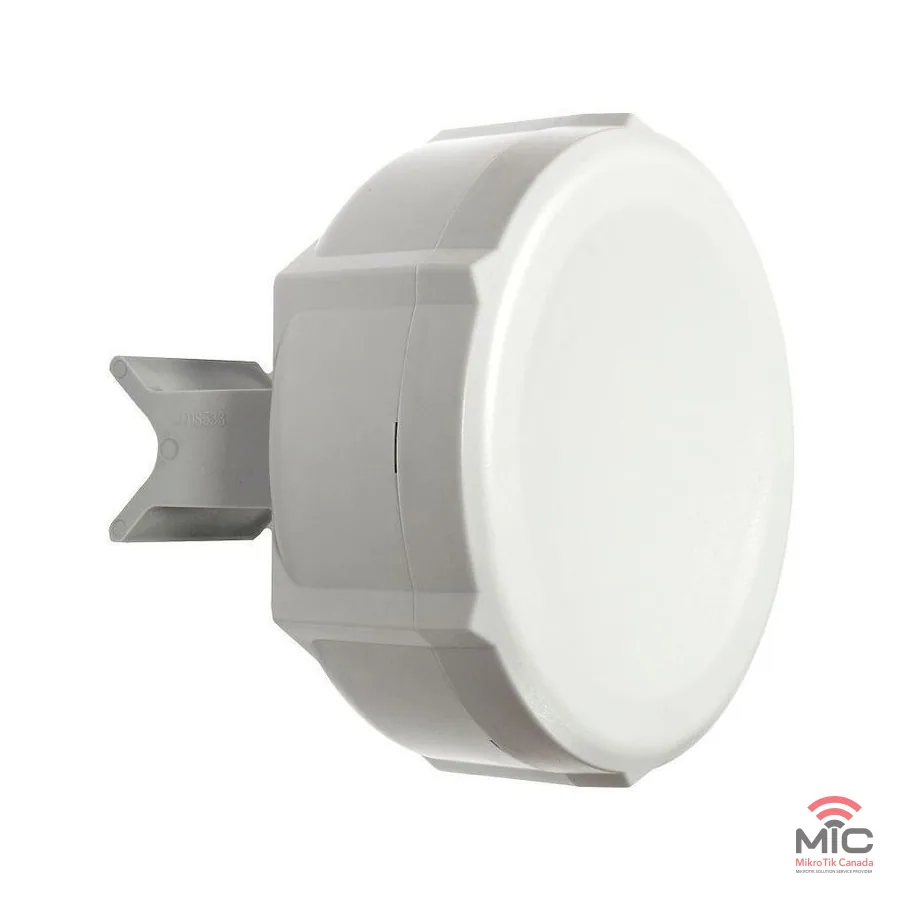

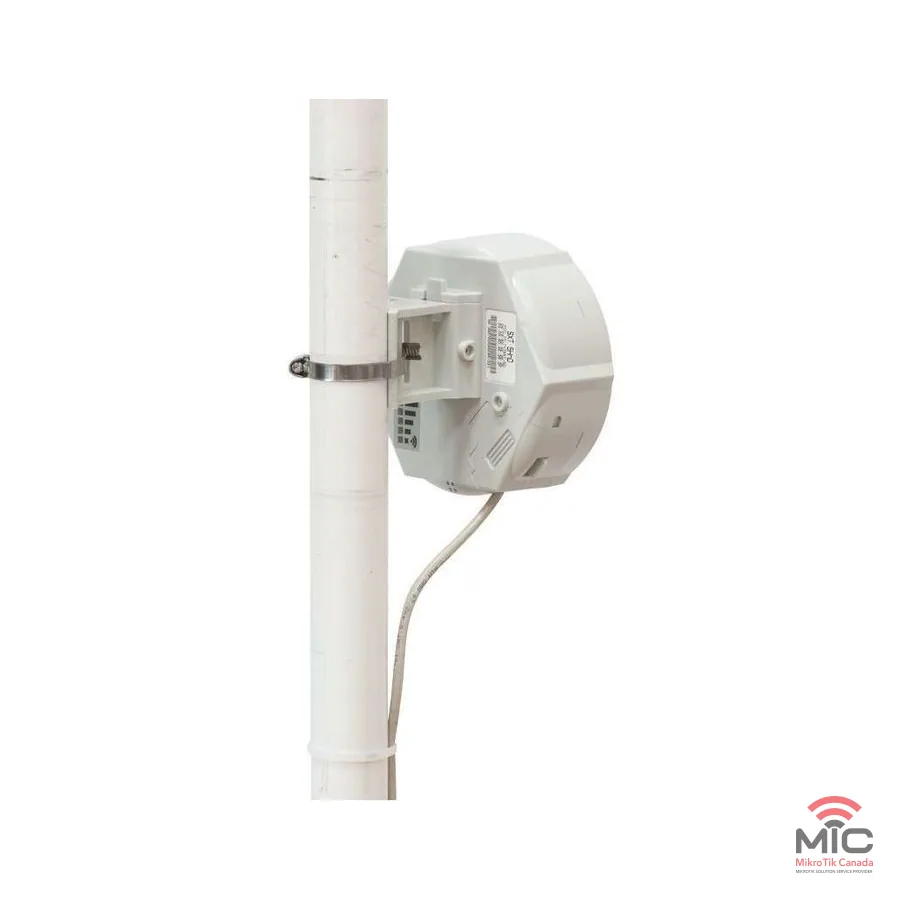

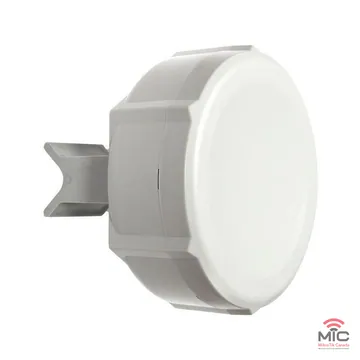

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: RBSXTG-5HPacD-SA (MikroTik also lists hardware revision RBSXTG-5HPacD-SAr2)
Wireless systems: Gigabit Ethernet ports, PoE input, Wi-Fi 5.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Supported Voltage | 15-60V |
| Max power consumption | 12 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Item | Value |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Wireless
| Item | Value |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 14 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Benchmarks
Ethernet test results: QCA9557 1G all port test
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 477.7 | 244.6 |
| Bridging | 25 bridge filter rules | 81.2 | 986.1 | 118.4 | 485 | 119.5 | 61.2 |
| Routing | none (fast path) | 81.2 | 986.1 | 234.9 | 962.2 | 408.2 | 209 |
| Routing | 25 simple queues | 81.2 | 986.1 | 158.3 | 648.4 | 165.8 | 84.9 |
| Routing | 25 ip filter rules | 64.8 | 786.9 | 70.4 | 288.4 | 60.9 | 31.2 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- 24V 0.8A power adapter
- Metal ring (one)
- Pole mounting bracket
- Gigabit PoE injector
Optional purchases (sold separately)
No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User Manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
- FCC (MikroTik)
Other documents
- Antenna pattern Horizontal 90 (MikroTik)
- Antenna pattern Vertical 0 (MikroTik)
- Antenna pattern Vertical 90 (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
