wAP ax LTE7 kit

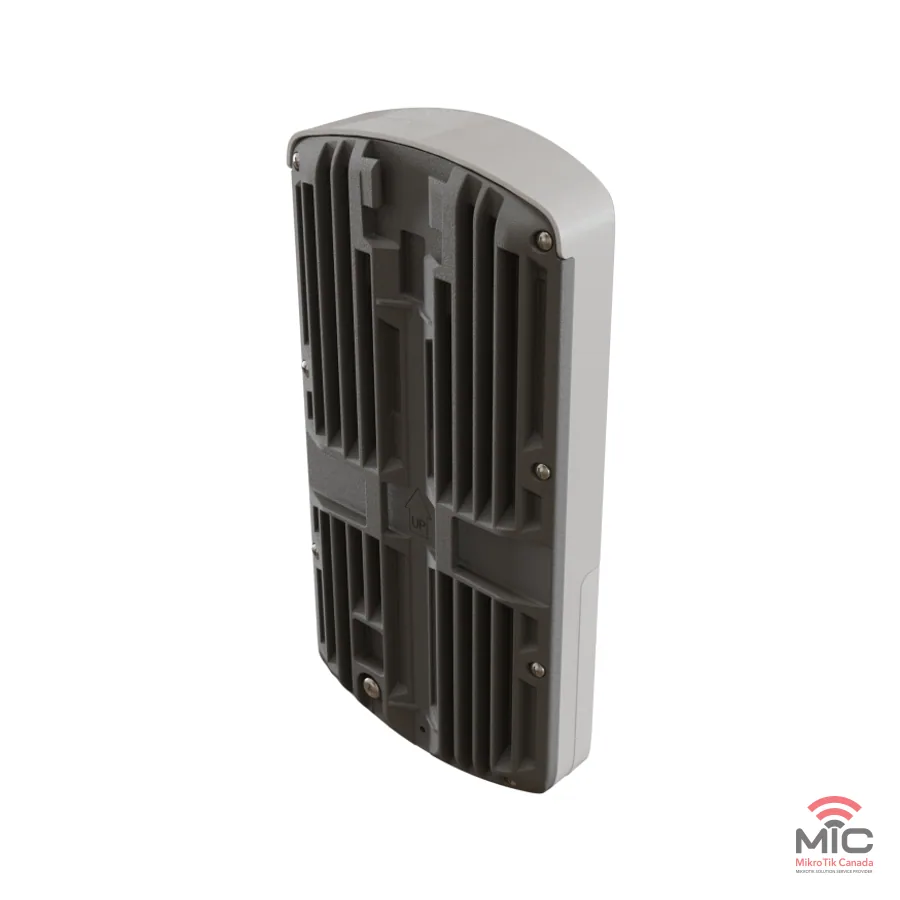

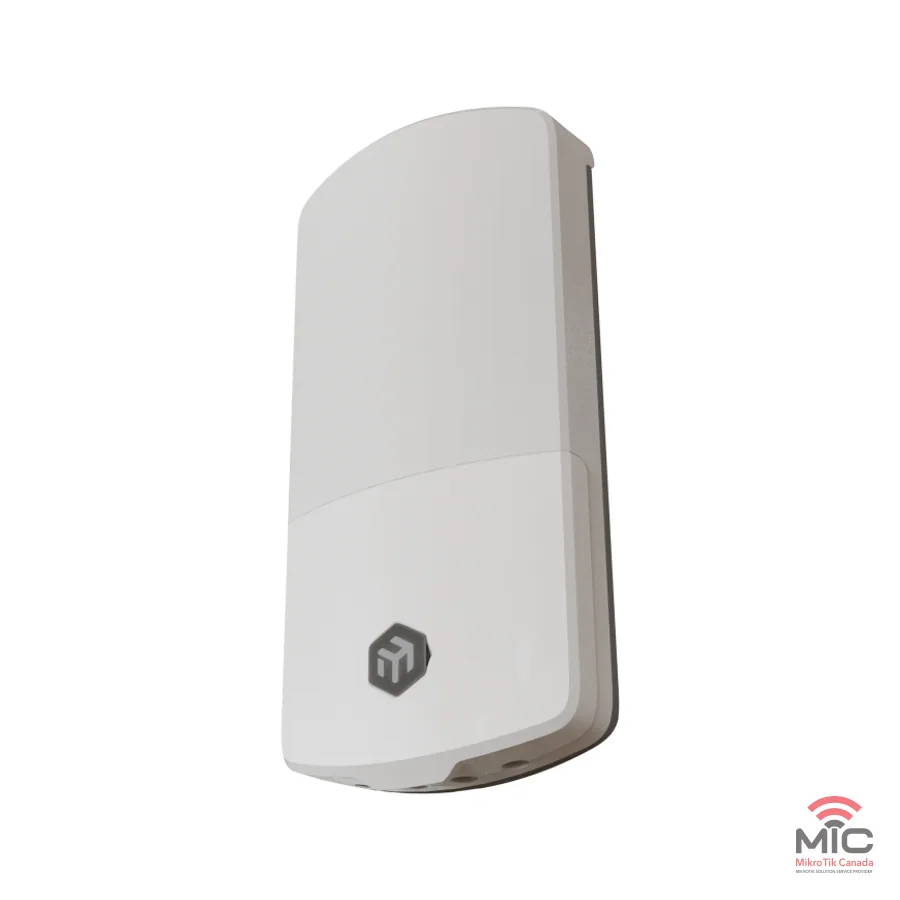

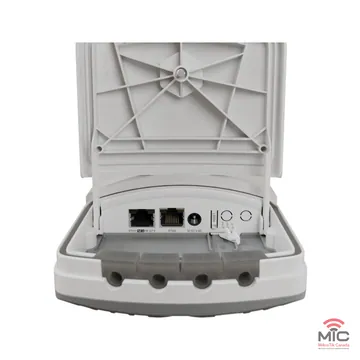

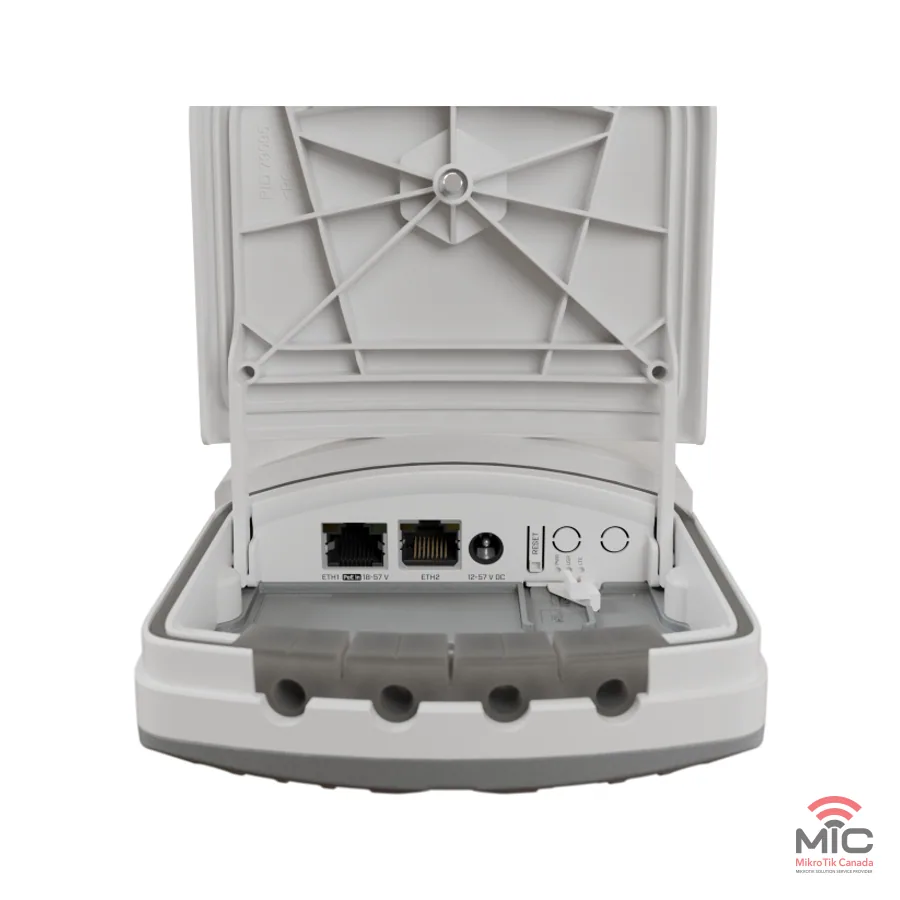

wAP ax LTE7 kit (wAPGR-5HaxD2HaxD&R11e-LTE7)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: wAPGR-5HaxD2HaxD&R11e-LTE7

USD 169.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

LTE/5G products: Gigabit Ethernet ports, PoE input, Wi-Fi 6 / 6E.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

ItemValue
ArchitectureARM 32bit
CPUIPQ-5010
CPU core count2
CPU nominal frequency800 MHz
CPU Threads count2
RouterOS license4
Operating SystemRouterOS v7
Size of RAM256 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-30°C to 70°C
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IP66

Powering

ItemValue
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption13 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage18-57 V

Ethernet

ItemValue
10/100/1000 Ethernet ports2

Peripherals

ItemValue
Number of SIM slots1 Modem (Micro SIM)
MiniPCI-e slots1

Wireless

ItemValue
Wireless 2.4 GHz Max data rate574 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz6.9
Wireless 2.4 GHz chip modelIPQ-5010
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz7
Wireless 5 GHz chip modelQCN-6102
Wireless 5 GHz generationWi-Fi 6

Mobile

ItemValue
3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz)
LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL2x2
MIMO UL1x1
LTE FDD bands1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz)
LTE TDD bands38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz)
TAC35312597

Benchmarks

Ethernet test results: IPQ-5010 1G all port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)158.81928.5412.91691.2481.2246.4
Bridging25 bridge filter rules158.41923.6212.2869.2217.1111.2
Routingnone (fast path)158.71927.32581056.8467.6239.4
Routing25 simple queues153.71866.5168.3689.4169.286.6
Routing25 ip filter rules117.31424.5121495.6116.359.5

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 24V 0.8A power adapter
  • Gigabit PoE injector
  • Hose clamp 1
  • K-95 kit
  • Plastic tie strap

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Other documents

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
