MikroTik Canada

wAP LTE kit

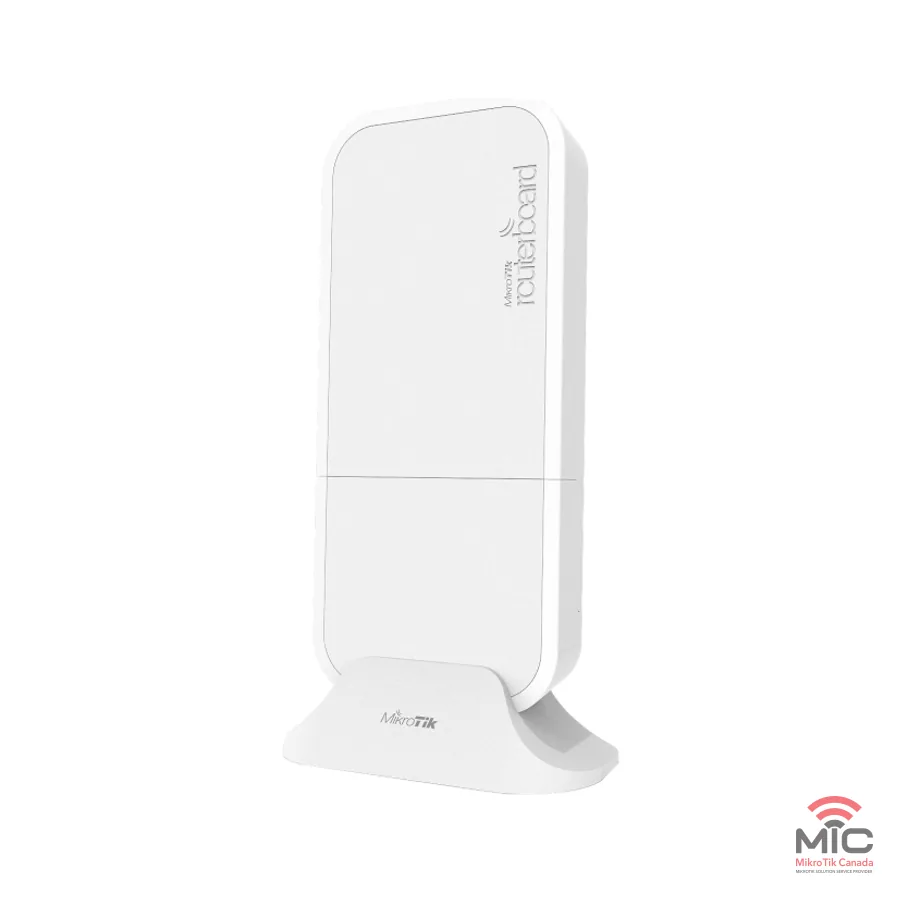

wAP LTE kit (wAPR-2nD&EC200A-EU)

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.

Product code: wAPR-2nD&EC200A-EU (MikroTik also lists hardware revision wAPR-2nD&EC200A-EUr2)

USD 99.00MikroTik list priceMikroTik list prices in USD, snapshot of 2026-10-03. CAD amounts use the manual rate 1 USD = 1.48 CAD, effective 2026-10-03. Taxes and shipping are not included.
CurrencyPrices are MikroTik list prices in USD; CAD uses the configured manual rate when one exists. Taxes and shipping are not included.

LTE/5G products: Fast Ethernet ports, PoE input, Wi-Fi 4 or earlier.

View in the MikroTik Canada store

Availability: see the store.

Manufacturer page

Specifications

ItemValue
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
RouterOS license4
Operating SystemRouterOS v7
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 60°C
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, E-MARK, EAC, ROHS
IP54

Powering

ItemValue
Number of DC inputs3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage9-30 V
Automotive input Voltage9-30 V
Max power consumption7 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage9-30 V

Ethernet

ItemValue
10/100 Ethernet ports1

Peripherals

ItemValue
Number of SIM slots1 Modem (Mini SIM)
MiniPCI-e slots1

Wireless

ItemValue
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2
Wireless 2.4 GHz chip modelQCA9531
Wireless 2.4 GHz generationWi-Fi 4

Mobile

ItemValue
2G CategoryClass12
2G bands3 (1800MHz) 8 (900MHz)
3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands1 (2100MHz) 5 (850MHz) 8 (900MHz)
LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz)
LTE TDD bands38 (2600MHz) 40 (2300MHz) 41n (2500MHz)
TAC86314105

Benchmarks

Ethernet test results: QCA9531 100M one port test

ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)8.198.423.596.3173.688.9
Bridging25 bridge filter rules8.198.423.596.370.936.3
Routingnone (fast path)8.198.423.596.3160.882.3
Routing25 simple queues8.198.423.596.390.846.5
Routing25 ip filter rules8.198.423.596.343.222.1

MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.

Included in the box

As listed by MikroTik. These come with the product and are not ordered separately.

  • 24V 0.8A power adapter
  • K-52 fastening set
  • K-50 locking set
  • wAP desktop stand
  • wAP ceiling mount bracket
  • 0.35m 4pin Automotive adapter cable
  • wAP mount
  • PoE injector
  • Plastic zip tie

Optional purchases (sold separately)

No separately orderable accessories were matched to this product in the catalogue. Accessories and spare parts are in the Accessories group and in the store.

Documents

Datasheets and brochures

Guides and manuals

Diagrams and dimensions

Certificates and compliance

Other documents

Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
