FTC11XG

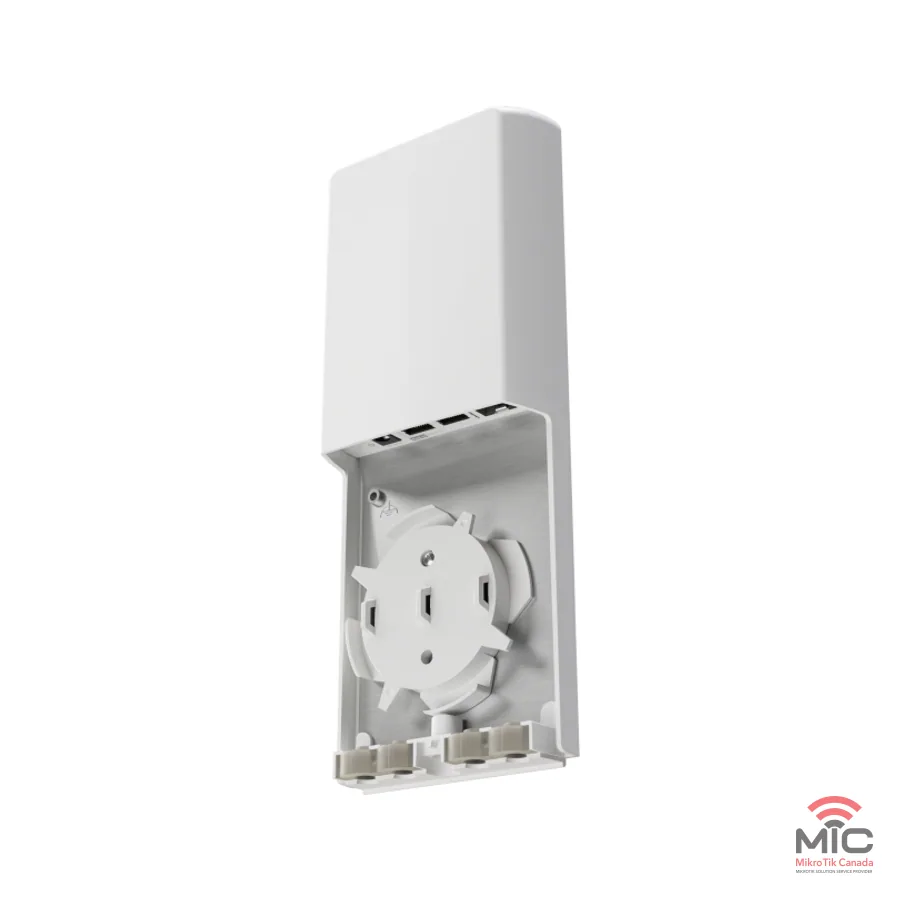

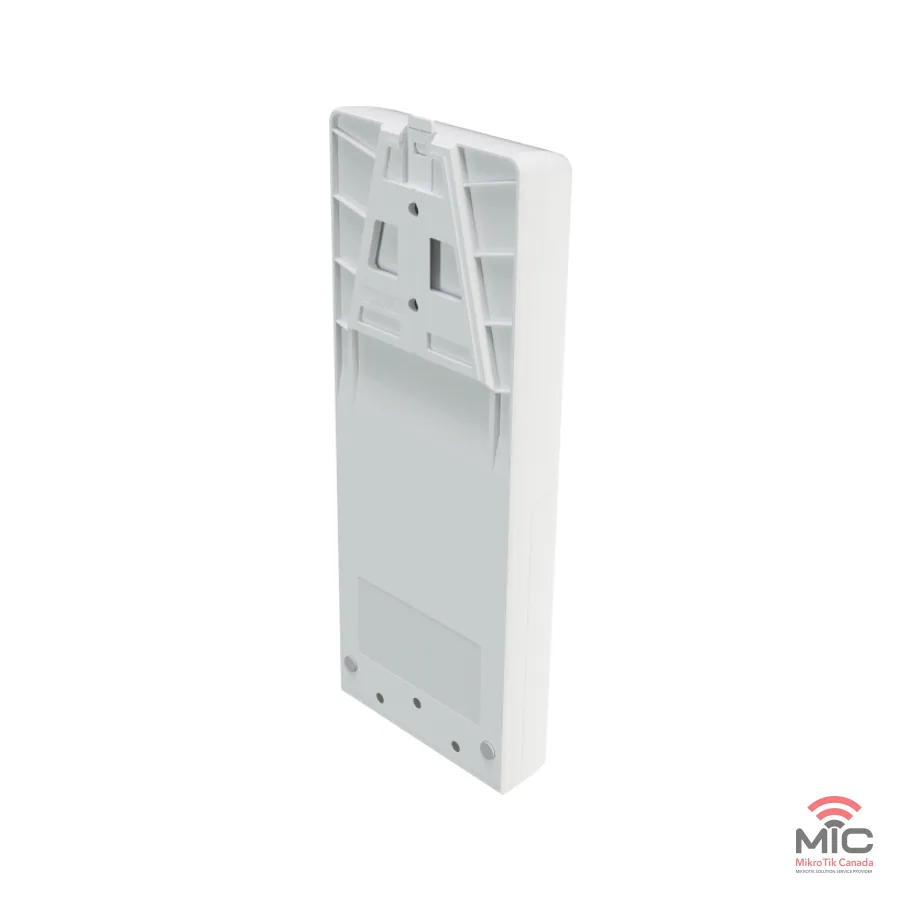

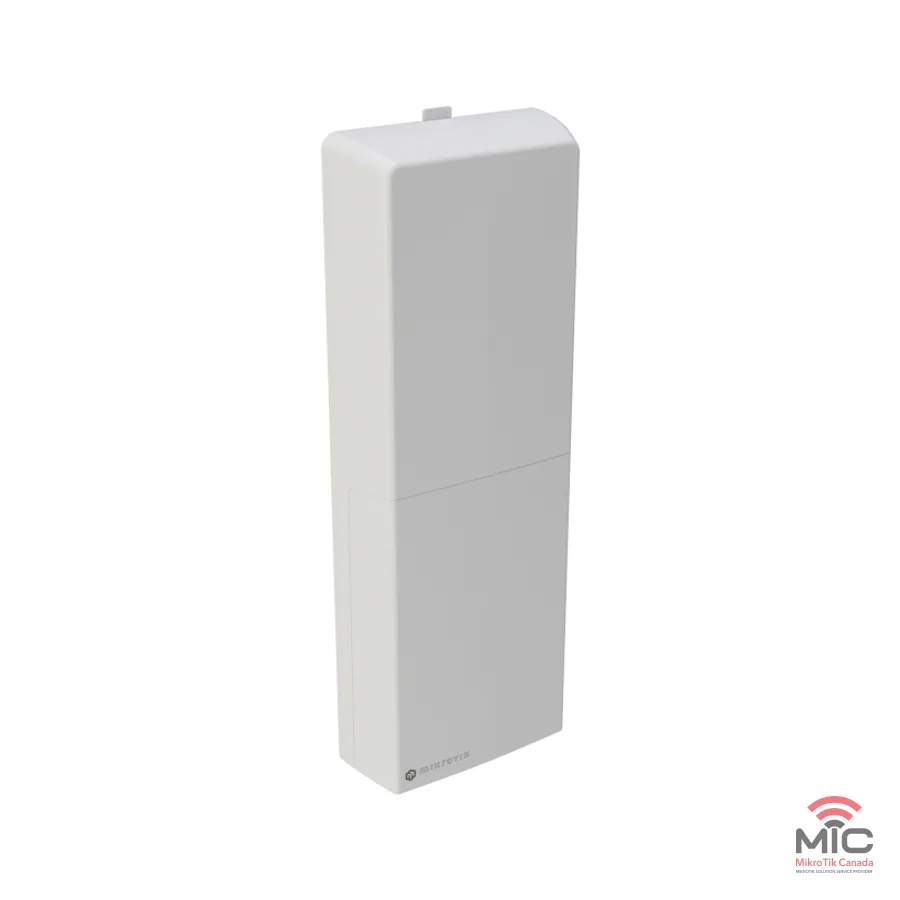

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: FTC11XG
Accessories: Gigabit Ethernet ports, 10 Gbit/s Ethernet ports, SFP+ cages.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | 88E6193 |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| CPU temperature monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 55 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 10 W |
| Max power consumption without attachments | 9 W |
| PoE in | 802.3 bt |
| Cooling type | Passive |
| PoE in input Voltage | 43-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G/2.5G/5G/10G Ethernet ports | 1 |
Fibre
| Item | Value |
|---|---|
| SFP+ ports | 1 |
Benchmarks
Switching results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 1625.5 | 19739.9 | 4699.2 | 19248.1 | 29761.9 | 15238.1 |
| Switching | Non blocking Layer 2 capacity | 1625.5 | 39479.8 | 4699.2 | 38496.2 | 29761.9 | 30476.2 |
| Switching | Non blocking Layer 1 throughput | 1625.5 | 20000 | 4699.2 | 20000 | 29761.9 | 20000 |
| Switching | Non blocking Layer 1 capacity | 1625.5 | 40000 | 4699.2 | 40000 | 29761.9 | 40000 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- K-81 fastening set
- 48 V 0.95 A power adapter
- Gigabit PoE injector
Optional purchases (sold separately)
RBFTC11 · RBFTC11
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Other documents
- Mount 3D model (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
