FTC21-ups

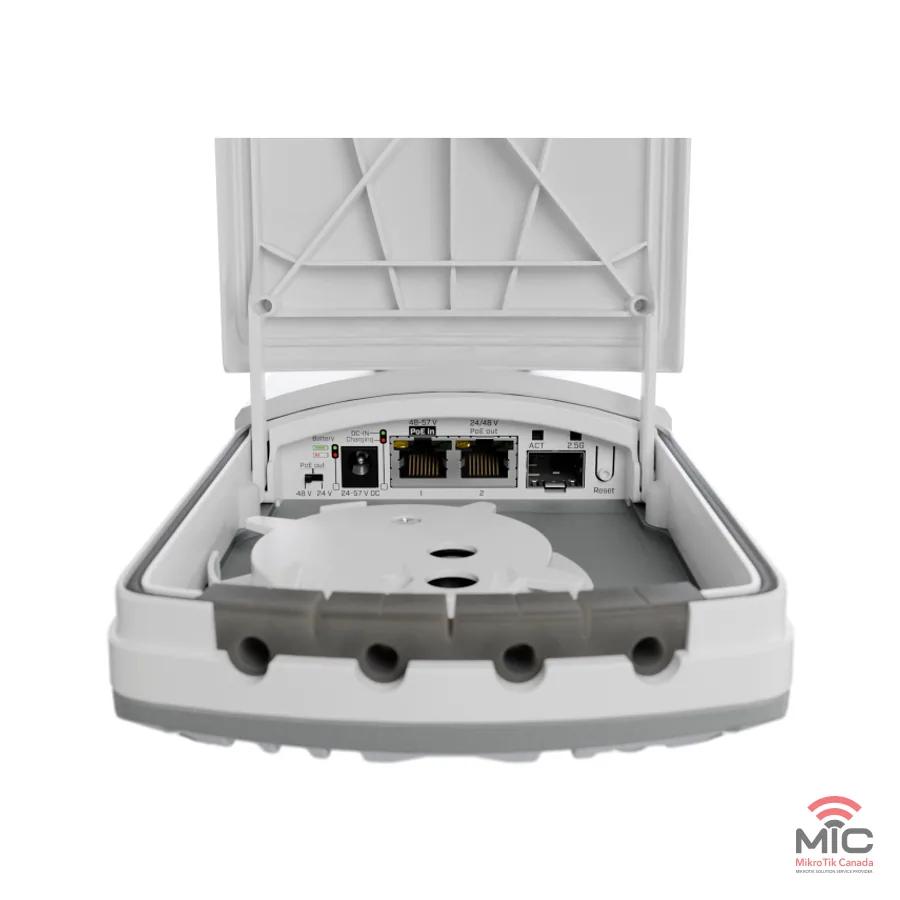

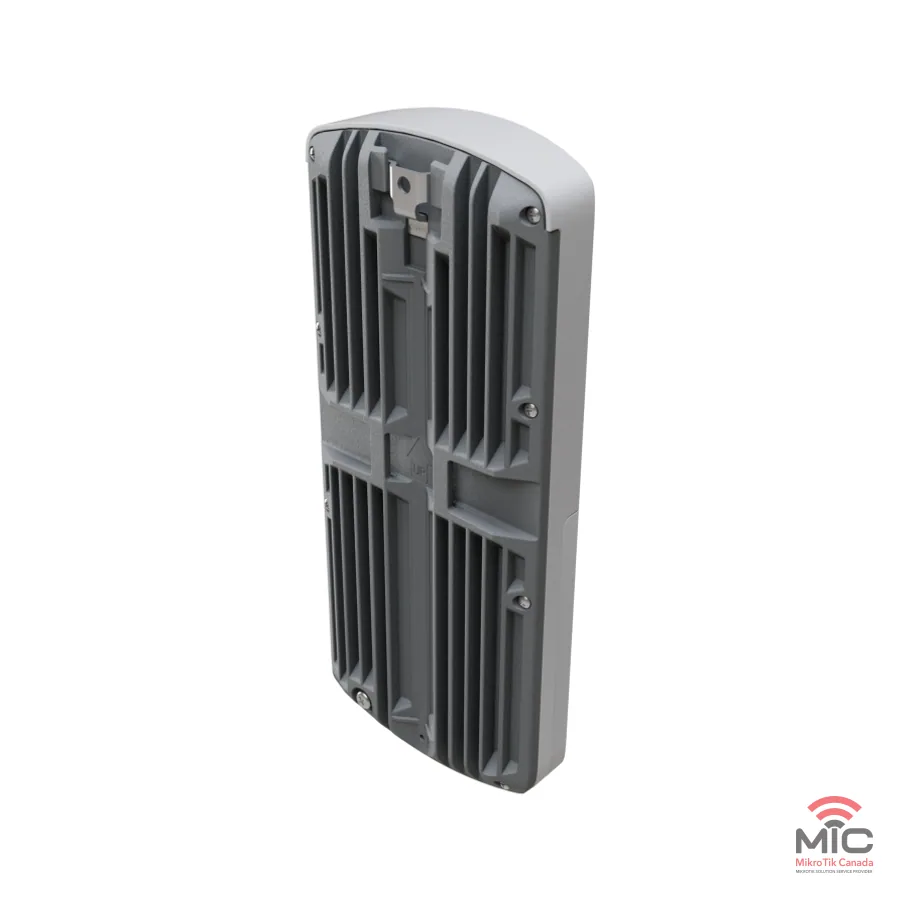

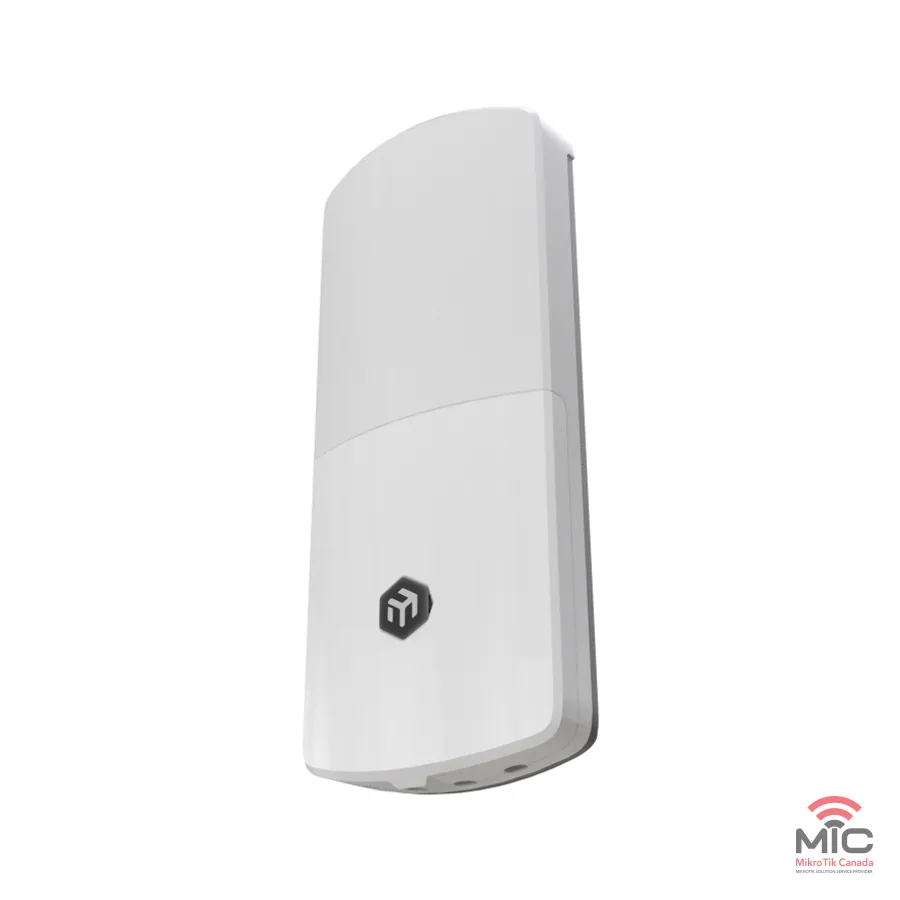

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: FTC21-ups
Accessories: Gigabit Ethernet ports, SFP cages, PoE output.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | 88E6341 |
| Tested ambient temperature | -40°C to 70°C |
| Tested ambient temperature | -40°C to 70°C |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| PCB temperature monitor | Yes |
| Certification | CE, EAC, ROHS |
| IP | 67 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-57 V |
| Max power consumption | 28 W |
| Max power consumption without attachments | 3 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 48-57 V |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 0.625 A |
| High voltage PoE-Out current limit | 0.315 A |
| Max total out (A) | 0.625 A |
| Total output current | 0.625 |
| Total output power | 15 |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fibre
| Item | Value |
|---|---|
| SFP ports | 1 (2.5G supported) |
Benchmarks
Switching results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000 | 939.8 | 4000 | 5952.4 | 4000 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000 | 939.8 | 8000 | 5952.4 | 8000 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- K-95 kit
- 48 V 0.95 A power adapter
- Gigabit PoE injector
- Hose clamp 1
Optional purchases (sold separately)
FTC21 · FTC21
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
