FTC21

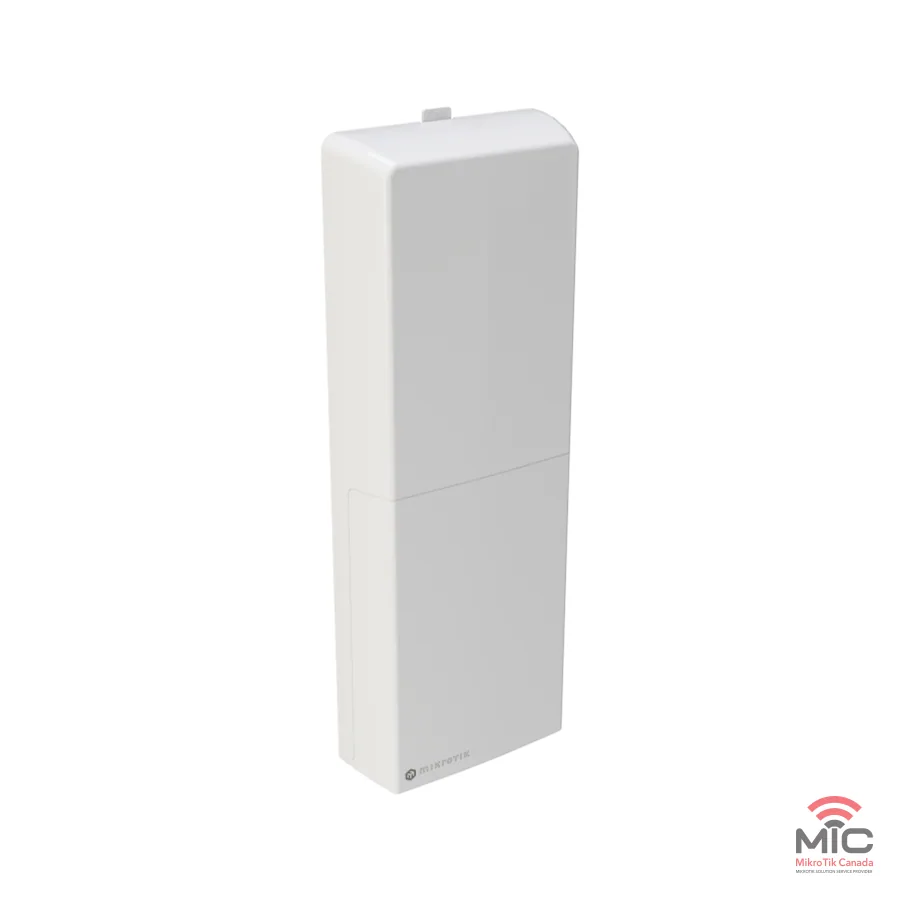

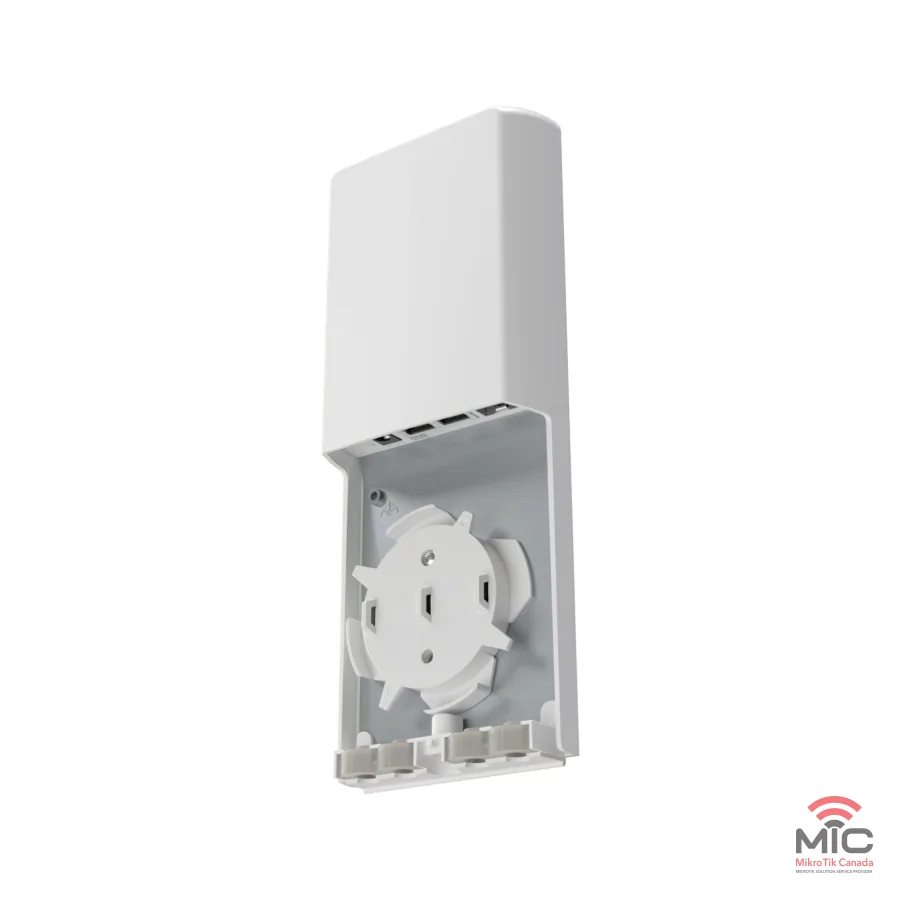

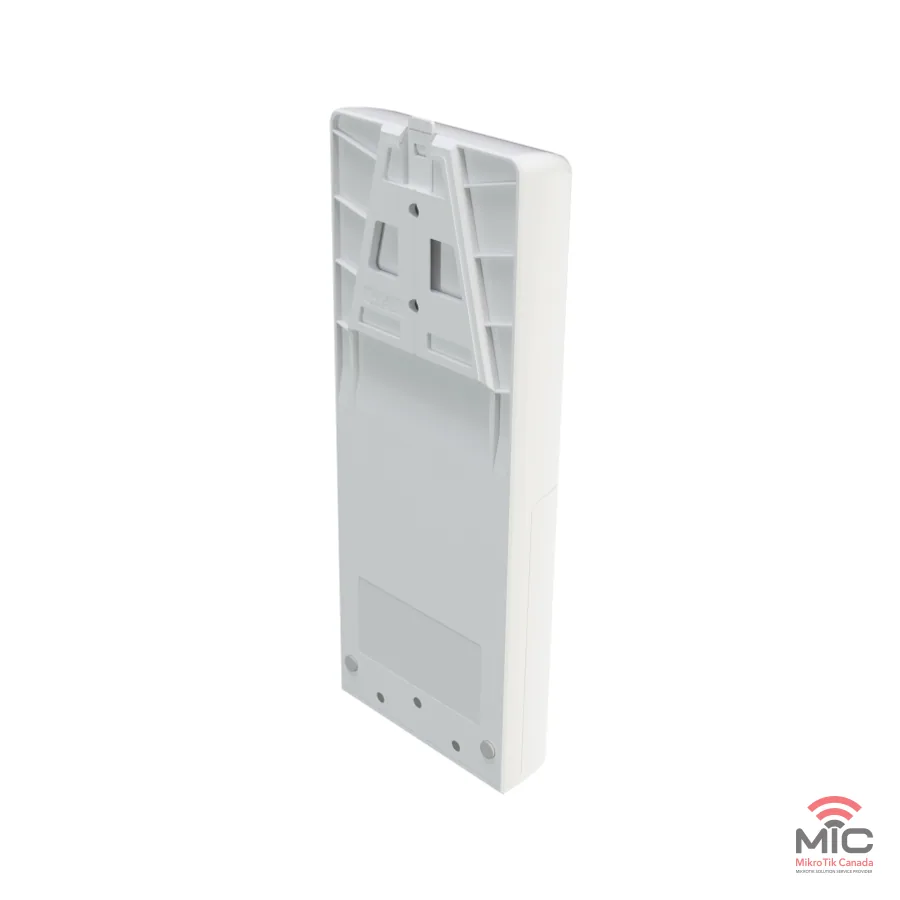

Photographs: MikroTik Canada store, standardised on a white canvas with the MikroTik Canada watermark. Originals and permissions are recorded.
Product code: FTC21
Accessories: Gigabit Ethernet ports, SFP cages, PoE input.
Availability: see the store.
Specifications
| Item | Value |
|---|---|
| Switch chip model | 88E6341 |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Certification | CE, EAC, ROHS |
| IP | 55 |
Powering
| Item | Value |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-57 V |
| Max power consumption | 4 W |
| Max power consumption without attachments | 3 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 24-57 V |
Ethernet
| Item | Value |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Fibre
| Item | Value |
|---|---|
| SFP ports | 1 (2.5G supported) |
Benchmarks
Switching results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000 | 939.8 | 4000 | 5952.4 | 4000 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000 | 939.8 | 8000 | 5952.4 | 8000 |
MikroTik states that results show maximum performance in the stated test configuration and that other configurations most likely give lower results. Source: MikroTik official product page, retrieved 2026-10-02.
Included in the box
As listed by MikroTik. These come with the product and are not ordered separately.
- K-81 fastening set
- Gigabit PoE injector
- 48 V 0.95 A power adapter
Optional purchases (sold separately)
FTC21-ups · FTC21-ups
Documents
Datasheets and brochures
- Brochure (MikroTik)
Guides and manuals
- Quick Guide (MikroTik)
- User manual (MikroTik)
Diagrams and dimensions
- Block Diagram (MikroTik)
Certificates and compliance
- Declaration of conformity (MikroTik)
Source: MikroTik official product page, retrieved 2026-10-02. Items MikroTik does not list are unknown, not zero.
